Myford MG-12HA Hydraulic Cylindrical Grinder

Type:

GRINDERS, CYLINDRICAL, PLAIN

Manufacturer:

MYFORD

Model:

MG-12HA

Condition:

Used - Good

Stock #:

38602

Status:

Sold

Description:

hyd table 5"x12"

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

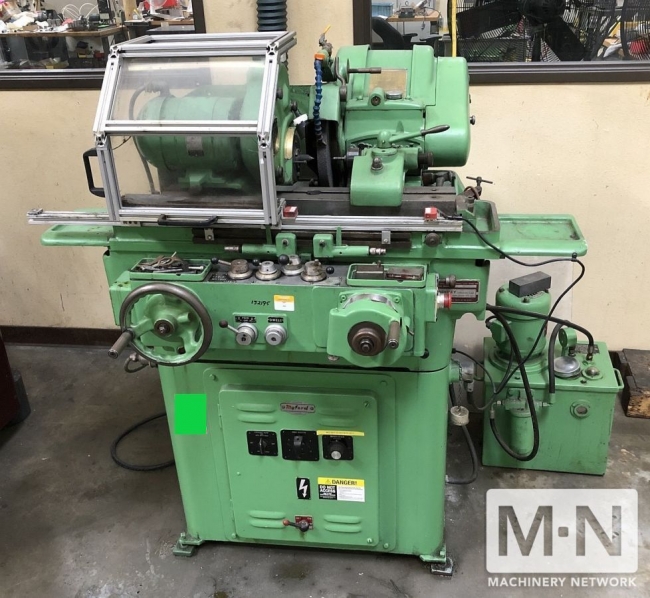

(1) Used 5" x 12" Myford MG-12HA Precision Cylindrical Grinder
s/n HA76388, New 1970

Specifications:
Swing over table ............... 5"
Distance between centers ....... 12"
Max. diameter ground ........... 3"
Max. table travel .............. 13.5"
Table swivel ................... 7 degrees
Wheel head
- Total travel ................. 3 7/8"
- Auto infeed .................. 0.0002 - .002"
Wheelhead graduations .......... 0.0001"
Fine feed travel to dead stop .. 0.000025"
Grinding wheel dimensions ...... 12" x 1.5" x 5"
Grinding wheel speeds .......... 1830 & 1988 RPM
Grinding wheel motor............ 3 HP
Work head speeds ............... 75 - 780 RPM
Work head motor ................ 1/3 HP
Work head collet capacity ...... 3/4"
Approximate weight ............. 2000 LBS

Equipped with:
Hydraulic table traverse & automatic infeed
Collet closer
Coolant system
Splash guard
Manual

Inspect in City of Industry, CA
