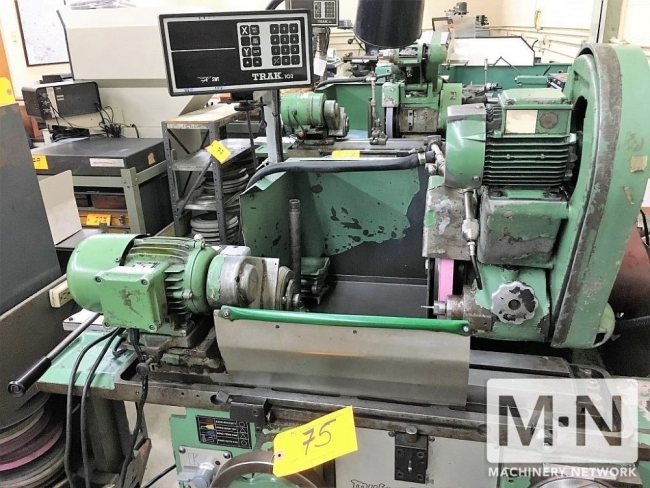

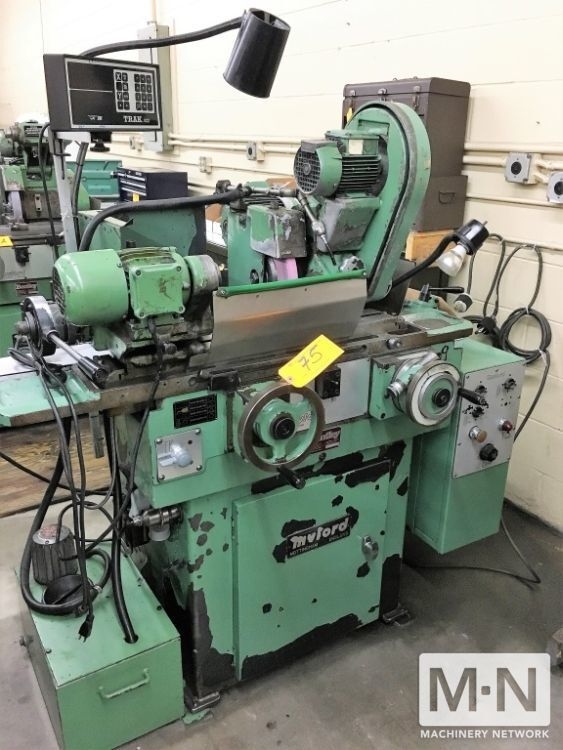

Myford MG-12M Cylindrical grinder with ID spindle

Type:

GRINDERS, CYLINDRICAL, PLAIN

Manufacturer:

MYFORD

Model:

MG-12M

Condition:

Not Specified

Year:

1982

Stock #:

36770

Status:

For Sale

Description:

5" x 12", Hand feed, ID spindle, DRO,

Location:

New Jersey, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) Used 5" x 12" Myford MG-12M Precision Cylindrical Grinder
s/n 153803, New 1982

Specifications:
Swing over table ................... 5"
Distance between centers ........... 12"
Max. diameter ground ............... 3"
Max. table travel .................. 13.5"
Table swivel ....................... 7 degrees
Table travel per hand wheel rev. ... 0.7" - 2.4"
Wheelhead graduations .............. 0.0001"
Fine feed travel to dead stop ...... 0.000025"
Grinding wheel speeds .............. 1830 & 1988 RPM
Grinding wheel dimensions .......... 12" x 1.5" x 5"
Grinding wheel motor................ 3 HP
Work head speeds ................... 50 - 900 RPM
Work head motor .................... 1/3 HP
Work head collet capacity .......... 3/4"
Approximate weight ................. 2000 LBS

EQUIPPED WITH:

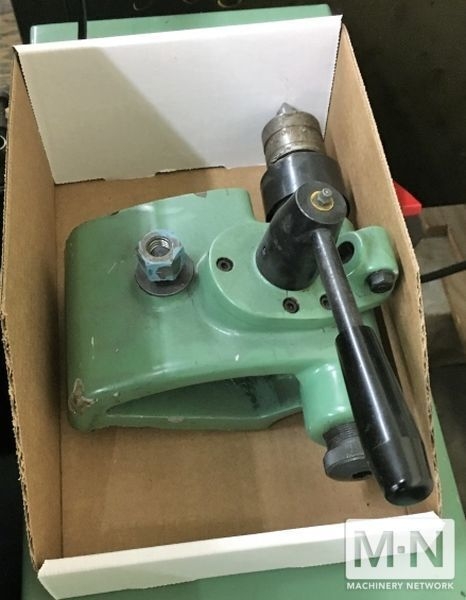

Swing down ID grinding attachment

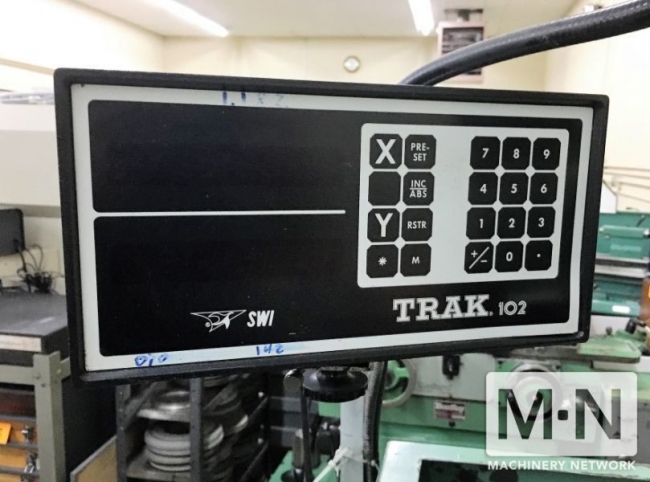

Southwest Industries 2-Axis DRO
Tailstock
Collet closer
Coolant system
Work light

Inspect in New Jersey
