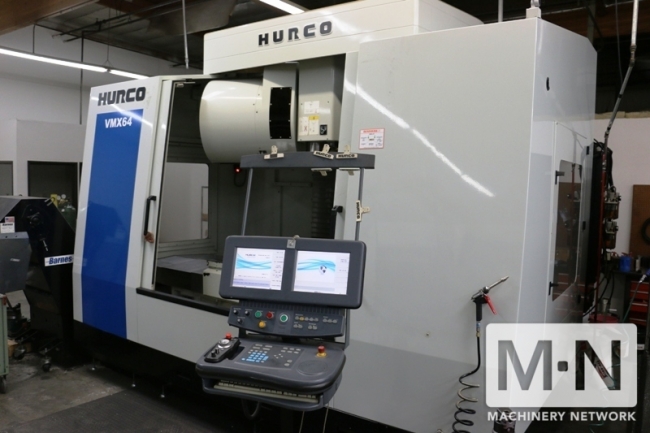

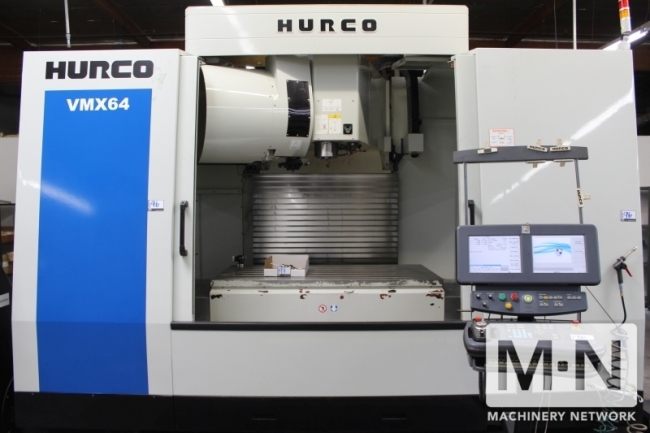

HURCO VMX-64

Type:

Vertical Machining Centers

Manufacturer:

HURCO

Model:

VMX-64

Condition:

Not Specified

Year:

2012

Stock #:

37040

Status:

Sold

Description:

Winmax ctrl, 64” x 34” x 30” travels, 4th axis, Coolant thru Spindle

Videos:

Product Video #1

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED HURCO VMX64 4 AXIS VERTICAL MACHINING CENTER
NEW 2012 - Only 1,400 Hours
SPECIFICATIONS:
TABLE SIZE.......................66" X 35"
X AXIS TRAVEL....................64"
Y AXIS TRAVEL....................34"
Z AXIS TRAVEL....................30"
MAX WEIGHT ON TABLE..............6,000 LBS
SPINDLE MOTOR....................24 HP
SPINDLE SPEED....................10,000 RPM
SPINDLE TAPER....................CAT 40
ATC..............................24
MAX FEEDRATE.....................530 IPM
RAPIDS X/Y, Z....................709/530 IPM
FLOORSPACE REQUIRED..............249" X 179" X 128"
MACHINE WEIGHT...................30,415 LBS

EQUIPPED WITH:

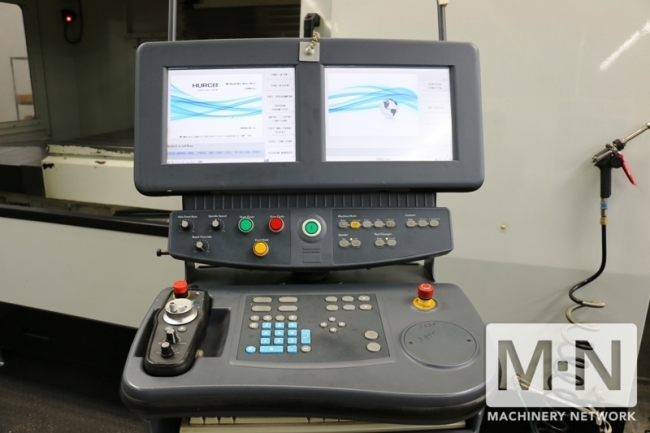

HURCO WINMAX DAUL SCREEN CONTROL
MINI ITX CARD RACK W/ THE FOLLOWING SOFTWARE OPTIONS:
WINMAX CLASSIC
TOOL AND MATERIAL LIBRARY
ULTIPOCKET
TOOL AND PART PROBING (RENISHAW OMP-40 PART PROBE)
DXF TRANSFER
NC CONVERSATIONAL MERGE
SPINDLE CHILLER
4TH AXIS INTERFACE: YASKAWA SIGMA5 SERVO DRIVE SYSTEM
COOLANT THRU THE SPINDLE - 300PSI
CHIP CONVEYOR SYSTEM
ALL AVAILABLE MANUALS
