HURCO VMX 64/40
Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
VMX 64/40
Condition:
Not Specified
Year:
2004
Stock #:
27772
Status:
Sold
Description:
WINMAX CNC CTRL, 64"x34"x30", CAT40, 10000RPM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

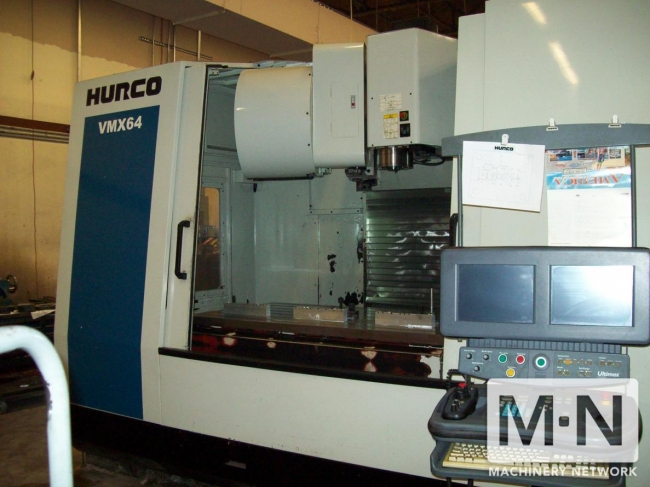

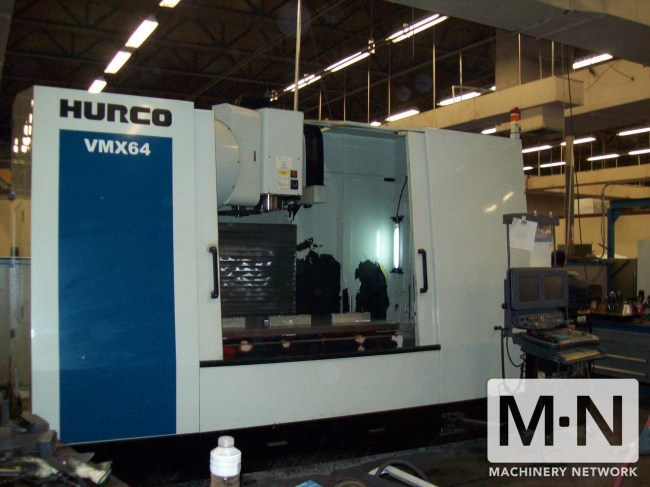

(1) HURCO VMX 64/40 CNC VERTICAL MACHINING CENTER
NEW: 2004
SPECIFICATIONS:
TABLE WORKING SURFACE: 66"x35"
TRAVELS:
X-AXIS: 64"
Y-AXIS: 34"
Z-AXIS: 30"
TOOL CAPACITY: 24 TOOLS
SPINDLE TAPER: CAT 40
SPINDLE MOTOR: 24 HP
SPINDLE SPEED: 10,000 RPM
MAX TABLE WEIGHT: 6000 LBS
SPINDLE TORQUE: 210 ft-lbs @ 600 rpm
RAPID TRAVERSE X,Y AXIS: 709 IPM
RAPID TRAVERSE Z AXIS: 530 IPM
POSITIONING/REPEATABILITY: ±0.0002" / 0.0001"
EQUIPPED WITH:
WINMAX ULTRA POCKET SOFTWARE
ULTRADRAW DXF CONVERTER
SWING ARM ATC
FOOTPRINT (WxD) 155"x104"
WEIGHT (lbs) 32,000
HOURS ON MACHINE: 7055
NEW: 2004
SPECIFICATIONS:
TABLE WORKING SURFACE: 66"x35"
TRAVELS:
X-AXIS: 64"
Y-AXIS: 34"
Z-AXIS: 30"
TOOL CAPACITY: 24 TOOLS
SPINDLE TAPER: CAT 40
SPINDLE MOTOR: 24 HP
SPINDLE SPEED: 10,000 RPM
MAX TABLE WEIGHT: 6000 LBS
SPINDLE TORQUE: 210 ft-lbs @ 600 rpm
RAPID TRAVERSE X,Y AXIS: 709 IPM
RAPID TRAVERSE Z AXIS: 530 IPM
POSITIONING/REPEATABILITY: ±0.0002" / 0.0001"
EQUIPPED WITH:
WINMAX ULTRA POCKET SOFTWARE
ULTRADRAW DXF CONVERTER
SWING ARM ATC
FOOTPRINT (WxD) 155"x104"
WEIGHT (lbs) 32,000
HOURS ON MACHINE: 7055
