DMG DMU70
Type:
Vertical Machining Centers
Manufacturer:
DMG
Model:
DMU70
Condition:
Not Specified
Year:
2004
Stock #:
36921
Status:
Sold
Description:
29"x20"x20", W/ TRANSFORMER MP 10 PROBE, BLUM LASER PROBE
Videos:
Location:
New Jersey, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

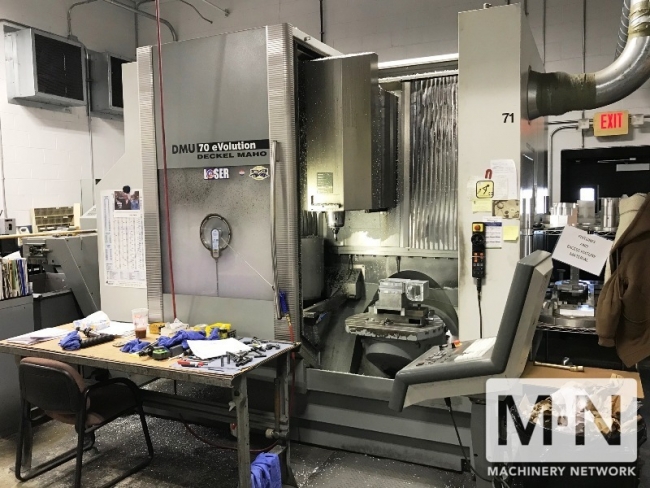

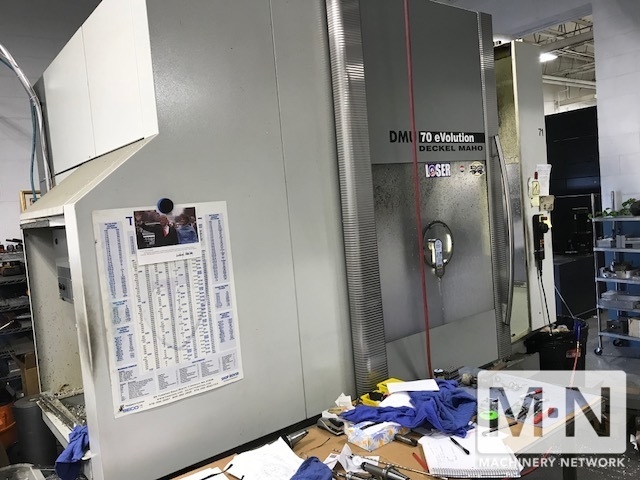

(1) USED DMU 70 EVOLUTION 5 AXIS VERTICAL MACHINING CENTER
NEW 2004
SPECIFICATIONS:
TRAVELS - X AXIS 29"
- Y AXIS 20"
- Z AXIS 20"

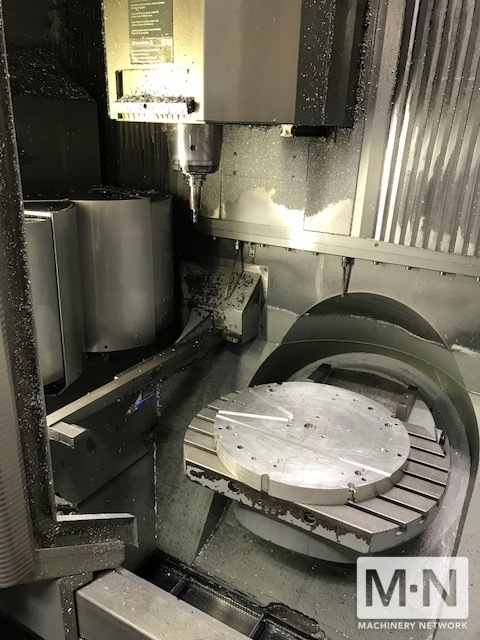

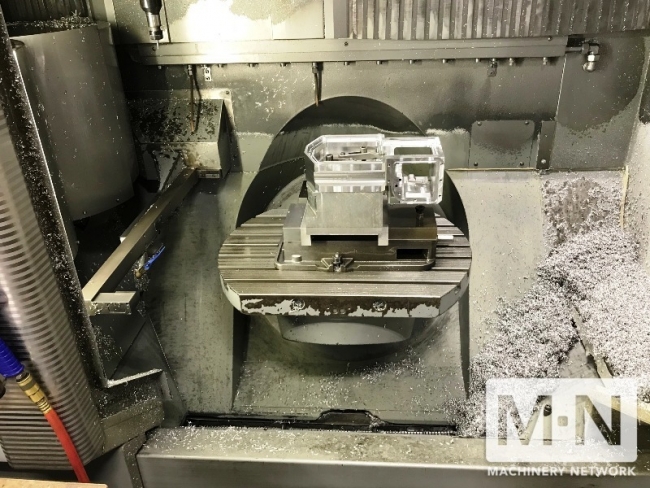

- B AXIS 0 - 180 DEG.
TABLE DIMENISONS 27" X 19.6"

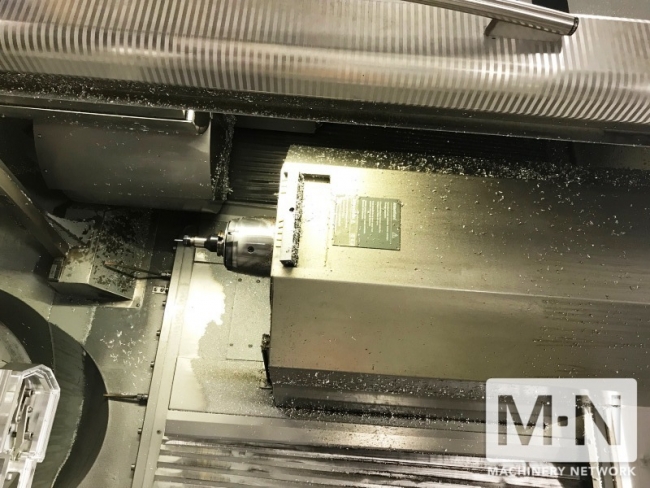

MAX SPINDLE SPEED 18,000 RPM
SPINDLE TAPER CAT 40
TOOL CHANGER CAPACITY 60 TOOLS
RAPID FEED X,Y,Z 1969 IPM
MAX TORQUE ROTARY AXIS 1674 NM

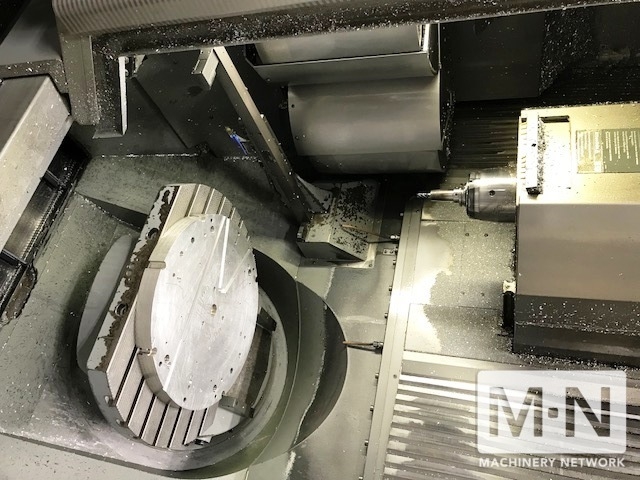

MAX SWIVEL TABLE CAPACITY 771 LBS.
EQUIPPED WITH:

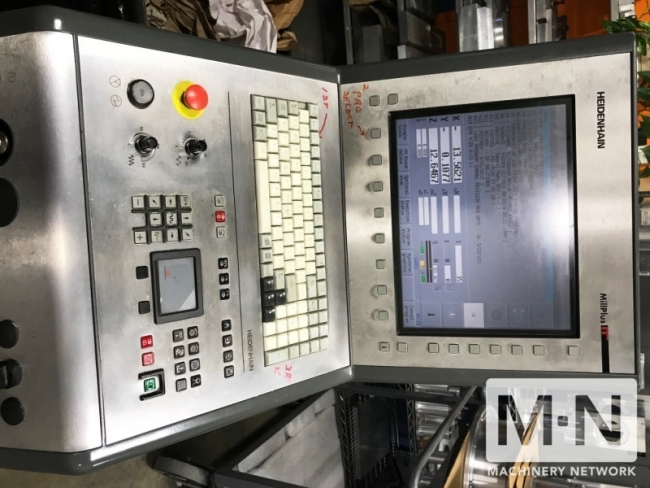

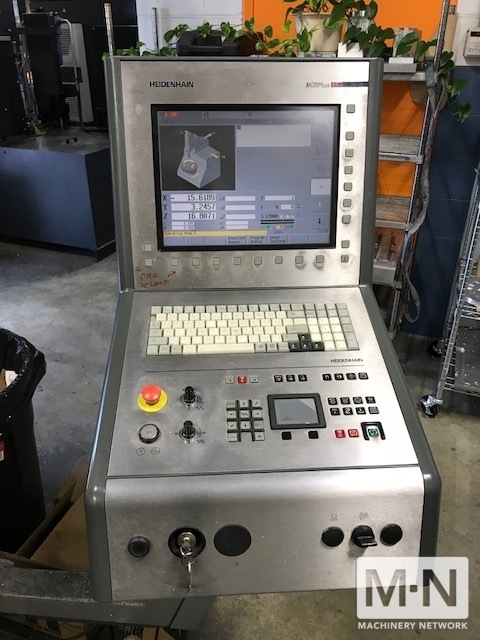

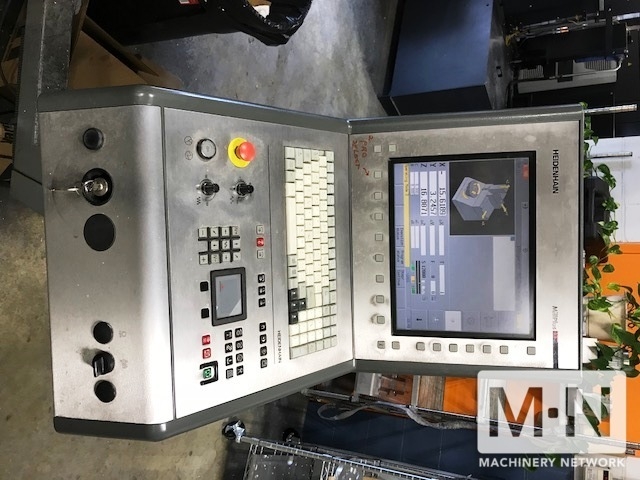

HEIDENHAN MILLPLUS IT CONTROL
COOLANT THRU THE SPINDLE - 600 PSI
MP10 PROBE & BLUM LASER PROBE

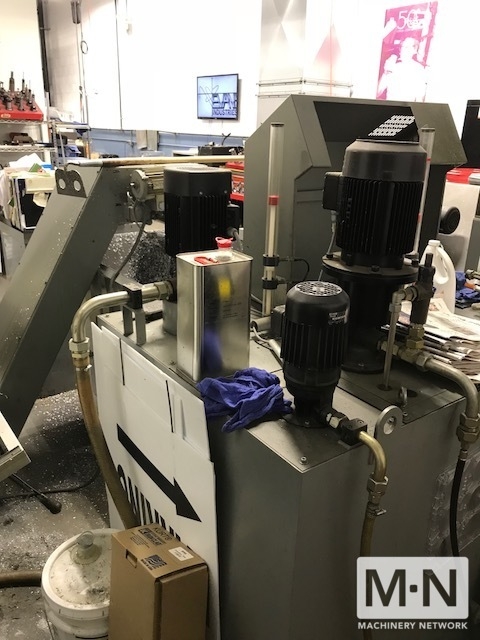

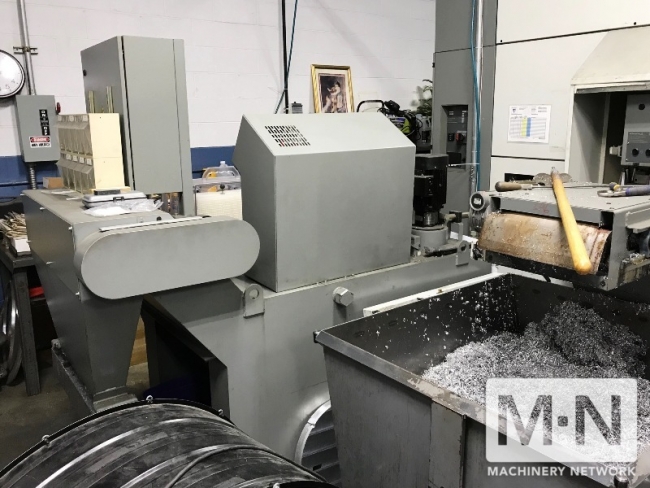

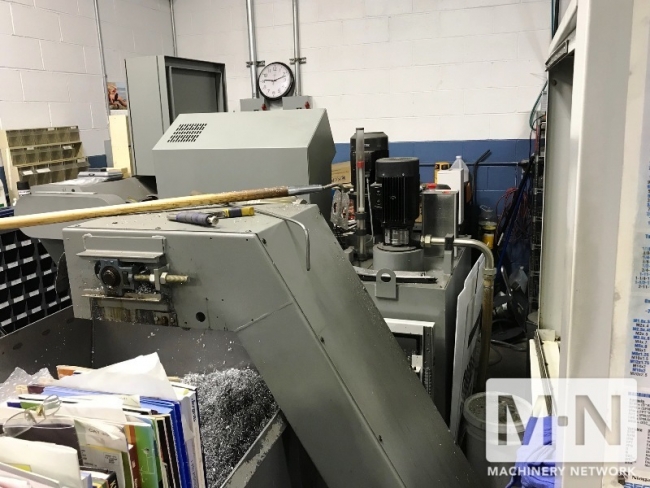

FILTRATION SYSTEM
TRANSFORMER
LINEAR GLASS SCALES
CAN BE INSPECTED UNDER POWER
NEW SPINDLE PUT IN LAST YEAR WITH 14,890 HRS.

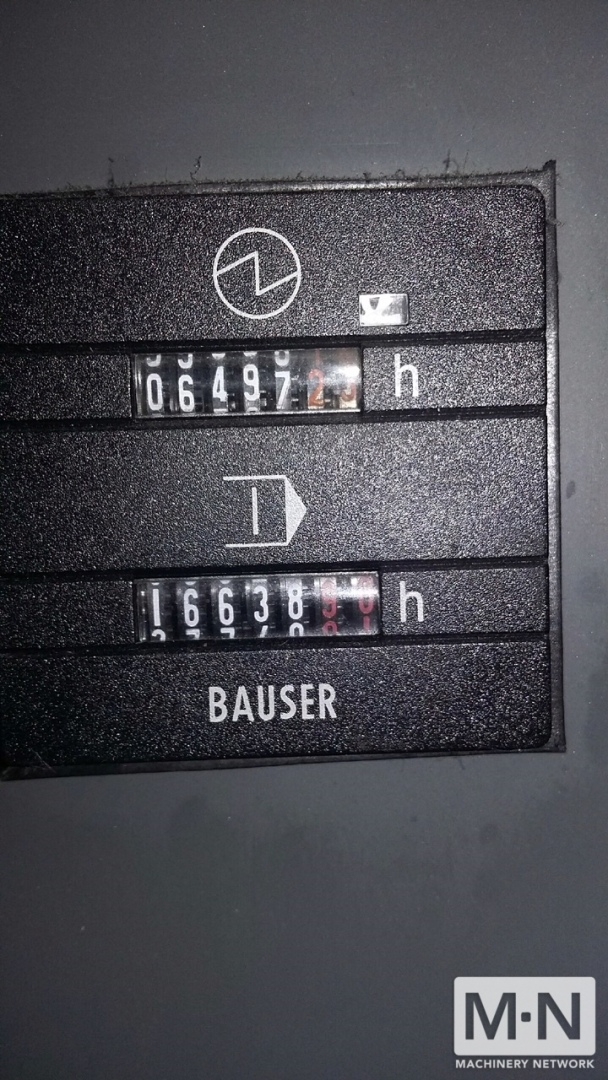

CURRENT SPINDLE HOUR: 16,638
NEW 2004
SPECIFICATIONS:
TRAVELS - X AXIS 29"
- Y AXIS 20"
- Z AXIS 20"
- B AXIS 0 - 180 DEG.
TABLE DIMENISONS 27" X 19.6"
MAX SPINDLE SPEED 18,000 RPM
SPINDLE TAPER CAT 40
TOOL CHANGER CAPACITY 60 TOOLS
RAPID FEED X,Y,Z 1969 IPM
MAX TORQUE ROTARY AXIS 1674 NM
MAX SWIVEL TABLE CAPACITY 771 LBS.
EQUIPPED WITH:
HEIDENHAN MILLPLUS IT CONTROL
COOLANT THRU THE SPINDLE - 600 PSI
MP10 PROBE & BLUM LASER PROBE
FILTRATION SYSTEM
TRANSFORMER
LINEAR GLASS SCALES
CAN BE INSPECTED UNDER POWER
NEW SPINDLE PUT IN LAST YEAR WITH 14,890 HRS.
CURRENT SPINDLE HOUR: 16,638
