DMG DMU 40 EVO
Type:
Vertical Machining Centers
Manufacturer:
DMG
Model:
DMU 40 EVO
Condition:
Not Specified
Year:
2015
Stock #:
36271
Status:
Sold
Description:
5-AXIS, SIEMENS 840D, APC, 15"X15"X14", B & C AXIS (2) 15" PLLTS,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

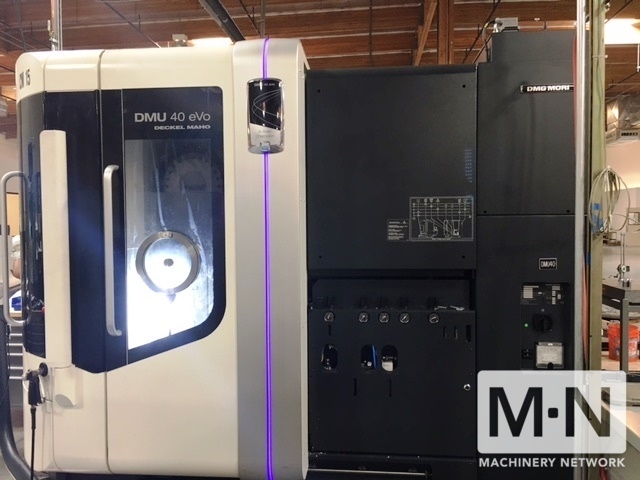

(1) USED DMG MORI 40 EVO LINEAR W/ APC 5-AXIS UNIV. MILLING MACHINE
NEW 2015
SPECIFICATIONS:
WORK AREA
X-AXIS ................................15.7"
Y-AXIS ................................15.7"
Z-AXIS ...............................14.8"
TABLE LOAD ............................551.2 LBS.
B-AXIS SWIVEL RANGE ...................–5 / +110 DEG.
C-AXIS ROTATION RANGE .................360 DEG.
DISTANCE FROM SPINDLE NOSE TO TABLE ....4.9" - 19.7"
MAIN DRIVE
AC MOTOR SPINDLE HSK-A63 .............18,000 RPM
DRIVE POWER (40 / 100% DC).............46.9 / 33.5 HP
TORQUE (40 / 100% DC) .................95.9 / 64.2 FT/LBS
FEED DRIVES
STANDARD VERSION X / Y / Z .............1,968.50 IPM
DYNAMIC VERSION X / Y / Z*..............3,149.60 IPM
NC SWIVEL ROTARY TABLE
PALLET WORKING SURFACE ...............17.7" X 15.7"
B- / C-AXIS SPEED ......................60 / 60 RPM
MILLING / TURNING TABLE SPEED...........1,200 RPM
TOOL STORAGE
TOOL STORAGE............................120 POCKETS
EQUIPPED WITH:
3D-CONTROL SIEMENS 840D SL
PALLET CHANGER 400X400MM (INCLUDES 2 PALLETS)
NC SWIVEL ROTARY TABLE
RENISHAW PP60 TOUCH PROBE
LASER TOOL MEASUREMENT L & D SWIVELING
3D QUICK SET

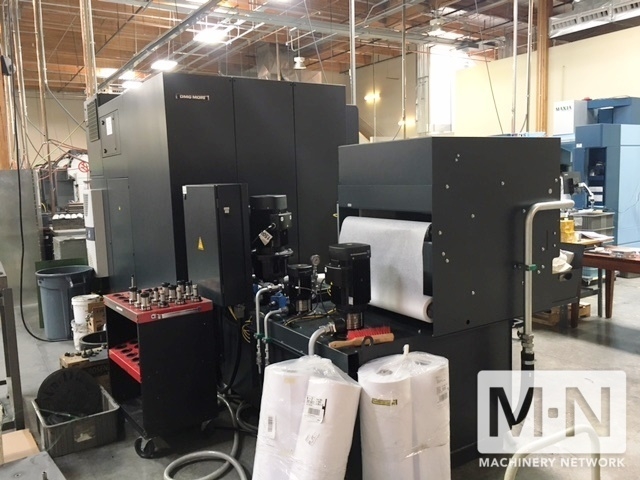

SWARF CONVEYOR, SCRAPER TYPE
EXTENDED SWARF FLUSHING FOR PALLET MACHINE
SPRAY GUN
OIL & MIST SEPARATOR
PROGRAMMABLE COOLANT NOZZLE
AIR BLAST THRU SPINDLE
ELECTRONIC HANDWHEEL
HIGH SPEED SETTINGS
PACKAGE MILL/TURN
NC-MILL-TURN TABLE 450C450MM
C AXIS DIRECT DRIVE, 1,200 RPM
**TOOLING**
INCLUDES ALL HSK TOOLING PURCHASED WITH MACHINE
NEW 2015
SPECIFICATIONS:
WORK AREA
X-AXIS ................................15.7"
Y-AXIS ................................15.7"
Z-AXIS ...............................14.8"
TABLE LOAD ............................551.2 LBS.
B-AXIS SWIVEL RANGE ...................–5 / +110 DEG.
C-AXIS ROTATION RANGE .................360 DEG.
DISTANCE FROM SPINDLE NOSE TO TABLE ....4.9" - 19.7"
MAIN DRIVE
AC MOTOR SPINDLE HSK-A63 .............18,000 RPM
DRIVE POWER (40 / 100% DC).............46.9 / 33.5 HP
TORQUE (40 / 100% DC) .................95.9 / 64.2 FT/LBS
FEED DRIVES
STANDARD VERSION X / Y / Z .............1,968.50 IPM
DYNAMIC VERSION X / Y / Z*..............3,149.60 IPM
NC SWIVEL ROTARY TABLE
PALLET WORKING SURFACE ...............17.7" X 15.7"
B- / C-AXIS SPEED ......................60 / 60 RPM
MILLING / TURNING TABLE SPEED...........1,200 RPM
TOOL STORAGE
TOOL STORAGE............................120 POCKETS
EQUIPPED WITH:
3D-CONTROL SIEMENS 840D SL
PALLET CHANGER 400X400MM (INCLUDES 2 PALLETS)
NC SWIVEL ROTARY TABLE
RENISHAW PP60 TOUCH PROBE
LASER TOOL MEASUREMENT L & D SWIVELING
3D QUICK SET
SWARF CONVEYOR, SCRAPER TYPE
EXTENDED SWARF FLUSHING FOR PALLET MACHINE
SPRAY GUN
OIL & MIST SEPARATOR
PROGRAMMABLE COOLANT NOZZLE
AIR BLAST THRU SPINDLE
ELECTRONIC HANDWHEEL
HIGH SPEED SETTINGS
PACKAGE MILL/TURN
NC-MILL-TURN TABLE 450C450MM
C AXIS DIRECT DRIVE, 1,200 RPM
**TOOLING**
INCLUDES ALL HSK TOOLING PURCHASED WITH MACHINE
