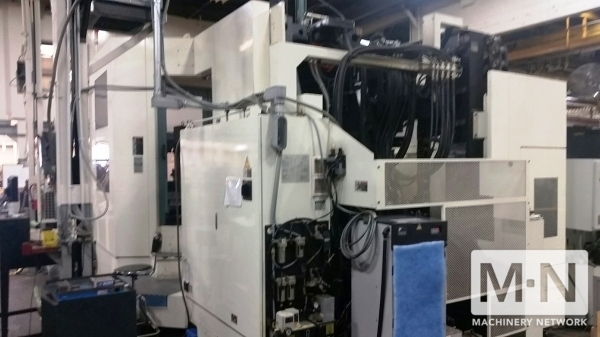

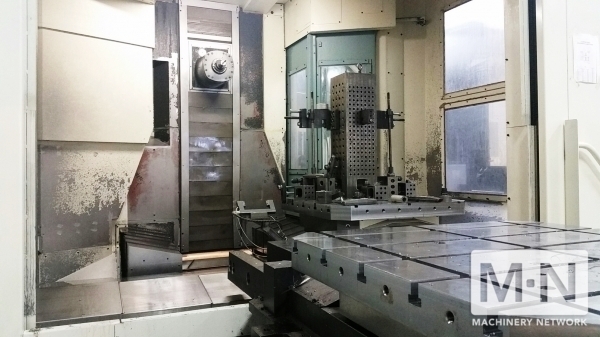

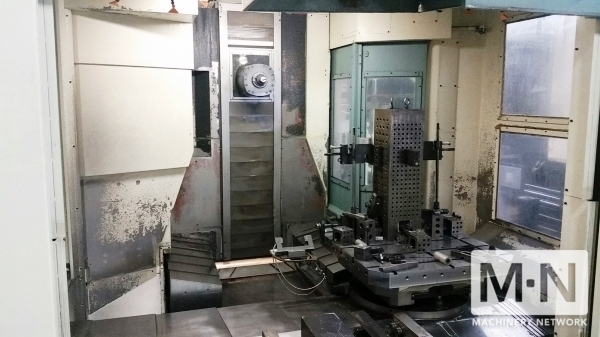

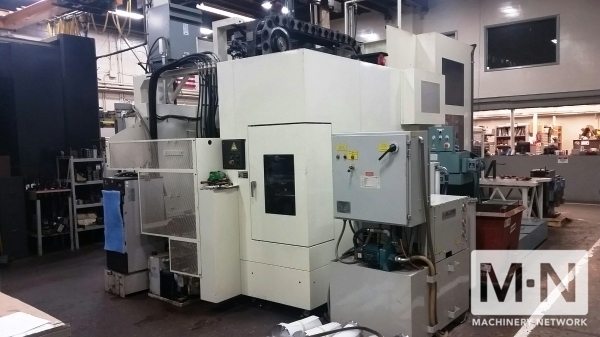

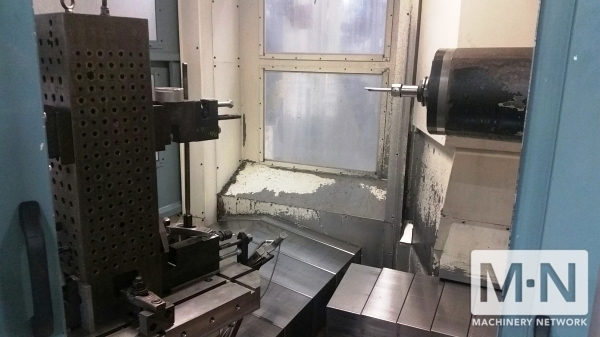

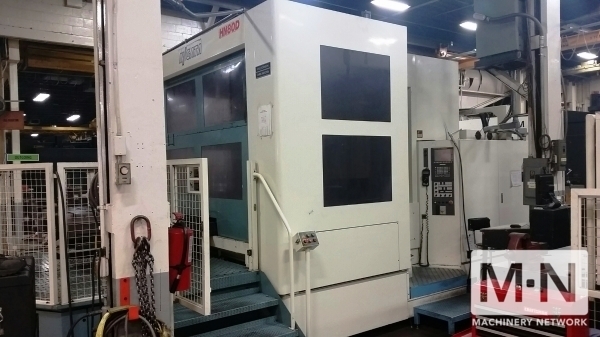

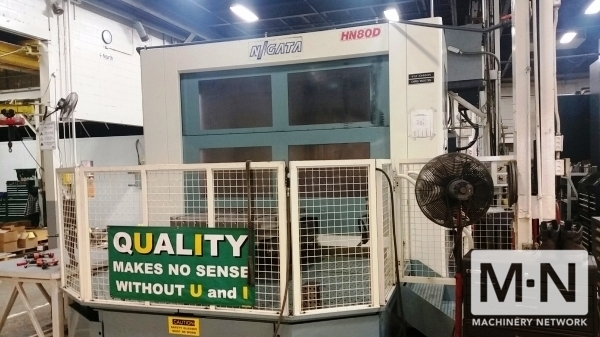

NIIGATA HN80D
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
NIIGATA
Model:
HN80D
Condition:
Not Specified
Year:
2012
Stock #:
36791
Status:
Sold
Description:
31.5" x 31.5" 4th, 6000 rpm, 88 ATC, Fanuc 30iA
Location:
Tennessee, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
1 USED 2012 NIIGATA HN80D
Control Fanuc 30iA
Pallet Size 31.5" x 31.5"
Max Table Load 5,500 lbs.
Travels (X) 60.2"
Travels (Y) 48.4"
Travels (Z) 40.2"
Pallet Indexing (B) 0.001 Degree
Rapid Traverse (X,Y,Z) 1,181 IPM
Spindle Taper CAT 50
Spindle Speed 6,000 RPM
Spindle Ranges 2
Spindle Motor 40/50
Tool Storage Capacity 88
Machine Weight 55,125 lbs.
Machine Dimensions 298" x 204" x 165"
Equipped With:

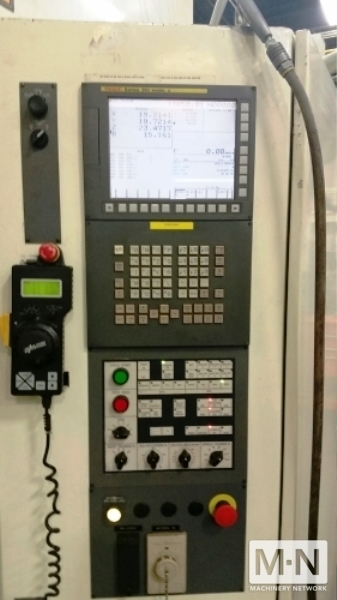

- Fanuc 30i MA Control
- Full 4th Axis
- Renishaw OMP-60 Probe
- Coolant Thru Spindle High Pressure (215 psi)

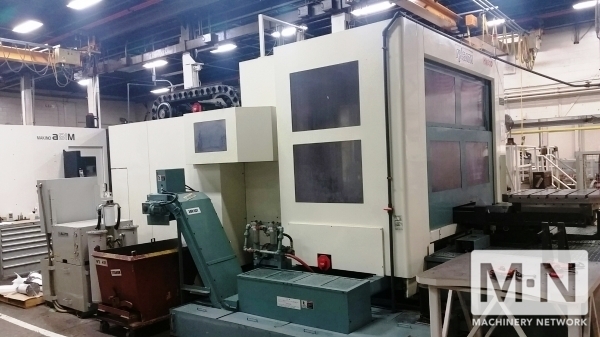

- Chip Conveyor
- Shower Coolant System Hi Volume
- Chip Blaster Model EV60
- 48 Additional Work Piece Coordinates
- Custom Macro B (w/600 variables)
- Data Server (Ethernet)
- High Speed Skip
- Rotary Table Dynamic Fixture Offsets
- 99 Tool Offsets
- Helical Interpolation
- Rigid Tapping
- All Available Manuals
Control Fanuc 30iA
Pallet Size 31.5" x 31.5"
Max Table Load 5,500 lbs.
Travels (X) 60.2"
Travels (Y) 48.4"
Travels (Z) 40.2"
Pallet Indexing (B) 0.001 Degree
Rapid Traverse (X,Y,Z) 1,181 IPM
Spindle Taper CAT 50
Spindle Speed 6,000 RPM
Spindle Ranges 2
Spindle Motor 40/50
Tool Storage Capacity 88
Machine Weight 55,125 lbs.
Machine Dimensions 298" x 204" x 165"
Equipped With:
- Fanuc 30i MA Control
- Full 4th Axis
- Renishaw OMP-60 Probe
- Coolant Thru Spindle High Pressure (215 psi)
- Chip Conveyor
- Shower Coolant System Hi Volume
- Chip Blaster Model EV60
- 48 Additional Work Piece Coordinates
- Custom Macro B (w/600 variables)
- Data Server (Ethernet)
- High Speed Skip
- Rotary Table Dynamic Fixture Offsets
- 99 Tool Offsets
- Helical Interpolation
- Rigid Tapping
- All Available Manuals
