NIIGATA MPN 80
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
NIIGATA
Model:
MPN 80
Condition:
Not Specified
Year:
2001
Stock #:
26305
Status:
Sold
Description:
FANUC 16iM, 2) x 31.5" PLLTS, HELICAL INTERPOLATION, FULL 4TH AXIS, COOLANT THRU , CHIP CONV, CAT # 50 , (
Location:
Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

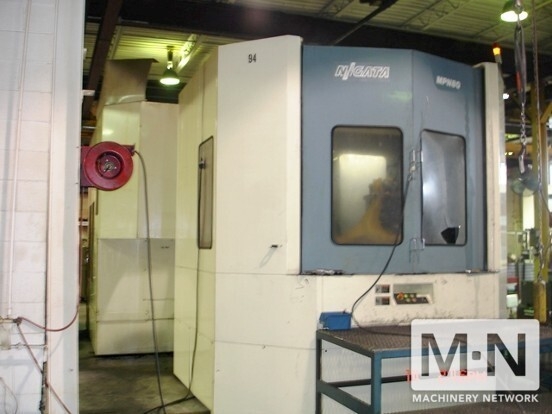

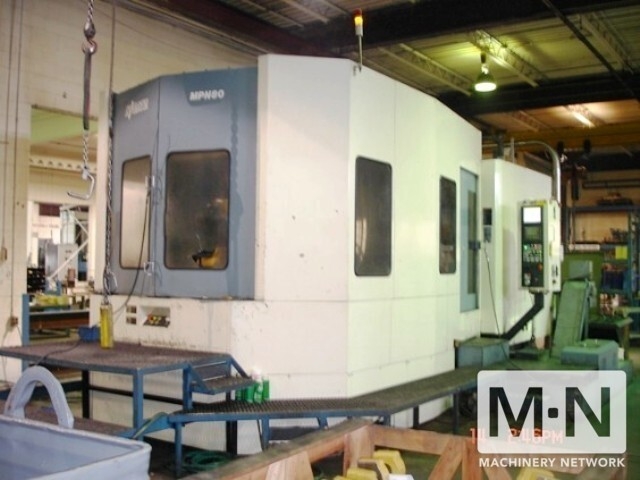

(1) NIIGATA MPN 80 4-AXIS CNC HORIZONTAL MACHINING CENTER
NEW-2001
SPECIFICATIONS:
NUMBER OF PALLETS: (2) x 31.5"
TABLE LOAD CAPACITY: 4,400 LBS
AXIS TRAVEL X - AXIS 59.1
Y - AXIS 44.1"
Z - AXIS 48.03"
B - AXIS .001 N/C CONTOURING
RAPID TRAVERSE 1575 IPM
CUTTING FEEDRATE .04-1575 IPM
SPDL CTR TO PLLT SURFACE 0 - 47.24"
SPDL NOSE TO TBL CTR 7.9"-55.9"
SPINDLE DRIVE MOTOR 40 HP AC
SPINDLE TORQUE 443 FT-LBS
SPINDLE TAPER CAT # 50
SPINDLE SPEEDS (LOW RANGE) 35-1148 RPM
SPINDLE SPEEDS (HIGH RANGE) 1149-8000 RPM
AUTO TOOL CHANGE 60 ATC
TOOL LENGTH 24.0"
MAX. DIA. 5.1"/9.45"
TOOL CHANGE TIME 2.5 SEC.
CHIP TO CHIP 7.9 SEC.
MACHINE WEIGHT 48,500 LBS
EQUIPPED WITH:

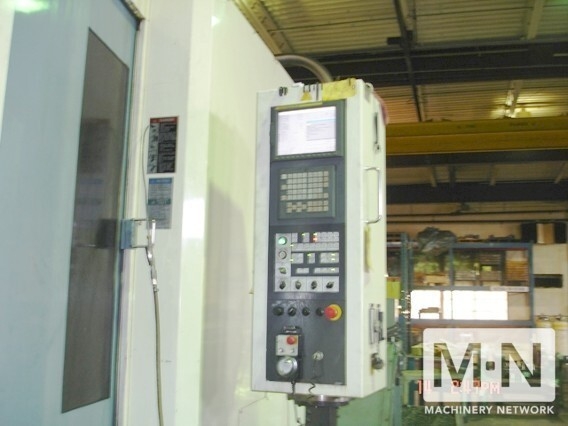

FANUC 16IM 32 BIT CNC CONTROL
HELICAL INTERPOLATION
RIGID TAPPING
200 TOOL OFFSETS
48 WORK OFFSETS
SPINDLAE AIR BLAST
RS 232 PORT

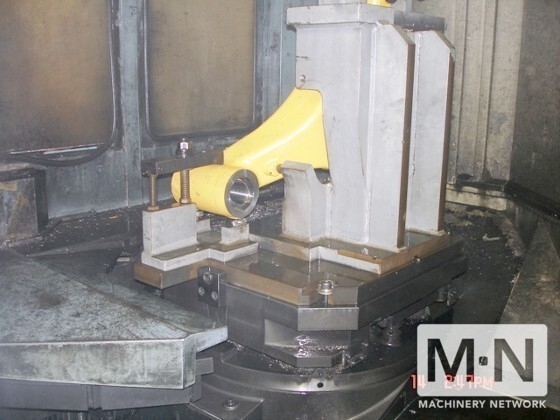

FULL 4TH AXIS .001 NC ROTARY TABLE
COOLANT THRU SPINDLE 215 PSI
4 SPIRAL CHIP AUGERS AND CHIP CONVEYOR,MANUALS
5800 HOURS CUTTING HOURS!!
NEW-2001
SPECIFICATIONS:
NUMBER OF PALLETS: (2) x 31.5"
TABLE LOAD CAPACITY: 4,400 LBS
AXIS TRAVEL X - AXIS 59.1
Y - AXIS 44.1"
Z - AXIS 48.03"
B - AXIS .001 N/C CONTOURING
RAPID TRAVERSE 1575 IPM
CUTTING FEEDRATE .04-1575 IPM
SPDL CTR TO PLLT SURFACE 0 - 47.24"
SPDL NOSE TO TBL CTR 7.9"-55.9"
SPINDLE DRIVE MOTOR 40 HP AC
SPINDLE TORQUE 443 FT-LBS
SPINDLE TAPER CAT # 50
SPINDLE SPEEDS (LOW RANGE) 35-1148 RPM
SPINDLE SPEEDS (HIGH RANGE) 1149-8000 RPM
AUTO TOOL CHANGE 60 ATC
TOOL LENGTH 24.0"
MAX. DIA. 5.1"/9.45"
TOOL CHANGE TIME 2.5 SEC.
CHIP TO CHIP 7.9 SEC.
MACHINE WEIGHT 48,500 LBS
EQUIPPED WITH:
FANUC 16IM 32 BIT CNC CONTROL
HELICAL INTERPOLATION
RIGID TAPPING
200 TOOL OFFSETS
48 WORK OFFSETS
SPINDLAE AIR BLAST
RS 232 PORT
FULL 4TH AXIS .001 NC ROTARY TABLE
COOLANT THRU SPINDLE 215 PSI
4 SPIRAL CHIP AUGERS AND CHIP CONVEYOR,MANUALS
5800 HOURS CUTTING HOURS!!
