OKAMOTO ACUGAR 1624N

Type:

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Manufacturer:

OKAMOTO

Model:

ACUGAR 1624N

Condition:

Not Specified

Year:

1988

Stock #:

29590

Status:

Sold

Description:

16"x24", OTW DRESS,

Location:

New Mexico, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

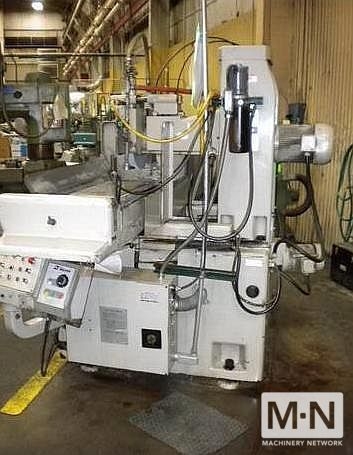

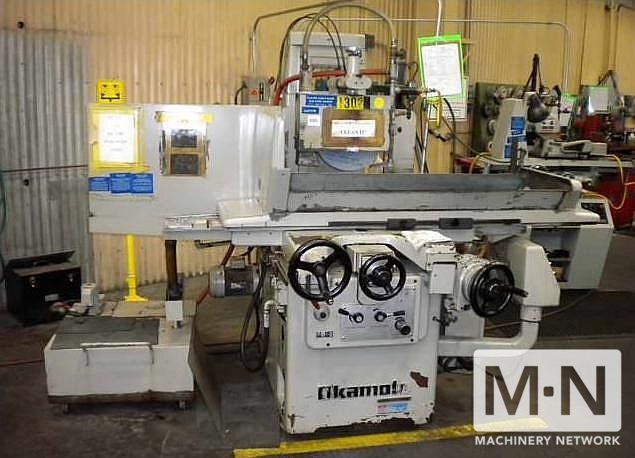

(1) USED 16" X 24" OKAMOTO MODEL ACCUGAR 1624-N HIGH-PRECISION HYDRAULIC SURFACE GRINDER, S/N: 6442, NEW 1988

SPECIFICATIONS:
MAXIMUM GRINDING LENGTH .................. 24"
MAXIMUM GRINDING WIDTH ................... 16"
MAXIMUM HEIGHT UNDER 14" WHEEL ........... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ............ 29.5"
MAXIMUM CROSS MOVEMENT ................... 13.6"
FEEDS:
LONGITUDINAL HYDRAULIC FEED ............. 1' TO 100' FPM
CROSS FEED:
HYDRAULIC INTERMITTENT .................. .02" -.8"
HYDRAULIC CONTINUOUS .................... .4" 40" IPM
HAND FEED/REVOLUTION .................... .25"
GRADUATION OF WHEEL ..................... .001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE .................. .0001" - .00015"
AUTO FEED/SADDLE REVERSAL ............... .0001" - .00015"
HAND FEED/REVOLUTION .................... .05"
GRADUATION OF HANDWHEEL ................. .0001"
RAPID FEEDRATE .......................... 19" IPM GRINDING WHEEL .................................... 12" X 1.5" X 5"
SPINDLE MOTOR ............................ 5 HP
HYDRAULIC PUMP MOTOR ..................... 3 HP
VERTICAL RAPID FEED MOTOR ................ 0.5 HP
DIMENSIONS ............................... 88"W x 103"L x 74"H
APPROX. MACHINE WEIGHT ................... 6,000 LBS.

EQUIPPED WITH:
CENTRALIZED OPERATOR CONTROLS
AUTO INCREMENTAL DOWNFEED (SURFACE & PLUNGE CYCLES)
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION

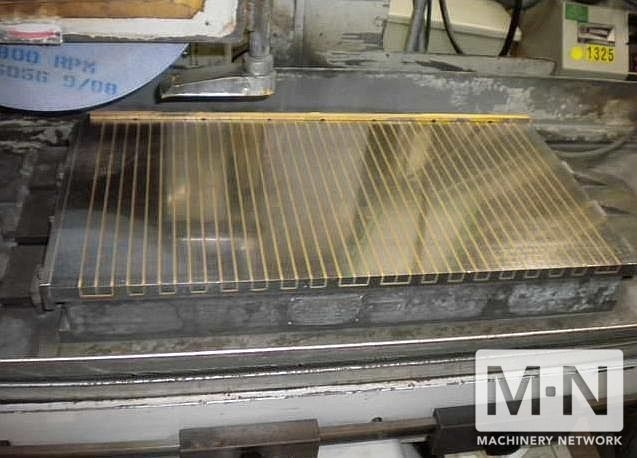

16" X 24" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
O.S. WALKER "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL "OVER-THE-WHEEL" WHEEL DRESSER w/MICROMETER ADJUSTMENT
COOLANT SYSTEM
3/60/230-460 VOLT ELECTRICS

GRINDER IN EXCELLENT CONDITION
AVAILABLE FOR INSPECTION IN NEW JERSEY
