MATSUURA ES800V

Type:

Vertical Machining Centers

Manufacturer:

MATSUURA

Model:

ES800V

Condition:

Not Specified

Year:

2005

Stock #:

36292

Status:

Sold

Description:

4-AXIS, G-TECH 840DIs, 31"x21"x19", CAT 40, 20K RPM, TSUDAKOMA RN-250R R/T, CTS, C.C., 2005

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MATSUURA ES-800V 4-AXIS VERTICAL MACHINING CENTER
NEW 2005

SPECFICATIONS:
TRAVELS:
X AXIS TRAVEL .................... 31.49" 800mm
Y AXIS TRAVEL .................... 21.65" 550mm
Z AXIS TRAVEL .................... 19.68" 500mm
TABLE WORKING SURFACE .............. 45.27" x 21.65" 1150mm x 550mm
TABLE SURFACE TO SPINDLE ........... 5.9" - 25.59" 150mm - 650mm
DISTANCE SPINDLE CENTER TO COLUMN .. 23.23" 590 mm
SPINDLE SPEED RANGE ................ 40 - 20,000 RPM
SPINDLE TAPER ...................... CAT 40
MAX. SPINDLE TORQUE ............... 187 Nm/1,120 min
RAPID TRAVERSE RATES:
X & Y AXIS ....................... 1969 IPM 50000 mm
Z AXIS ........................... 1181 IPM 30000 mm
TOOL CHANGER ....................... 30 ATC
MAX. TOOL DIAMETER ................. 3.77/6.88" 96/175mm
MAX. TOOL LENGTH .................. 13.7" 350mm
MAX. TOOL WEIGHT ................... 22LBS. 10kg
TOOL CHANGE TIME ................... .9 SEC
MACHINE WEIGHT ..................... 16,000 LBS.

EQUIPPED WITH:

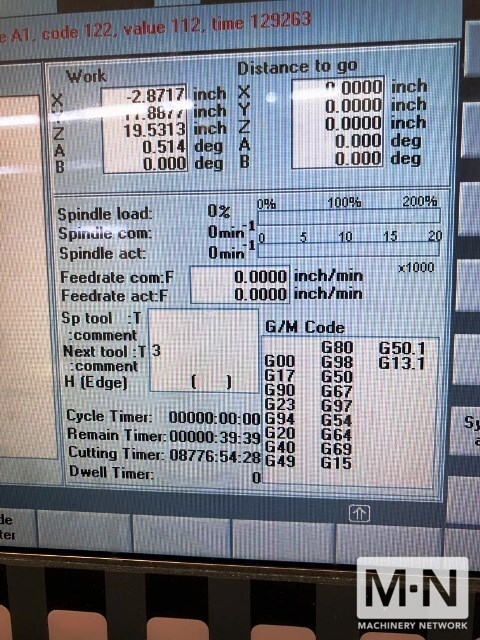

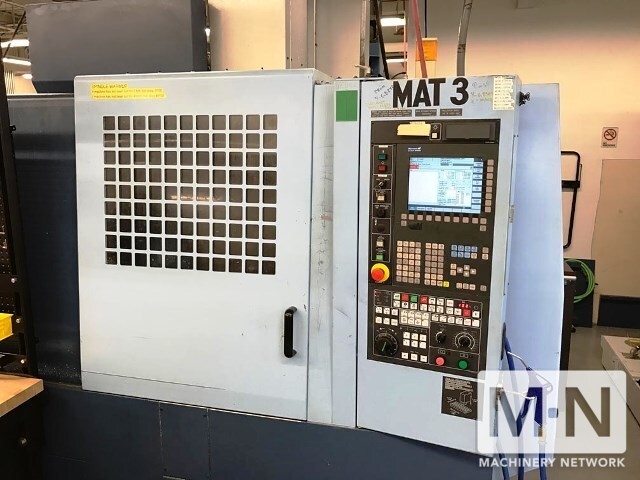

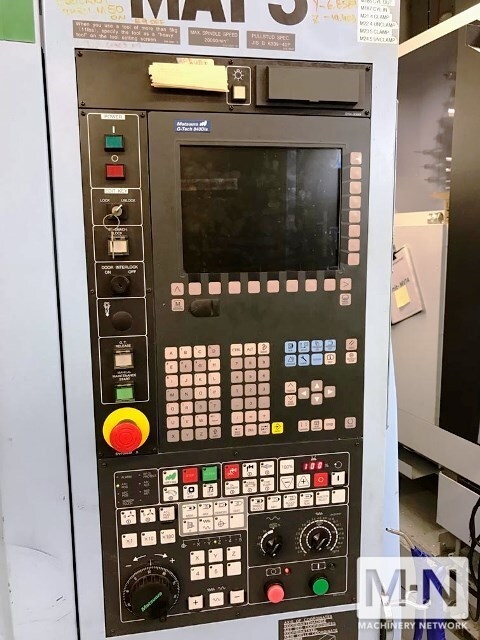

MATSUURA G-TECH 840DIs FOUR AXIS CONTROL
SYNCH. TAPPING

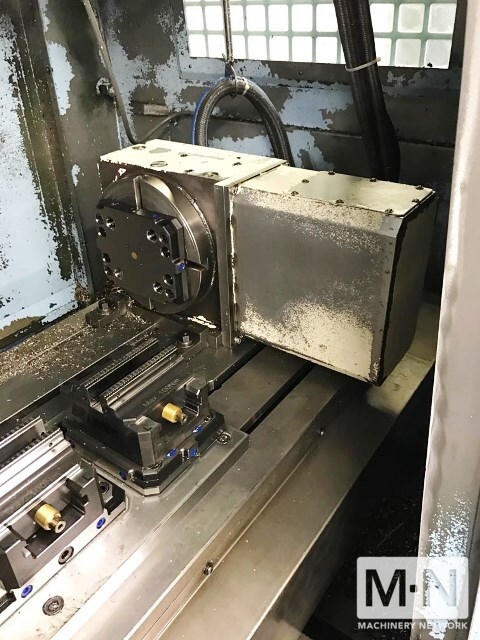

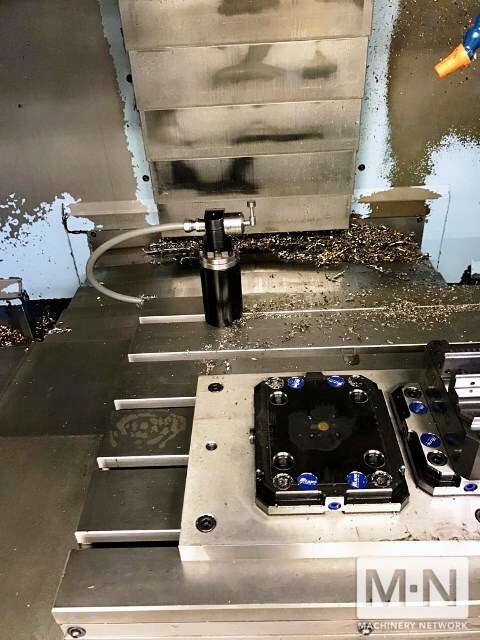

TSUDAKOMA MODEL: RN-250R FOURTH AXIS ROTARY TABLE
TOOL PRESETTER

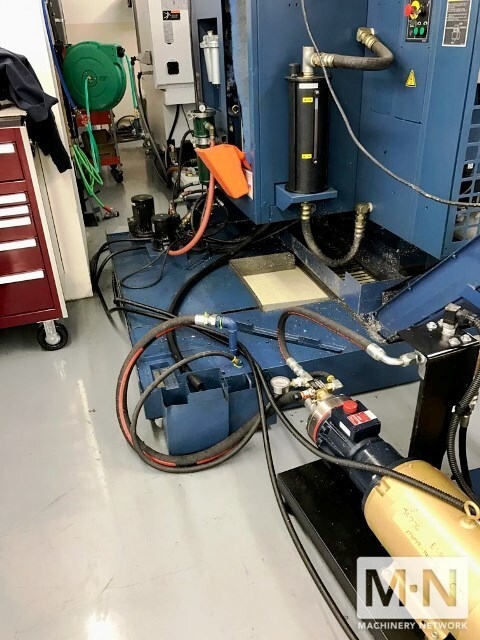

HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI
COOLANT SYSTEM

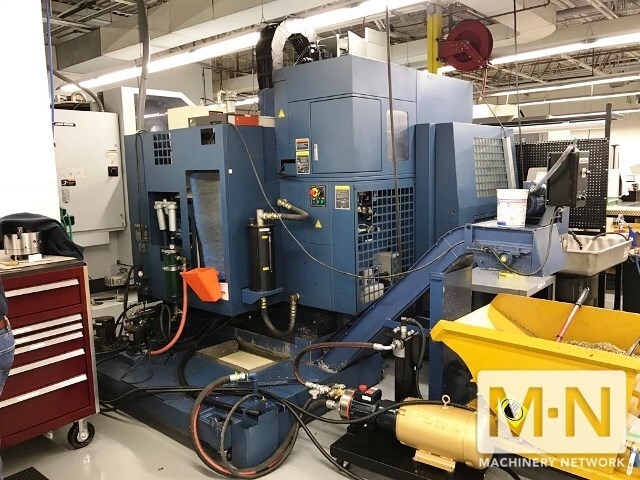

CHIP CONVEYOR
15/22 KW SPINDLE MOTOR
ALL AVAILABLE MANUALS
