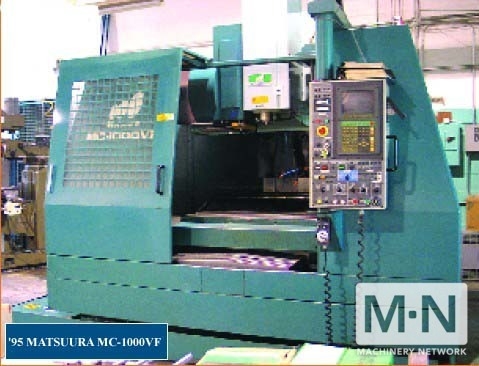

MATSUURA MC-1000VF
Type:
Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
MC-1000VF
Condition:
Not Specified
Year:
1995
Stock #:
24078
Status:
Sold
Description:
YASNAC i-80 , 4-AXIS, 43" X 20" T-SLOT TABLE, #40TAPER, 30 TOOLS, 8K RPM,
Location:
Ontario, Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MATSUURA MC-1000VF 4 AXIS CNC VERTICAL
MACHINING CENTER NEW 1995 S/N:950111024
SPECIFICATIONS:
TRAVELS X-AXIS: 41"
Y-AXIS: 22"
Z-AXIS: 22"
TABLE TOP TO SPINDLE END: 7.87" - 29.92"
TABLE CENTER TO COLUMN: 12.59" - 34.64"
SPINDLE CENTER TO COLUMN: 23.63"
TABLE SIZE: 55.12" X 22"
MAXIMUM WORKLOAD ON TABLE: 3300 LBS
TABLE SURFACE T-SLOTS: 11/16" X 5 X 4"
TABLE SIZE: 43" X 20" T-SLOT TABLE
SPINDLE TAPER: #40
SPINDLE SPEED: 8000 RPM
TOOLS: 30 ATC
SPINDLE MOTOR: 20 / 25 HP
MACHINE DIMENSIONS: 192.9" X 169.3"
113.3"
MACHINE WEIGHT: 18740 LBS
EQUIPPED WITH:
YASNAC CNC i-80 CONTROL
KITAGAWA/TECHNARA TR320 FULL 4TH AXIS ROTARY TABLE WITH TAILSTOCK (NEW 1997)
COOLANT THRU' THE SPINDLE.
NIKON MICRO-TOUCH TOOL PRESETTER
220 VOLT AND TRANSFORMER
MACHINING CENTER NEW 1995 S/N:950111024
SPECIFICATIONS:
TRAVELS X-AXIS: 41"
Y-AXIS: 22"
Z-AXIS: 22"
TABLE TOP TO SPINDLE END: 7.87" - 29.92"
TABLE CENTER TO COLUMN: 12.59" - 34.64"
SPINDLE CENTER TO COLUMN: 23.63"
TABLE SIZE: 55.12" X 22"
MAXIMUM WORKLOAD ON TABLE: 3300 LBS
TABLE SURFACE T-SLOTS: 11/16" X 5 X 4"
TABLE SIZE: 43" X 20" T-SLOT TABLE
SPINDLE TAPER: #40
SPINDLE SPEED: 8000 RPM
TOOLS: 30 ATC
SPINDLE MOTOR: 20 / 25 HP
MACHINE DIMENSIONS: 192.9" X 169.3"
113.3"
MACHINE WEIGHT: 18740 LBS
EQUIPPED WITH:
YASNAC CNC i-80 CONTROL
KITAGAWA/TECHNARA TR320 FULL 4TH AXIS ROTARY TABLE WITH TAILSTOCK (NEW 1997)
COOLANT THRU' THE SPINDLE.
NIKON MICRO-TOUCH TOOL PRESETTER
220 VOLT AND TRANSFORMER
