OKK MHA-460P
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
OKK
Model:
MHA-460P
Condition:
Not Specified
Year:
1992
Stock #:
24218
Status:
Sold
Description:
MITS "MIL" CTRL, 47.2" x 17.7" TBL, 36.2" x 20.8" x 18.1" TRVLS, 2K RPM, #50 TPR,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

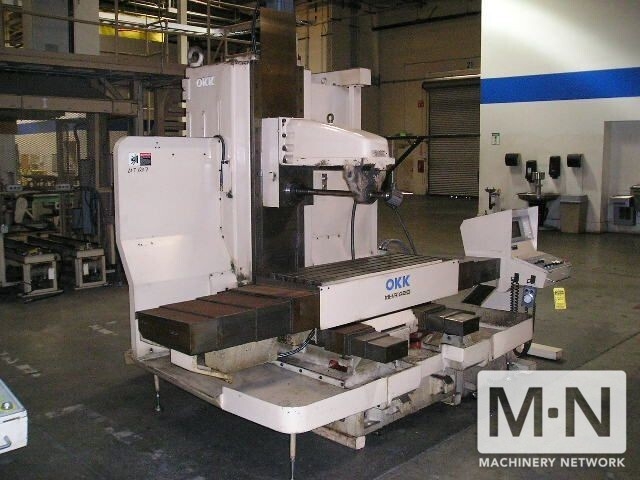

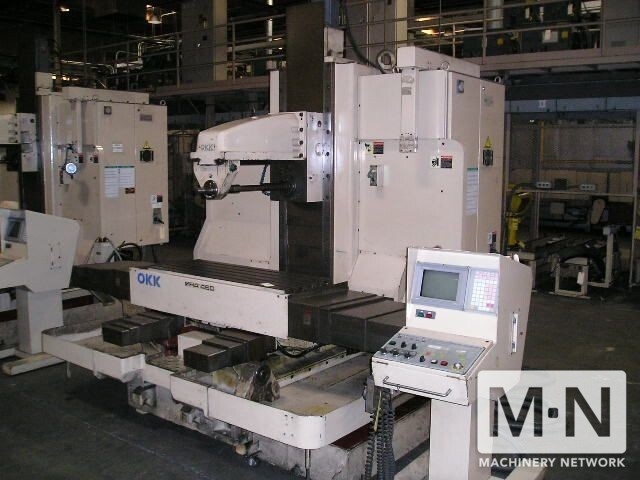

(14) USED OKK MHA-460P CNC HORIZONTAL MILLING MACHINE
NEW-1992
SPECIFICATIONS:
TRAVELS - X-AXIS: 36.2"
- Y-AXIS: 20.87"
- Z-AXIS: 18.11"
TABLE WORK SURFACE AREA: 47.2" x 17.72"
DIST. TBLE TOP - SDL: 5.9"-26.8"
DIST. COLUMN FRONT - SDL: 7.87"
MAX. SPINDLE SPEED: 40-2000 RPM
NO. SDL SPEED CHANGE RANGES: STEPLESS, 3 RANGES
RAPID TRAVERSE RATE (X,Z / Y): 441/394 IPM
MAX CUTTING FEEDRATE: .39 - 196 IPM
SPINDLE TAPER: #50
SPINDLE BORE: 3.5"
MAX. WORK WEIGHT ON TBL: 1760 LBS
SPINDLE MOTOR: 15/10 HP
POWER SUPPLY: 208/3/60
MACHINE DIMENSION: 130" x L-R x 114" F-B
MACHINE HEIGHT: 115" H
MACHINE WEIGHT: 12,000 LBS
EQUIPPED WITH:
OKK MIL CNC CONTROL (MITSUBISHI M320M)
OVERARM SUPPORT (2)
MILLING ARBOR (1)
COOLANT SYSTEM COMPLETE
HYDRAULIC UNIT
***** PRICE IS FOR EACH MACHINE *****
NEW-1992
SPECIFICATIONS:
TRAVELS - X-AXIS: 36.2"
- Y-AXIS: 20.87"
- Z-AXIS: 18.11"
TABLE WORK SURFACE AREA: 47.2" x 17.72"
DIST. TBLE TOP - SDL: 5.9"-26.8"
DIST. COLUMN FRONT - SDL: 7.87"
MAX. SPINDLE SPEED: 40-2000 RPM
NO. SDL SPEED CHANGE RANGES: STEPLESS, 3 RANGES
RAPID TRAVERSE RATE (X,Z / Y): 441/394 IPM
MAX CUTTING FEEDRATE: .39 - 196 IPM
SPINDLE TAPER: #50
SPINDLE BORE: 3.5"
MAX. WORK WEIGHT ON TBL: 1760 LBS
SPINDLE MOTOR: 15/10 HP
POWER SUPPLY: 208/3/60
MACHINE DIMENSION: 130" x L-R x 114" F-B
MACHINE HEIGHT: 115" H
MACHINE WEIGHT: 12,000 LBS
EQUIPPED WITH:
OKK MIL CNC CONTROL (MITSUBISHI M320M)
OVERARM SUPPORT (2)
MILLING ARBOR (1)
COOLANT SYSTEM COMPLETE
HYDRAULIC UNIT
***** PRICE IS FOR EACH MACHINE *****
