DOOSAN PUMA TT2500SY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
DOOSAN
Model:
PUMA TT2500SY
Condition:
Not Specified
Year:
2005
Stock #:
36127
Status:
Sold
Description:
FANUC 18ITB, (2) 25 HP OPPOSED SPINDLES, (2) 12 POSITION TURRETS, (2) 10" 3-JAW POWER CHUCKS, LIVE TOOLING, 2005
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

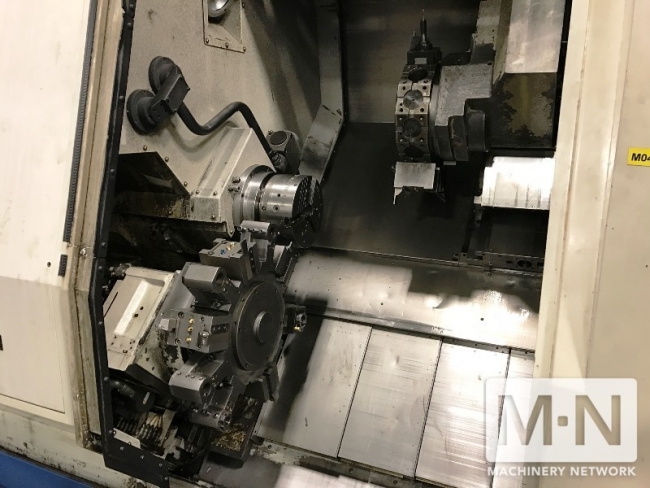

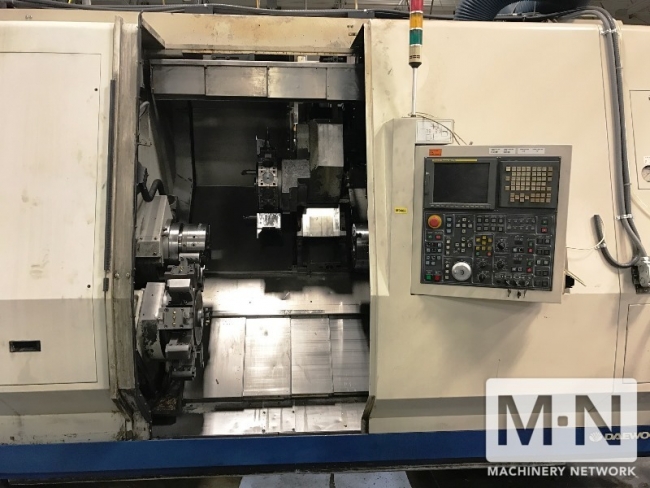

(1) USED DOOSAN TT2500SY DUAL SPINDLE, DUAL TURRET CNC TURNING CENTER W/ LIVE TOOLING, AND Y-AXIS
NEW 2005
NOTE: THE DAEWOO TT SERIES TURNING CENTER FEATURES TWO INLINE OPPOSING SPINDLES AND TWO TOOL TURRETS. THIS MACHINE IS DESIGNED FOR COMPLETING FIRST AND SECOND TURNING OPERATIONS IN ONE ACTUAL LOADING. A WORKPIECE MAY BE LOADED TO THE FIRST SPINDLE, THEN TURNED, THEN AUTOMATICALLY AND INTERNALLY TRANSFERRED TO THE SECOND SPINDLE FOR SECOND OPERATION TURNING.
SPECIFICATIONS:
MAX SWING OVER BED............................... 31.5"
MAXIMUM TURNING DIAMETER (UPPER TURRET).......... 15.35"
MAXIMUM TURNING DIAMETER (LOWER TURRET).......... 11.81"
MAXIMUM TURNING LENGTH........................... 29.13"
STANDARD CHUCK SIZE.............................. 10"
CROSS TRAVEL TURRET 1 (X1-AXIS).................. 10.04"
LONGITUDINAL TRAVEL TURRET 1 (Z1-AXIS)........... 31.5"
Y-AXIS TRAVEL.................................... 4.72"
CROSS TRAVEL TURRET 2 (X2-AXIS).................. 7.48"
LONGITUDINAL TRAVEL HEADSTOCK (Z2-AXIS).......... 35.43"
C-AXIS (BOTH SPINDLES)........................... .001 DEGREES
RAPID TRAVERSE RATE (X1, X2 AXES)................ 787 IPM
RAPID TRAVERSE RATE (Z1, Z2 AXES)................ 945 IPM
RAPID TRAVERSE RATE (Y-AXIS)..................... 295 IPM
NUMBER OF TURRETS................................ 2
TOOL POSITIONS................................... 12 EACH TURRET
SPINDLE BORE..................................... 3.54"
MAXIMUM BAR CAPACITY............................. 3"
SPINDLE NOSE..................................... A2-8
SPINDLE SPEED RANGE.............................. 30-3500 RPM
SPINDLE HORSEPOWER............................... 25 HP
ROTATING TOOL MAXIMUM SPEED (BOTH TURRETS)....... 4000 RPM
ROTATING TOOL HORSEPOWER (BOTH TURRETS).......... 7.5 HP
APPROXIMATE MACHINE DIMENSIONS................... 165" X 87"
APPROXIMATE MACHINE HEIGHT....................... 105"
APPROXIMATE MACHINE WEIGHT....................... 26,000 LBS
EQUIPPED WITH:
FANUC 18ITB CNC CONTROL, (2) 25 HP OPPOSED SPINDLES, (2) 12 POSITION TURRETS, (2) 10" 3-JAW POWER CHUCKS, LIVE TOOLING IN BOTH TURRETS, Y-AXIS, FULL CONTOURING C-AXIS ON BOTH SPINDLES, CHIP CONVEYOR, LARGE TOOLING PACKAGE, COOLANT SYSTEM.
NEW 2005
NOTE: THE DAEWOO TT SERIES TURNING CENTER FEATURES TWO INLINE OPPOSING SPINDLES AND TWO TOOL TURRETS. THIS MACHINE IS DESIGNED FOR COMPLETING FIRST AND SECOND TURNING OPERATIONS IN ONE ACTUAL LOADING. A WORKPIECE MAY BE LOADED TO THE FIRST SPINDLE, THEN TURNED, THEN AUTOMATICALLY AND INTERNALLY TRANSFERRED TO THE SECOND SPINDLE FOR SECOND OPERATION TURNING.
SPECIFICATIONS:
MAX SWING OVER BED............................... 31.5"
MAXIMUM TURNING DIAMETER (UPPER TURRET).......... 15.35"
MAXIMUM TURNING DIAMETER (LOWER TURRET).......... 11.81"
MAXIMUM TURNING LENGTH........................... 29.13"
STANDARD CHUCK SIZE.............................. 10"
CROSS TRAVEL TURRET 1 (X1-AXIS).................. 10.04"
LONGITUDINAL TRAVEL TURRET 1 (Z1-AXIS)........... 31.5"
Y-AXIS TRAVEL.................................... 4.72"
CROSS TRAVEL TURRET 2 (X2-AXIS).................. 7.48"
LONGITUDINAL TRAVEL HEADSTOCK (Z2-AXIS).......... 35.43"
C-AXIS (BOTH SPINDLES)........................... .001 DEGREES
RAPID TRAVERSE RATE (X1, X2 AXES)................ 787 IPM
RAPID TRAVERSE RATE (Z1, Z2 AXES)................ 945 IPM
RAPID TRAVERSE RATE (Y-AXIS)..................... 295 IPM
NUMBER OF TURRETS................................ 2
TOOL POSITIONS................................... 12 EACH TURRET
SPINDLE BORE..................................... 3.54"
MAXIMUM BAR CAPACITY............................. 3"
SPINDLE NOSE..................................... A2-8
SPINDLE SPEED RANGE.............................. 30-3500 RPM
SPINDLE HORSEPOWER............................... 25 HP
ROTATING TOOL MAXIMUM SPEED (BOTH TURRETS)....... 4000 RPM
ROTATING TOOL HORSEPOWER (BOTH TURRETS).......... 7.5 HP
APPROXIMATE MACHINE DIMENSIONS................... 165" X 87"
APPROXIMATE MACHINE HEIGHT....................... 105"
APPROXIMATE MACHINE WEIGHT....................... 26,000 LBS
EQUIPPED WITH:
FANUC 18ITB CNC CONTROL, (2) 25 HP OPPOSED SPINDLES, (2) 12 POSITION TURRETS, (2) 10" 3-JAW POWER CHUCKS, LIVE TOOLING IN BOTH TURRETS, Y-AXIS, FULL CONTOURING C-AXIS ON BOTH SPINDLES, CHIP CONVEYOR, LARGE TOOLING PACKAGE, COOLANT SYSTEM.
