DOOSAN PUMA 240MSB
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
DOOSAN
Model:
PUMA 240MSB
Condition:
Not Specified
Year:
2007
Stock #:
34233
Status:
Sold
Description:
DOOSAN / DAEWOO PUMA 240MSB, FANUC 18iT, 8" Chuck, 2.5" Bar Cap.,
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

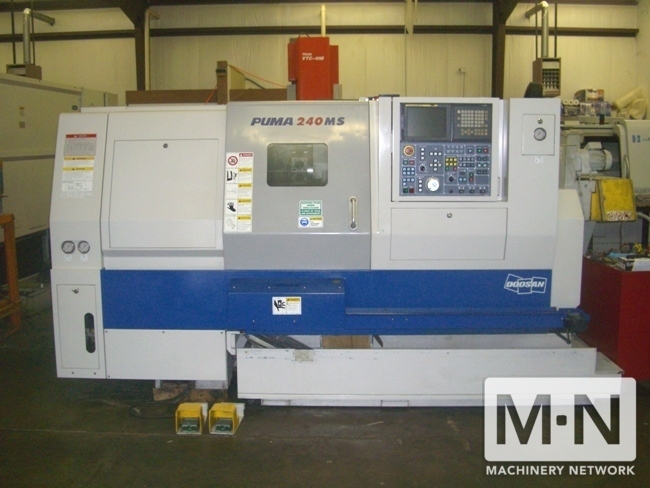

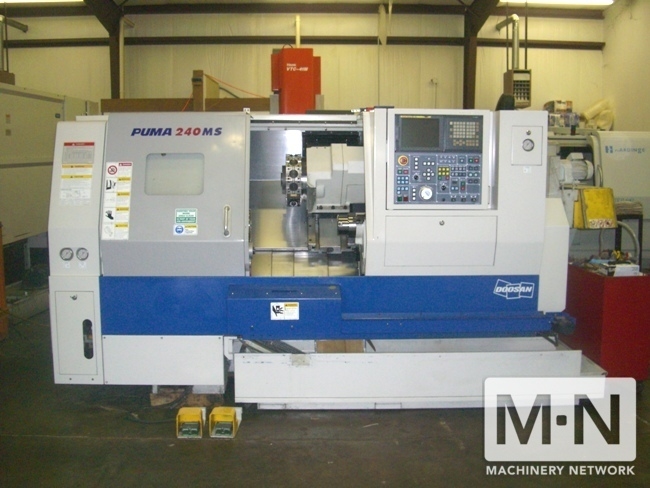

(1) USED DOOSAN / DAEWOO PUMA 240MSB CNC TURNING CENTER
NEW 2007
HOUR READ:
15,512 POWER ON TIME
5866 OPERATING TIME
3240 CUTTING TIME
SPECIFICATIONS:
CHUCK SIZE........................8.25"
MAX DIAMETER BAR CAPACITY.........2.56"
MAX SWING OVER BED / CARRIAGE.....21.7" / 15.4"
MAX TURNING DIAMETER..............11.4"
DISTANCE BETWEEN SPINDLES.........32.3"
MAIN MOTOR........................25 / 20 HP AC

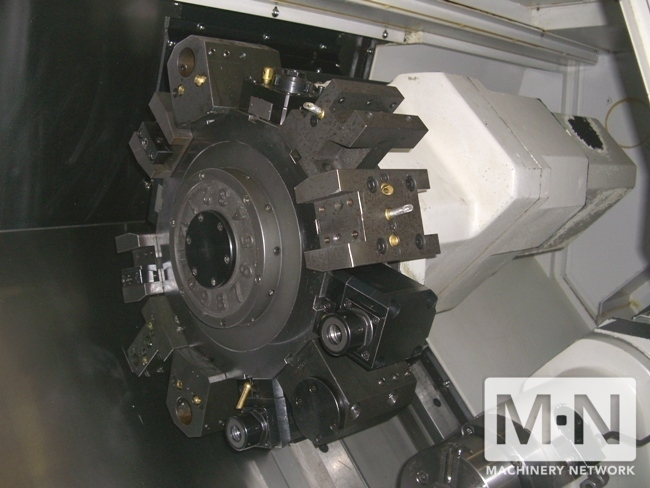

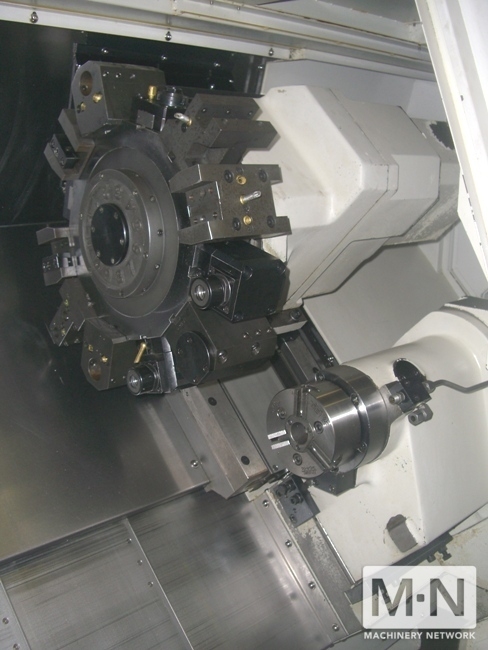

TOOLS.............................12 (ALL LIVE)
SPINDLE SPEED.....................50 - 5000 RPM
SPINDLE BORE......................2.99"
SPINDLE NOSEA.....................2-6
MILLING MOTOR.....................7.5 HP
MILLING SPEED.....................50 - 5000 RPM
SUB SPINDLE MOTOR.................7.5 HP
SUB SPINDLE SPEED.................60 - 6000 RPM
RAPID TRAVERSE RATES (X / Z)......945 / 1200 IPM
X-AXIS TRAVEL ....................8"
Z-AXIS TRAVEL ....................22.8"
C-AXIS INDEX......................001 DEGREES
TURRET INDEX (SINGLE STEP)........0.1 SECONDS
MACHINE DIMENSIONS (L X W)........130" X 66"
MACHINE WEIGHT....................9820 LBS.
EQUIPPED WITH:

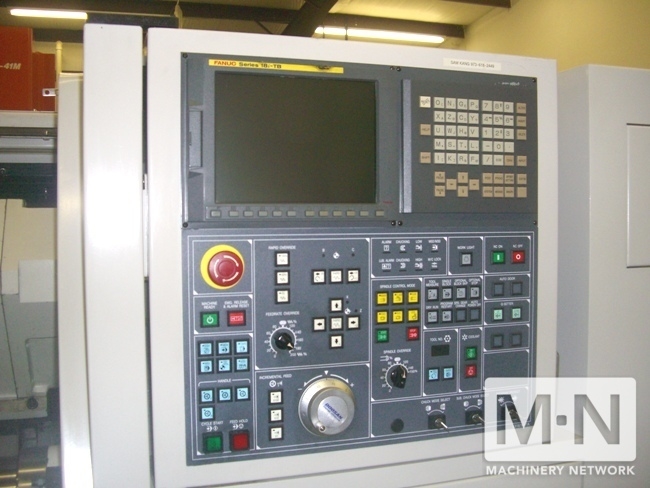

FANUC 18IT CNC CONTROL
10.4" COLOR LCD

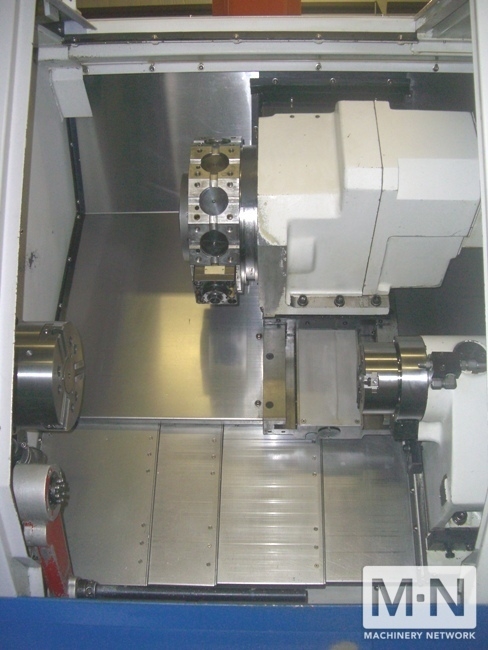

BALLSCREW DRIVEN PROGRAMMABLE SUB SPINDLE WITH
5 DEGREE INDEX
C-AXIS MILLING CAPABILITY
8" SAMCHULLY HH-208 HYDRAULIC CHUCK ON MAIN SPINDLE

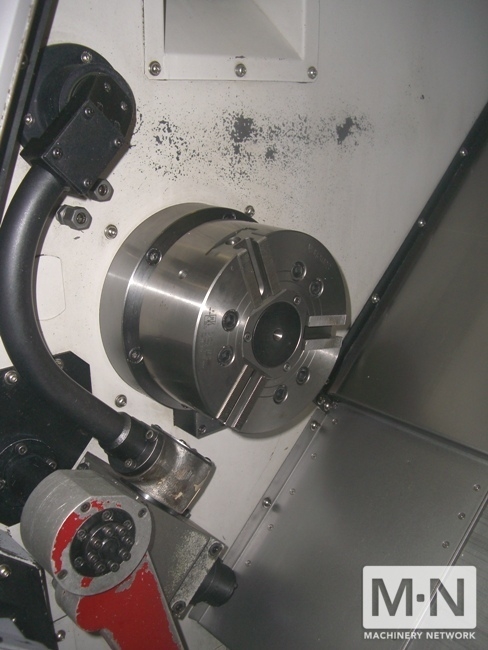

5" SAMCHULLY HS-05 HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER
PARTS EXIT CONVEYOR
PROGRAMMABLE TOOL SETTER
ELECTRIC TORQUE LIMITERS
(2) FACE LIVE HOLDERS
(2) OD LIVE HOLDER
(3) BORING BAR HOLDERS
(3) DOUBLE BORING BAR HOLDERS
(5) TURNING HOLDERS
(2) TANDEM TURNING HOLDERS
(1) FACING HOLDER
NEW 2007
HOUR READ:
15,512 POWER ON TIME
5866 OPERATING TIME
3240 CUTTING TIME
SPECIFICATIONS:
CHUCK SIZE........................8.25"
MAX DIAMETER BAR CAPACITY.........2.56"
MAX SWING OVER BED / CARRIAGE.....21.7" / 15.4"
MAX TURNING DIAMETER..............11.4"
DISTANCE BETWEEN SPINDLES.........32.3"
MAIN MOTOR........................25 / 20 HP AC
TOOLS.............................12 (ALL LIVE)
SPINDLE SPEED.....................50 - 5000 RPM
SPINDLE BORE......................2.99"
SPINDLE NOSEA.....................2-6
MILLING MOTOR.....................7.5 HP
MILLING SPEED.....................50 - 5000 RPM
SUB SPINDLE MOTOR.................7.5 HP
SUB SPINDLE SPEED.................60 - 6000 RPM
RAPID TRAVERSE RATES (X / Z)......945 / 1200 IPM
X-AXIS TRAVEL ....................8"
Z-AXIS TRAVEL ....................22.8"
C-AXIS INDEX......................001 DEGREES
TURRET INDEX (SINGLE STEP)........0.1 SECONDS
MACHINE DIMENSIONS (L X W)........130" X 66"
MACHINE WEIGHT....................9820 LBS.
EQUIPPED WITH:
FANUC 18IT CNC CONTROL
10.4" COLOR LCD
BALLSCREW DRIVEN PROGRAMMABLE SUB SPINDLE WITH
5 DEGREE INDEX
C-AXIS MILLING CAPABILITY
8" SAMCHULLY HH-208 HYDRAULIC CHUCK ON MAIN SPINDLE
5" SAMCHULLY HS-05 HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER
PARTS EXIT CONVEYOR
PROGRAMMABLE TOOL SETTER
ELECTRIC TORQUE LIMITERS
(2) FACE LIVE HOLDERS
(2) OD LIVE HOLDER
(3) BORING BAR HOLDERS
(3) DOUBLE BORING BAR HOLDERS
(5) TURNING HOLDERS
(2) TANDEM TURNING HOLDERS
(1) FACING HOLDER
