CINCINNATI 340-20 TWIN GRIP

Type:

GRINDERS, CENTERLESS

Manufacturer:

CINCINNATI

Model:

340-20 TWIN GRIP

Condition:

Not Specified

Year:

1970

Stock #:

35171

Status:

Sold

Description:

plc

Videos:

Product Video #1

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

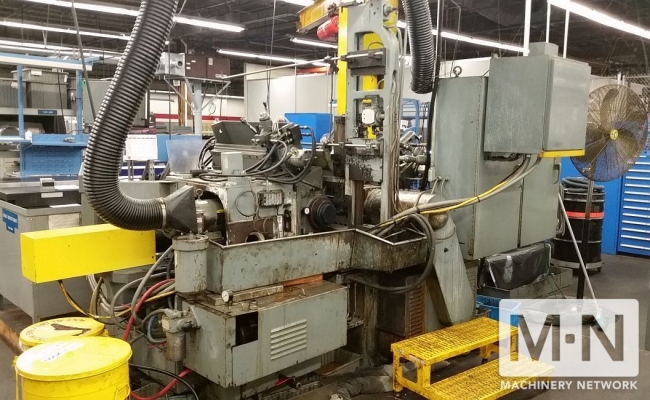

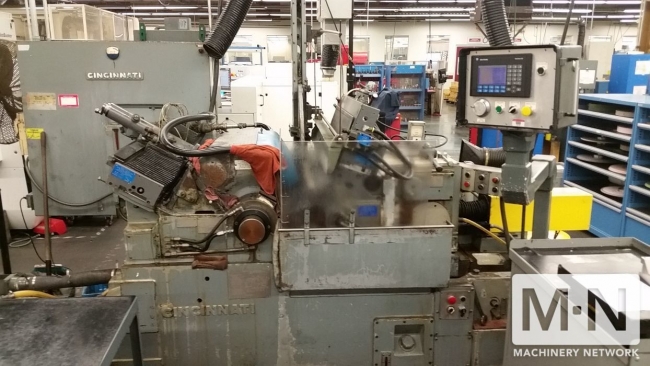

(1) Used Cincinnati 340-20 "Twin-Grip" Centerless Grinder
New 1970

Specifications:
Max Grinding Diameter 6"

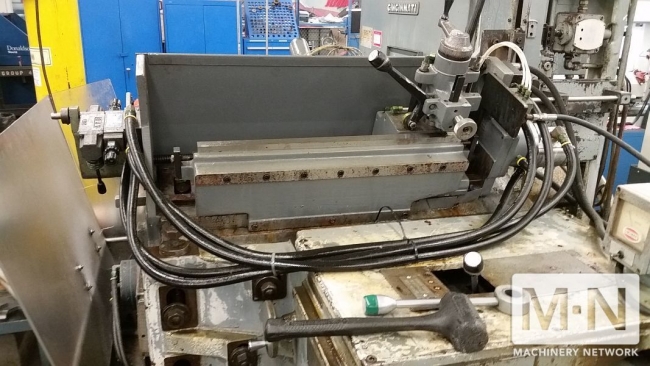

Standard Thru Feed and Infeed Work Rest 1/2" - 3"
Grinding Wheel - Hole 12"
Grinding Wheel - Maximum Diameter 17" - 24"
Grinding Wheel - Width Up to 20"
Regulating Wheel - Hole 6"
Regulating Wheel - Diameter 10 1/2" - 14"
Regulating Wheel - Width Up to 20"
Regulating Wheel Speeds - Low Range 12 - 56 RPM
Regulating Wheel Speeds - High Range 56 - 300 RPM
Grinding Wheel Drive 40HP
Regulating Wheel Drive 2 HP
Actual Dimensions 170"L X 80"W X 95"H
Approximate Weight 20,000 Lbs.

Grinding Wheel Spindle
Cartridge Type Spindle includes Filmatic Bearings which are Self Adjusting for variations in load. Automatic Circulating Lubrication under pressure.

EQUIPPED WITH:

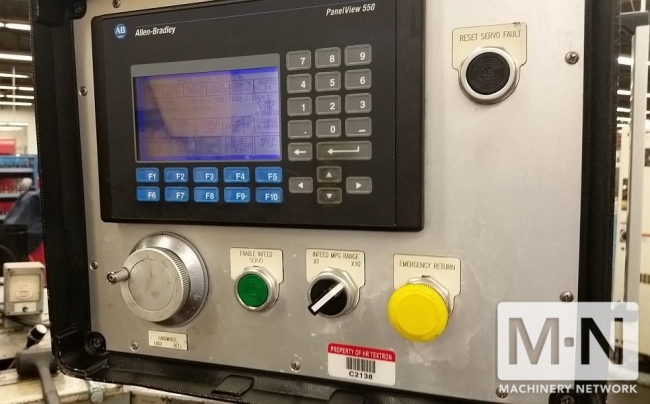

Retrofitted with Allen Bradley Panelview PLC control & Servo infeed by GCH approx 2 years ago

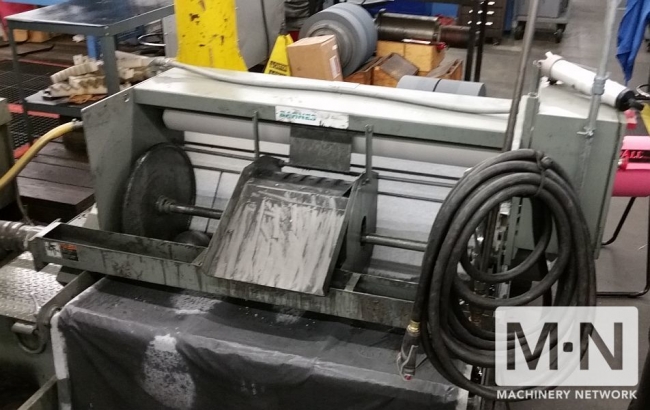

Barens coolant fitration system

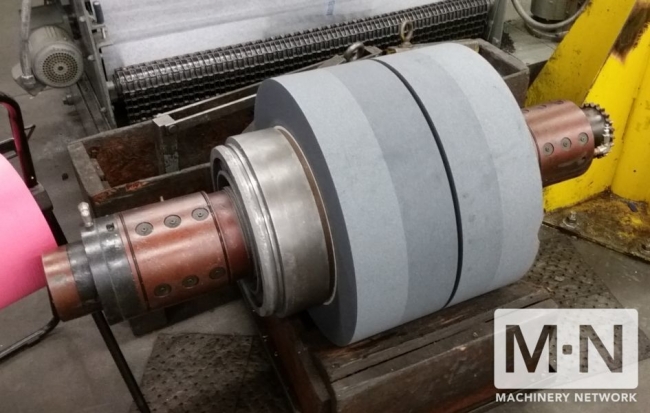

Spare grinding wheel shafts & wheels

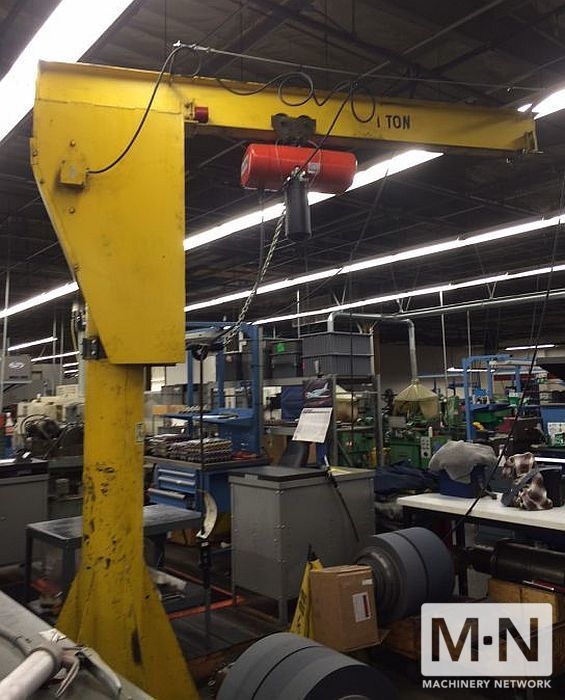

1 Ton jib crane with C&M electric hoist

Video available!
