UNISON DEDTRU

Type:

GRINDERS, CENTERLESS

Manufacturer:

UNISON

Model:

DEDTRU

Condition:

Not Specified

Stock #:

29594

Status:

Sold

Description:

DEDTRU FIXTURE ON HARIG BASE

Location:

New Mexico, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

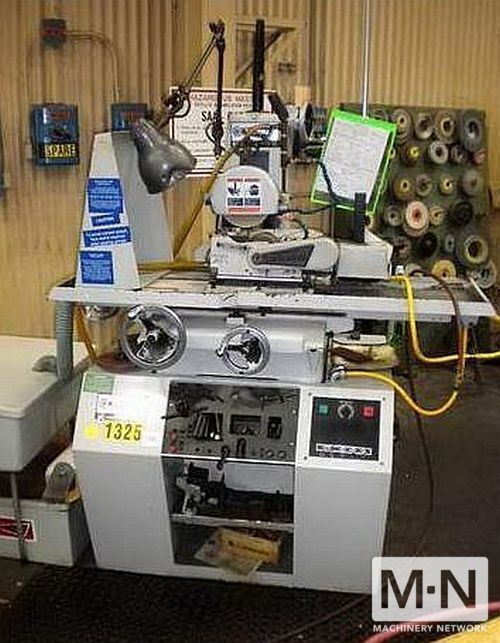

(1) USED UNISON DEDTRU CENTERLESS GRINDING MACHINE
MOUNTED ON HARIG 618-W SURFACE GRINDER - NEW 1990

SPECIFICATIONS:
VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
REGULATING ROLL .............................. 10"
CROSS FEED TRAVEL ........................... 6-3/4"
LONGITUDINAL TRAVEL .......................... 18"
TABLE SIZE ................................... 6" X 18"
WORKPIECE SIZE:
O.D. WORK WITH BASIC EQUIPMENT ............... .25" - 1.25"
O.D. WORK W/STD. OPTIONAL ACCESSORIES ........ .031" TO 5"
I.D. WORK - MAXIMUM O.D. ..................... 5"
MAXIMUM WHEEL DIAMETER ....................... 8"
MAXIMUM WHEEL LENGTH ......................... 3"
APPROXIMATE MACHINE WEIGHT .................... 1,500 LBS

EQUIPPED WITH:

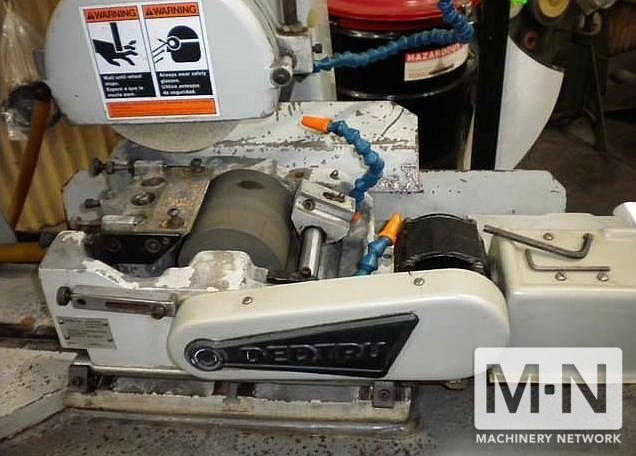

UNISON MODEL "C" DED-TRU CENTERLESS GRINDING UNIT, S/N: 3690
-DESIGNED TO DO THROUGH FEED, O.D., I.D. AND 2ND OPERATIONS
REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC DRIVE CONTROL
REGULATING ROLL SIZE 4" X 4"
HARIG #618 HAND FEED SURFACE GRINDER BASE
POPE 3 HP GRINDING WHEEL SPINDLE

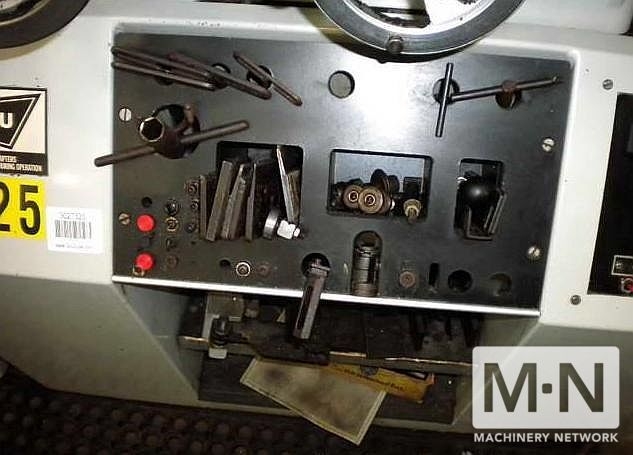

TOOLING
COOLANT SYSTEM WITH PAPER FILTRATION
