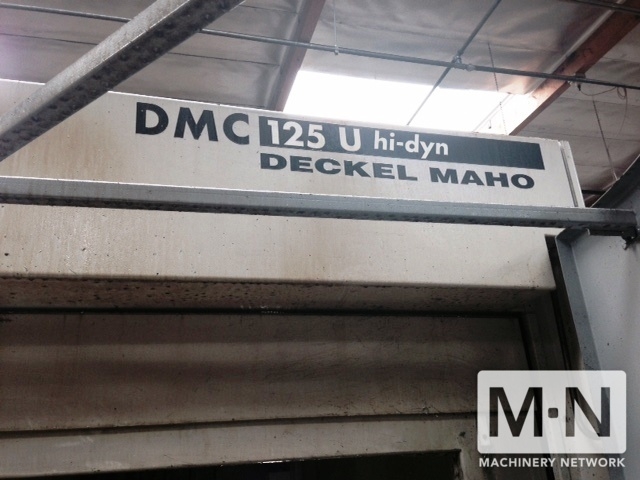

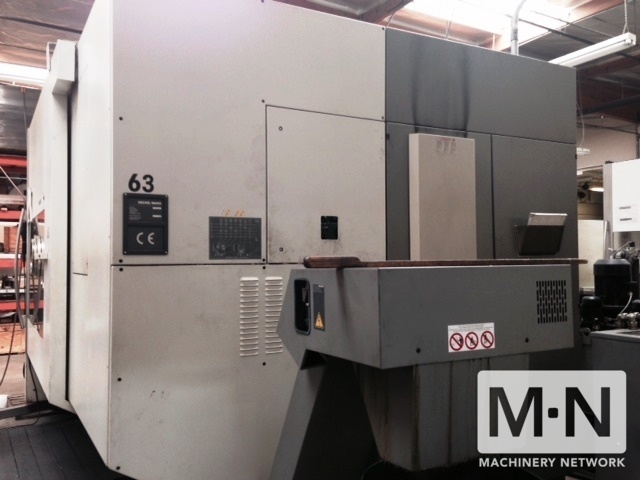

DMG DMC 125U HI DYN

Type:

Vertical Machining Centers

Manufacturer:

DMG

Model:

DMC 125U HI DYN

Condition:

Not Specified

Year:

2001

Stock #:

34774

Status:

Sold

Description:

DMG DMC 125U Hi Dyn, HEIDENHAIN CONTRO, 7 A.P.C., 180 ATC, CTS PUMP, PROBE, HSK63 TAPER

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED DMG DMU 125LS5 5-AXIS CNC LINEAR PALLET POOL
UNIVERSAL MACHINING CENTER
NEW 2001

SPECIFICATIONS:

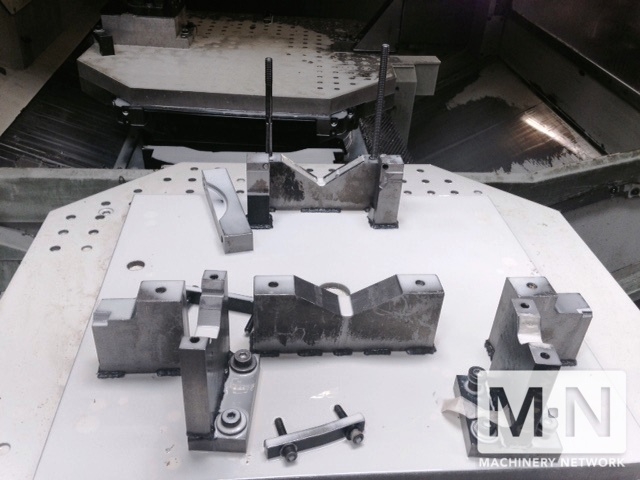

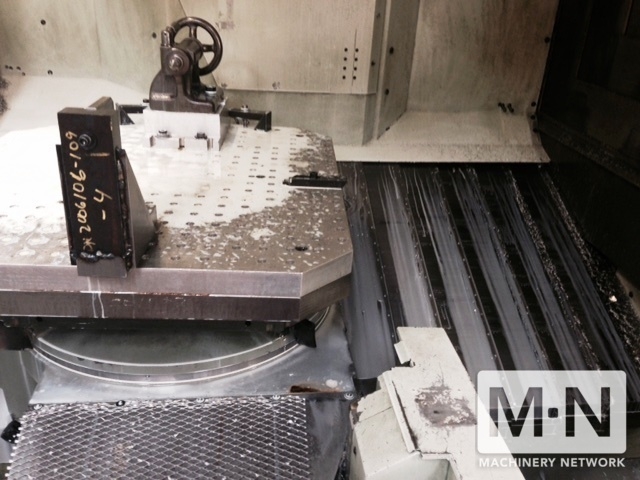

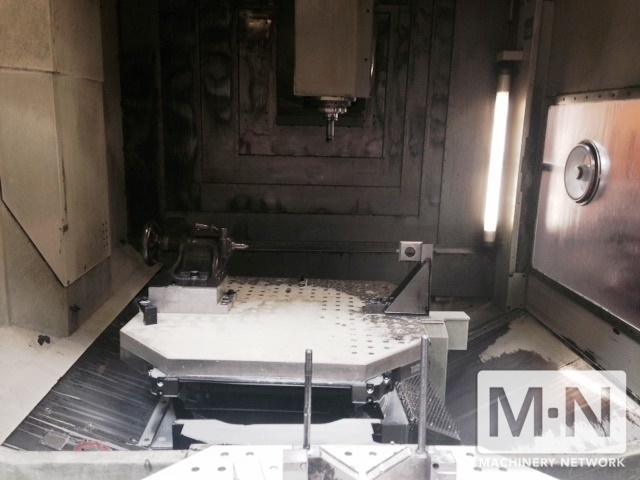

PALLET SIZE:.............. 42" SQ. Pallets
MAX PALLET WEIGHT:.........2,204 LBS.
TRAVELS:
X-AXIS:....................49"
Y-AXIS:....................34"
Z-AXIS:....................31"
C-AXIS:....................360 DEG.
A-AXIS:....................130 DEG.

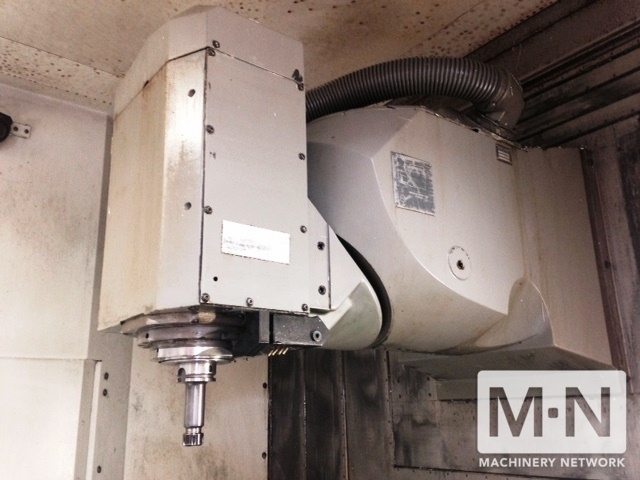

TILTING RANGE OF SPINDLE:..180 DEG.
SPINDLE SPEED:.............10,000 RPM
SPINDLE TAPER:.............HSK-63A
RAPIDS:....................1,000 IPM

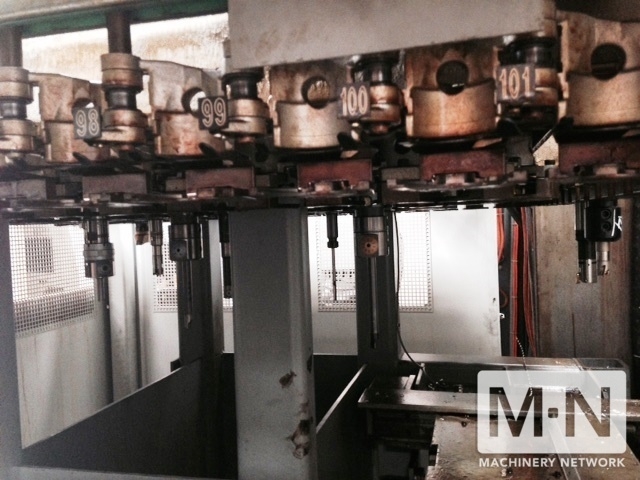

TOOLS:.....................180 ATC
MAX TOOL LENGTH:...........19.685"
MAX TOOL WEIGHT:...........66 LBS.
MAX TOOL DIA.:.............230 MM

EQUIPPED WITH:

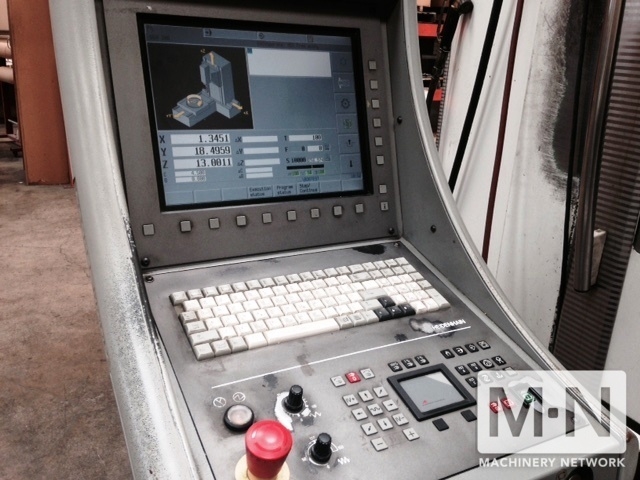

HEIDENHAIN MILLPLUS CONTROL
BLUM TOOL LASER
RENISHAW 700M PROBE
COOLANT CHILLER

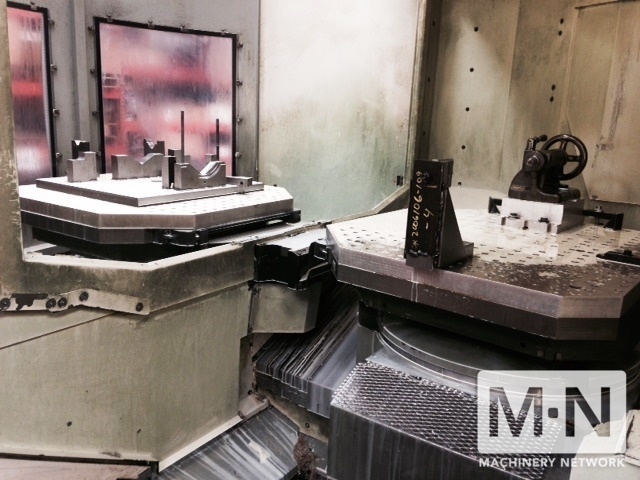

4 LINEAR PALLET POOL STANDS
1 SET UP STAND
CELL CONTROLLER
HIGH PRESSURE THRU THE TOOL 80 BAR

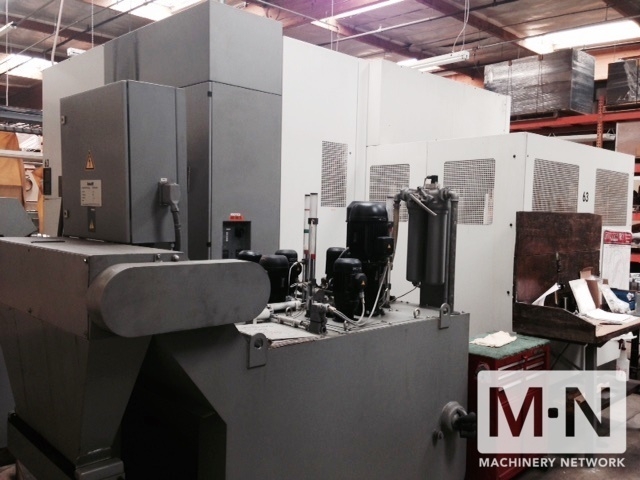

HIGH PRESSURE PUMP AND FILTER
ALL AVAILABLE MANUALS
UNDER POWER READY TO INSPECT
18,714 HOURS ON THE SPINDLE
WELL MAINTAINED
IN HOUSE SERVICE MANAGER IS AN EX DMG SERVICE EMPLOYEE
