HAAS HRT450
Type:
TABLES, ROTARY
Manufacturer:
HAAS
Model:
HRT450
Condition:
Not Specified
Stock #:
34742
Status:
Sold
Description:

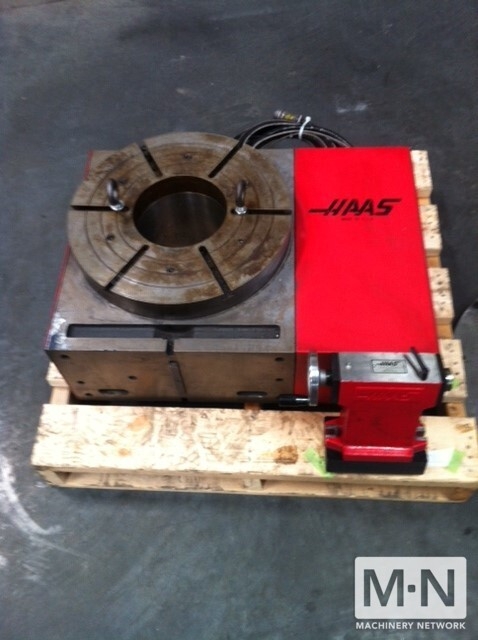

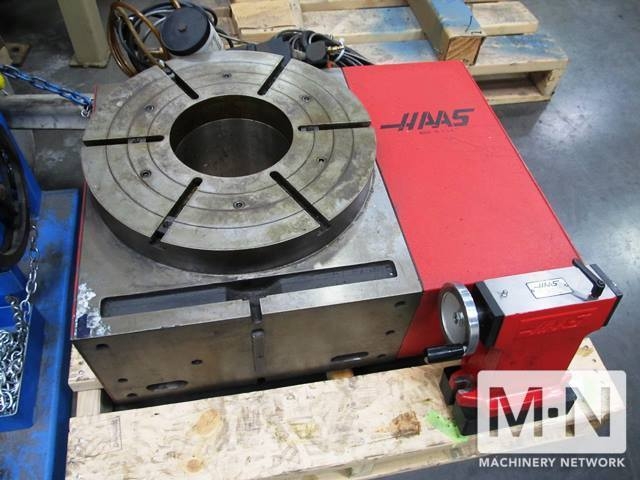

HAAS HRT450 18" Diameter CNC Rotary Table
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1)USED HAAS HRT450 18" DIAMETER CNC BRUSH STYLE ROTARY TABLE
NEW 2000
SPECIFICATIONS:
TABLE DIAMETER ........................ 17.7"
NUMBER OF T-SLOTS ..................... 6 @ 60 DEG.
TABLE WEIGHT CAPACITY ................. 850 LBS.
THRU HOLE ............................. 7.5"
MAX SPEED ............................. 0.001-40 DEG./ SECOND
MAX TORQUE ............................ 400 FT-LB
RUNOUT MAX. ........................... 0.0015"
BACKLASH ............................. 30 ARC/SEC
CENTER HEIGHT ......................... 11.500 +/-0.001"
GEAR RATIO ............................ 72:1
TIMING ................................ 3:1
WORM GEAR DIA. ........................ 13.5"
WEIGHT OF BRUSHLESS CONTROL ........... 14.2 LBS.
EQUIPPED WITH:
LARGE THRU-HOLE
MOUNTED HORIZONTALLY OR VERTICALLY
COOLANT-RESISTANT POLYURETHANE CONDUIT & SEALS
SIMPLE CNC INTERFACING VIA M CODE
DIRECT CONNECTION TO HAAS MACHINES
VARIABLE FEED RATES
LINEAR, ARC & SPIRAL MILLING
HIGH ACCURACY REPEATABILITY
NEW 2000
SPECIFICATIONS:
TABLE DIAMETER ........................ 17.7"
NUMBER OF T-SLOTS ..................... 6 @ 60 DEG.
TABLE WEIGHT CAPACITY ................. 850 LBS.
THRU HOLE ............................. 7.5"
MAX SPEED ............................. 0.001-40 DEG./ SECOND
MAX TORQUE ............................ 400 FT-LB
RUNOUT MAX. ........................... 0.0015"
BACKLASH ............................. 30 ARC/SEC
CENTER HEIGHT ......................... 11.500 +/-0.001"
GEAR RATIO ............................ 72:1
TIMING ................................ 3:1
WORM GEAR DIA. ........................ 13.5"
WEIGHT OF BRUSHLESS CONTROL ........... 14.2 LBS.
EQUIPPED WITH:
LARGE THRU-HOLE
MOUNTED HORIZONTALLY OR VERTICALLY
COOLANT-RESISTANT POLYURETHANE CONDUIT & SEALS
SIMPLE CNC INTERFACING VIA M CODE
DIRECT CONNECTION TO HAAS MACHINES
VARIABLE FEED RATES
LINEAR, ARC & SPIRAL MILLING
HIGH ACCURACY REPEATABILITY
