HAAS HRT-210
Type:
TABLES, ROTARY
Manufacturer:
HAAS
Model:
HRT-210
Condition:
Not Specified
Year:
1996
Stock #:
26030
Status:
Sold
Description:
8.3" PLATTER, 6" CENTER HEIGHT **LOW HOURS**
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

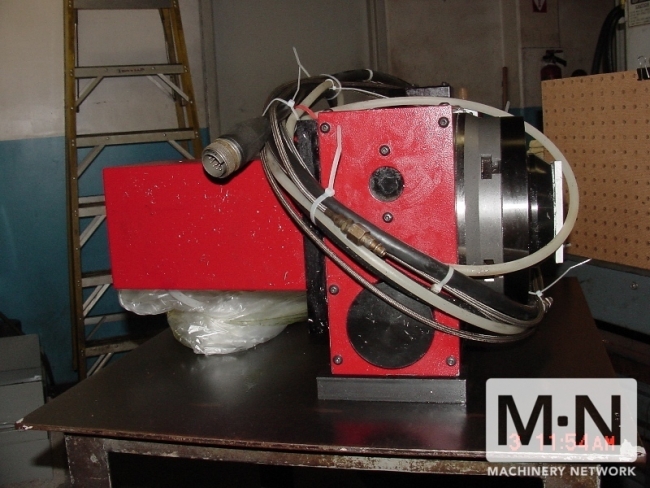

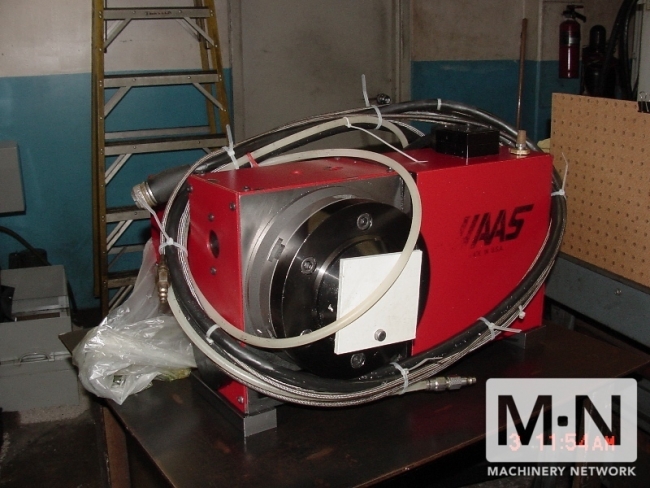

(1) HAAS HRT-210 ROTARY TABLE, NEW 1996
PLATTEN SIZE........................... 8.27"
TORQUE (ft-lb)......................... 210
RUNOUT MAX (in)........................ 0.0005
BACKLASH (ARC-SEC.).................... 30
SPEEDS(DEG-SEC)........................ 0.001 - 60
CENTER HEIGHT.......................... 6"
BRAKE TORQUE(ft-LBS)................... 200
ACCURACY (ARC-SEC)..................... -/+ 15
REPEATABILITY(ARC-SEC)................. 10
RESOUTION(DEG)......................... 0.001
MAX. ROTATION STEP(DEG)................ 999.999
WORM GEAR DIAMETER(IN)................. 6.30
MOTOR.................................. 1.5 HP (DC)
GEAR RATIO(WORM & GEAR)................ 90:1
TIMING BELT............................ 2:1
WEIGHT................................. 165 LBS
PLATTEN SIZE........................... 8.27"
TORQUE (ft-lb)......................... 210
RUNOUT MAX (in)........................ 0.0005
BACKLASH (ARC-SEC.).................... 30
SPEEDS(DEG-SEC)........................ 0.001 - 60
CENTER HEIGHT.......................... 6"
BRAKE TORQUE(ft-LBS)................... 200
ACCURACY (ARC-SEC)..................... -/+ 15
REPEATABILITY(ARC-SEC)................. 10
RESOUTION(DEG)......................... 0.001
MAX. ROTATION STEP(DEG)................ 999.999
WORM GEAR DIAMETER(IN)................. 6.30
MOTOR.................................. 1.5 HP (DC)
GEAR RATIO(WORM & GEAR)................ 90:1
TIMING BELT............................ 2:1
WEIGHT................................. 165 LBS
