SHARP SG614

Type:

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Manufacturer:

SHARP

Model:

SG614

Condition:

Not Specified

Year:

1996

Stock #:

33865

Status:

Sold

Description:

6" x 14" hand feed, EM chuck, 1 axis DRO

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

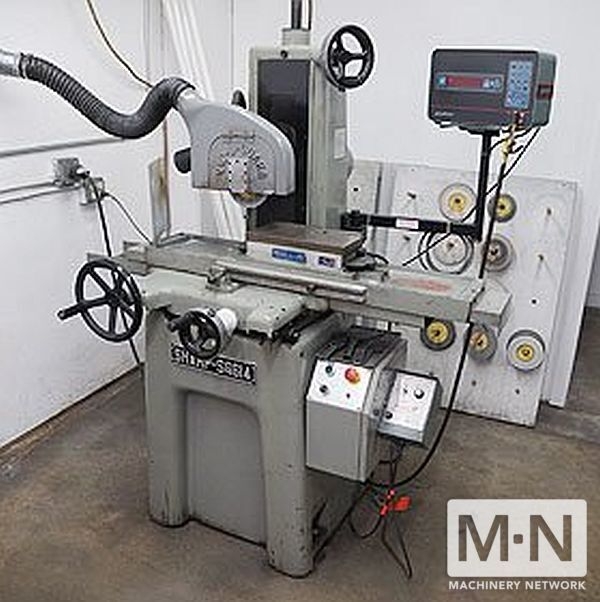

(1)USED 6" X 14" SHARP SG-614 HAND FEED SURFACE GRINDER
S/N 85C 1138, NEW: 1996

SPECIFICATIONS:
WIDTH AND LENGTH GROUND .................. 6.3" X 14.5"
LONGITUDINAL TRAVEL ...................... 15"
CROSS FEED TRAVEL ........................ 7"
MAX. DISTANCE CENTER OF SPINDLE - TABLE .. 15.7"
STD. GRINDING WHEEL ...................... 7" X 1/2" X 1- 1/4"
ELEVATING HANDWHEEL GRAD. ................ 0.0002"
VERT. MOVEMENT - WHEEL PER HANDWHEEL REV.. 0.05"
CROSS FEED HANDWHEEL GRAD................. 0.00005"
CROSS MOVEMENT - SADDLE PER HANDWHEEL REV. 0.2"
SPINDLE SPEED............................. 3,450 RPM
OPERATING SPACE........................... 40" X 40" X 71"H
APPROXIMATE MACHINE WEIGHT................ 1,210 LBS

EQUIPPED WITH:

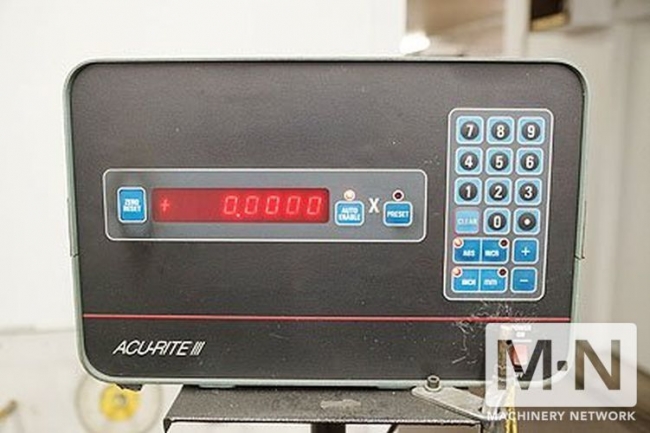

"ACU-RITE" SINGLE AXIS DIGITAL READOUT DISPLAY
1.5 HP 3/60/208-230-460 VOLT DIRECT DRIVE
"CARTRIDGE TYPE" SPINDLE
V AND FLAT WAY CONSTRUCTION
TURCITE B ON WAYS (LOW FRICTION MATERIAL)
AUTOMATIC LUBRICATION SYSTEM

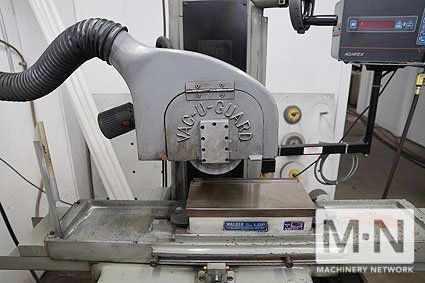

6" X 14" O.S. WALKER FINE-DIVISION "LBP"
ELECTRO-MAGNETIC CHUCK
O.S. WALKER VARIABLE HOLD NEUTROFIER CONTROL
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS

Inspect in New Jersey
