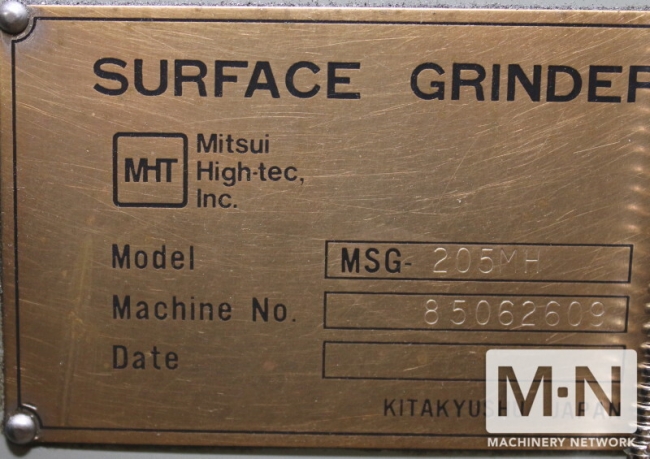

MITSUI MSG-205MH
Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
MITSUI
Model:
MSG-205MH
Condition:
Not Specified
Year:
1985
Stock #:
33783
Status:
Sold
Description:
6"x18", Hand Feed, DRO, mag chuck
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

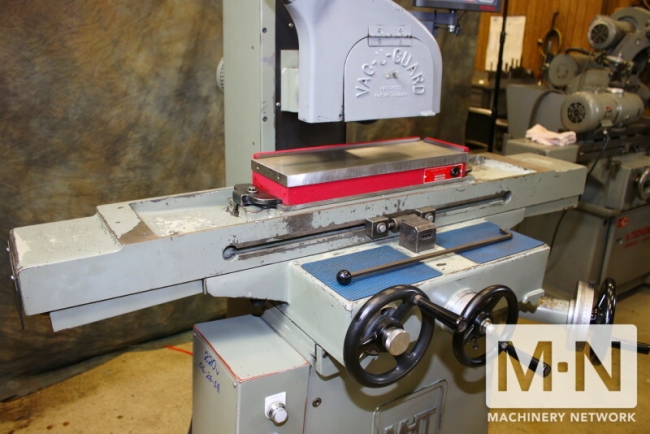

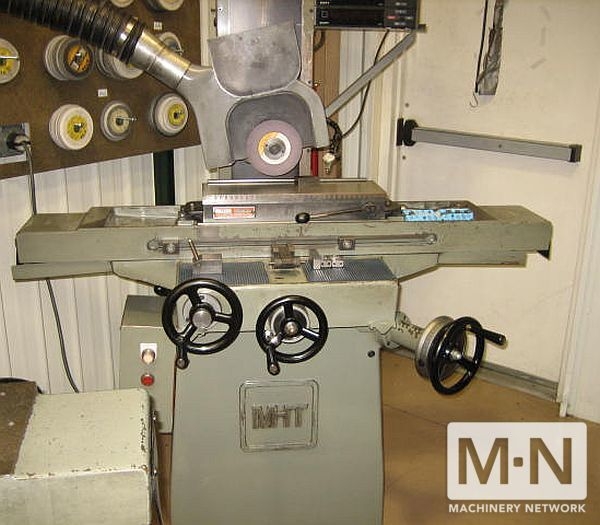

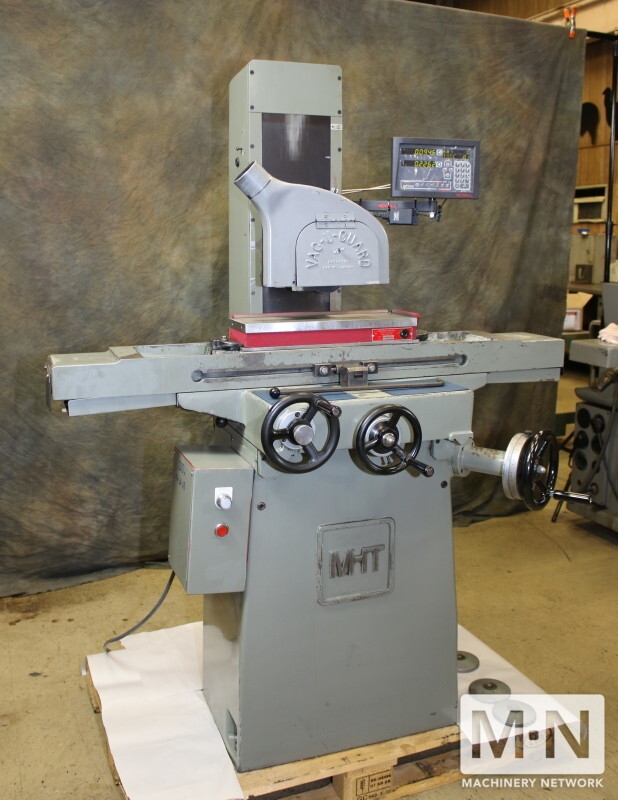

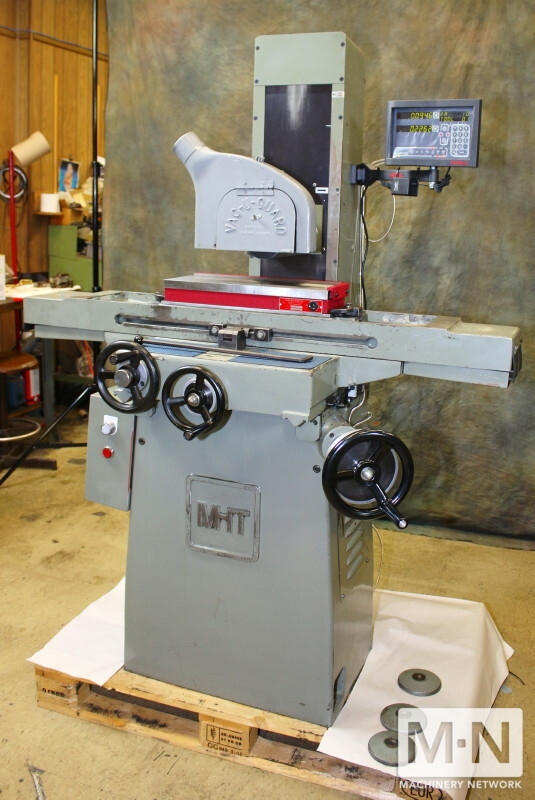

(1) USED 6" X 18" MITSUI HIGH-TEC MODEL MSG-205MH PRECISION HAND FEED SURFACE GRINDER
NEW 1985
SPECIFICATIONS
WIDTH & LENGTH GROUND ......................... 6" X 18"
TABLE TO SPINDLE CENTER ....................... 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ........ 11"
LONGITUDINAL TABLE TRAVEL ..................... 20"
CROSS TRAVEL .................................. 8"
GRINDING WHEEL CAPACITY .................. 8" X 3/4" X 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL (.001" GRAD.)..0.100"
VERTICAL FEED PER REV.OF HAND WHEEL(.0001" GRAD)0.0500"
SPINDLE MOTOR ................................. 1 1/3 HP
APPROX. WEIGHT ................................ 1,900 LBS.
APPROX. DIMENSIONS .................... 58" L X 46" W X 71"H
EQUIPPED WITH:
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS & (1) FLAT WAY
DRIVEN BY CABLE SYSTEM
HARDENED & REPLACEABLE STEEL WAYS ON TABLE
PRECISION CARTRIDGE SPINDLE
AUTOMATIC LUBRICATION SYSTEM

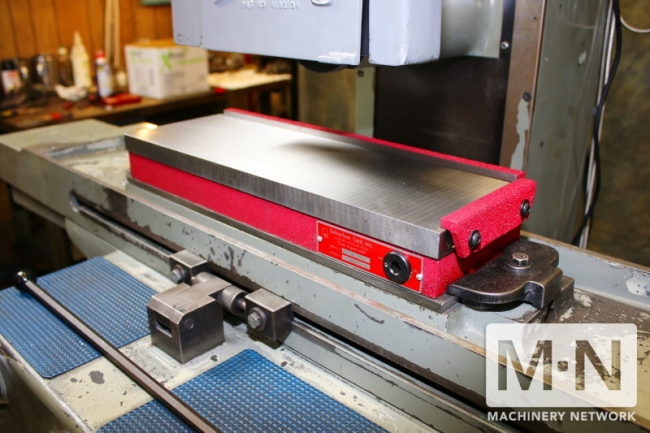

NEW 6" X 18" SUBURBAN FINE-POLE PERMANENT MAGNETIC CHUCK

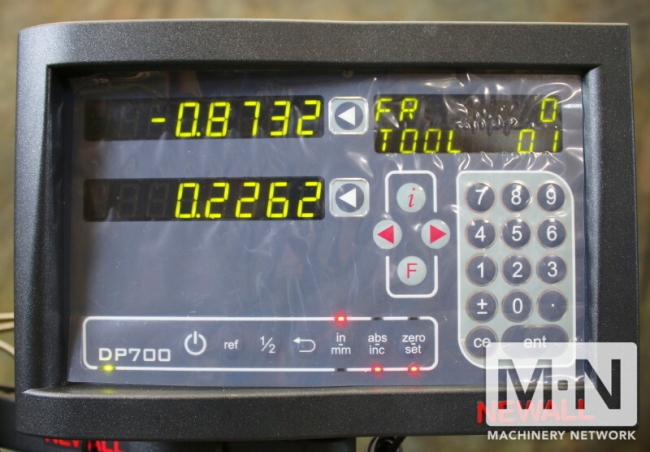

NEW NEWALL 2 AXIS DIGITAL READ-OUT
RECENTLY SERVICED
IN EXCEPTIONAL CONDITION
INSPECT IN HARRISON, NJ
NEW 1985
SPECIFICATIONS
WIDTH & LENGTH GROUND ......................... 6" X 18"
TABLE TO SPINDLE CENTER ....................... 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ........ 11"
LONGITUDINAL TABLE TRAVEL ..................... 20"
CROSS TRAVEL .................................. 8"
GRINDING WHEEL CAPACITY .................. 8" X 3/4" X 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL (.001" GRAD.)..0.100"
VERTICAL FEED PER REV.OF HAND WHEEL(.0001" GRAD)0.0500"
SPINDLE MOTOR ................................. 1 1/3 HP
APPROX. WEIGHT ................................ 1,900 LBS.
APPROX. DIMENSIONS .................... 58" L X 46" W X 71"H
EQUIPPED WITH:
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS & (1) FLAT WAY
DRIVEN BY CABLE SYSTEM
HARDENED & REPLACEABLE STEEL WAYS ON TABLE
PRECISION CARTRIDGE SPINDLE
AUTOMATIC LUBRICATION SYSTEM
NEW 6" X 18" SUBURBAN FINE-POLE PERMANENT MAGNETIC CHUCK
NEW NEWALL 2 AXIS DIGITAL READ-OUT
RECENTLY SERVICED
IN EXCEPTIONAL CONDITION
INSPECT IN HARRISON, NJ
