MAKINO A81

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MAKINO

Model:

A81

Condition:

Not Specified

Year:

2005

Stock #:

32021

Status:

Sold

Description:

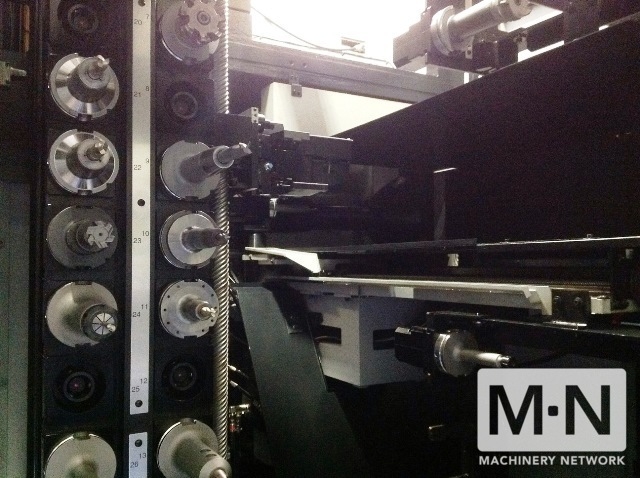

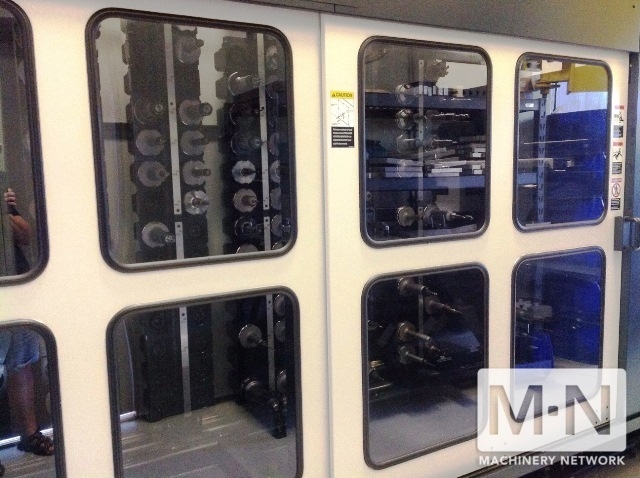

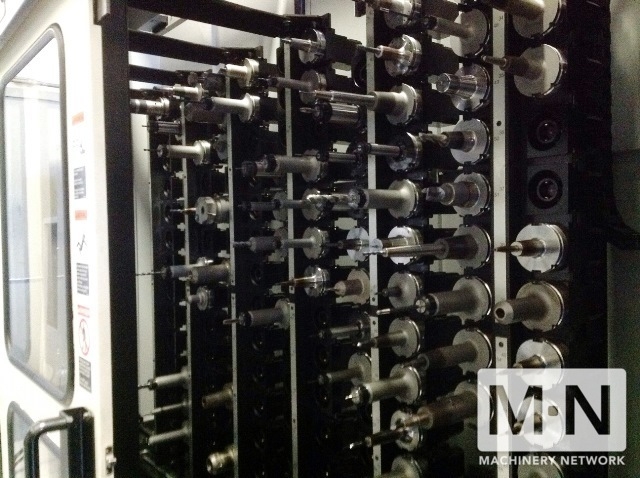

MAKINO A81, FANUC 300 MAKINO PRO5 CTRL, 168 TOOL MATRIX MAGAZINE, 20K RPM, HSK-A100

Location:

Washington, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

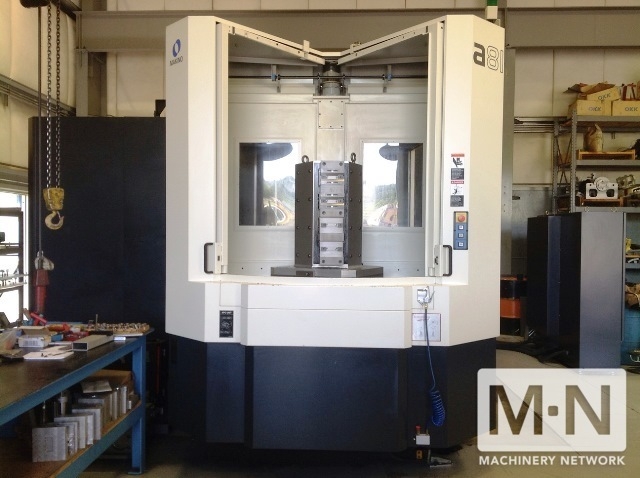

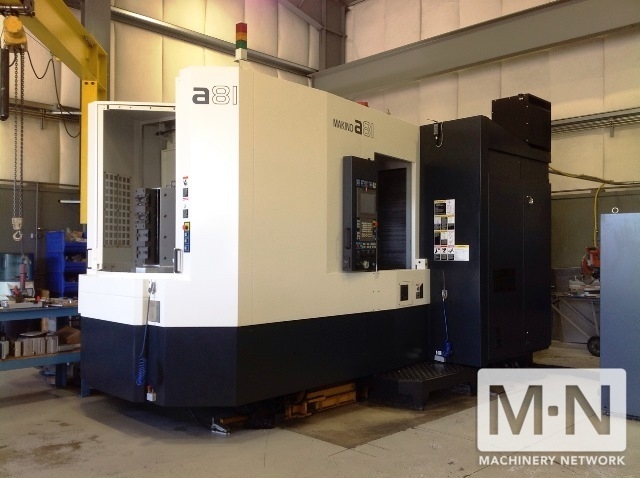

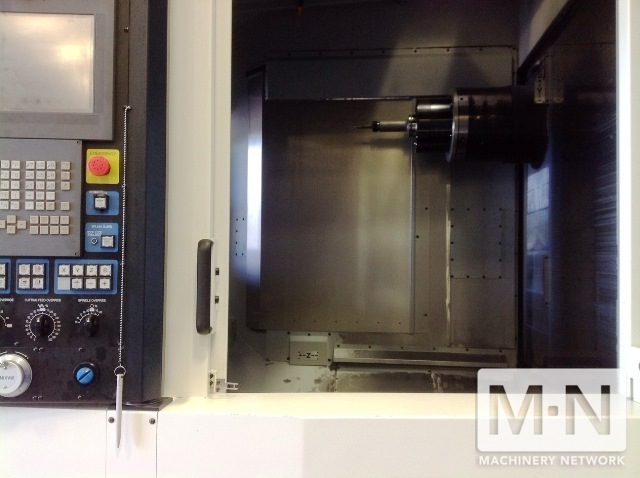

(1) USED MAKINO A81 CNC HORIZONTAL MACHINING CENTER INSTALLED 2005 OPERATING HOURS: 3,000
SPECIFICATIONS: PALLET DIMENSION: ............. 23.62" X 23.62" NUMBER OF PALLETS: ............ 2 MAX PAYLOAD: .................. 2,640 LBS X-AXIS TRAVEL: ................ 35.4" Y-AXIS TRAVEL: ................ 31.5" Z-AXIS TRAVEL: ................ 35.4" SPINDLE SPEED: ................ 20,000 RPM SPINDLE CENTER TO TOP: ........ 34.6" NUMBER OF TOOLS: .............. 186 TOOL MATRIX MAGAZINE MAIN MOTOR: ................... 73HP TAPER: ........................ CAT 50 SPINDLE STARTING TIME: ........ 3.8 SECS (10,000RPM) SPINDLE TORQUE: ............... 304NM RAPID TRAVERSE: ............... 1969IPM TOOL CHANGE TIME: ............. 1.7 SECS MAX TOOL DIAMETER: ............ 11.8" MAX TOOL LENGTH: .............. 27.16" MAX TOOL WEIGHT: .............. 66.1 LBS MACHINE DIMENSIONS (LXWXH): ... 153.6" X 219.8" X 131.6" MACHINE WEIGHT: ............... 35,274 LBS

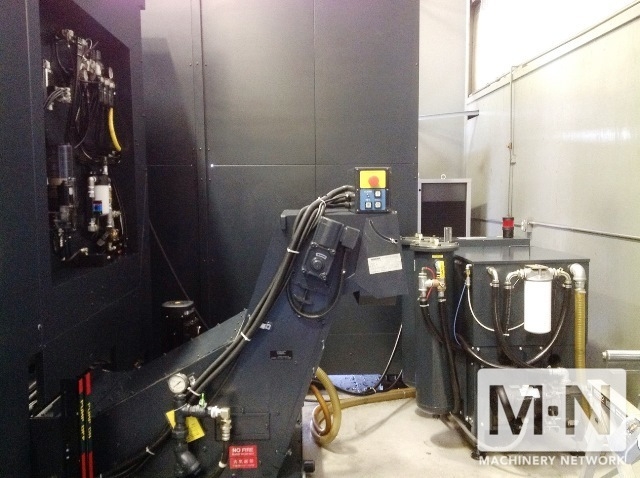

EQUIPPED WITH: FANUC 300 SERIES MAKINO PRO 5 CONTROL FULL 4TH AXIS M&H PROBE 1000 PSI COOLANT THROUGH SPINDLE CHIP CONVEYOR
