FADAL VMC3016

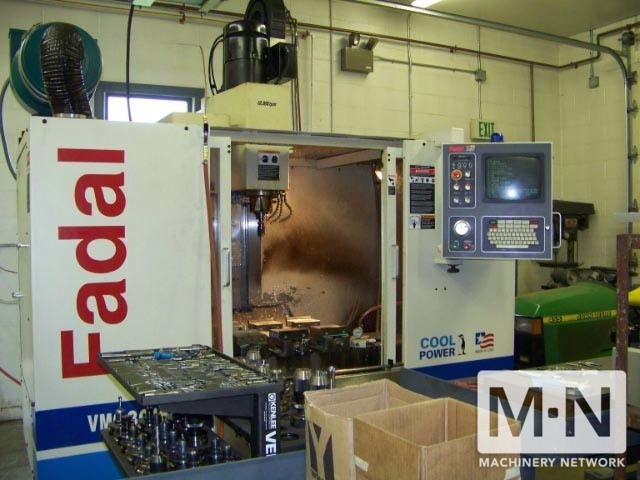

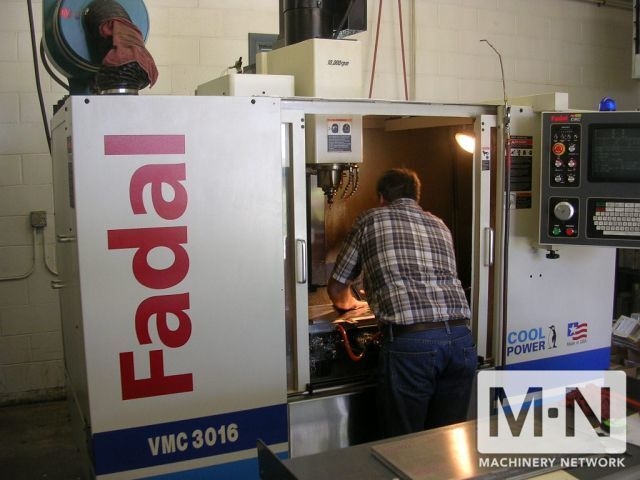

(1) USED FADAL MODEL VMC3016 VMC WITH FADAL MP CONTROL
NEW 2000

SPECIFICATIONS:
Table Size:
39"x16" Floor To Table Surface: 31" T-Slots (No. X Width X Span): 3 X .562" X 4.33"
Cutting Feed Rate (X/Y/Z): .01-400 IPM (600" AT 150%)
Rapid Feed Rate (X/Y/Z): 900 IPM (X/Y) 700 IPM (Z)
Max. Weight On Table: 2,736 Lbs.
Axis Drive Motor (X/Y/Z): Axis 3,800 Lbs. Thrust (Peak)
Ball Screw Size: 1.58" Dia. X,Y,Z
Longitudinal (X Axis): 30"
Cross (Y Axis): 16" Vertical (Z Axis): 28" Spindle Nose To Table 4"-32" Spindle Center To Column Ways: 16" Main Motor - Auto 2 Speed Vector Drive: 15 HP (Peak)
Torque (Peak): 160 FT-LBS/220 FT-LBS
Glass Scales (X,Y,Z): YES Spindle Speed:
10 - 10,000 RPM (AIR/OIL)

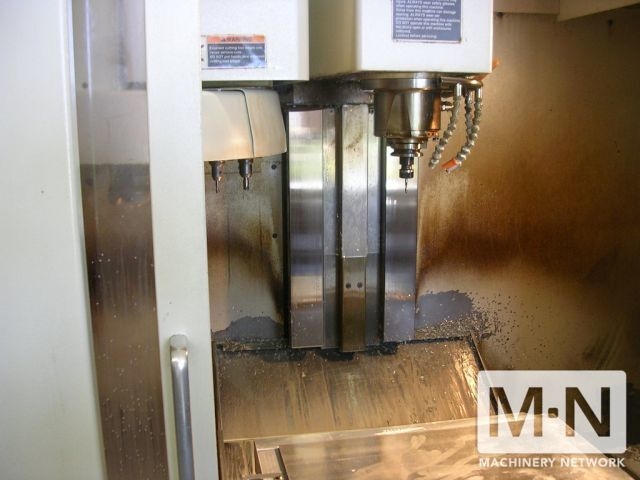

Spindle Orientation: Electromechanical Spindle Taper: CAT 40
ATC, Number of Tools: 21 ATC, Tool Selection: Random/Bi-Directional Max. Tool Diameter:
3" (Without Adjacent Tools): 4.5" Max. Tool Length: 15" Max. Tool Weight: 15 LBS.
Machine Width X Depth 98" W x 77" D
Machine Maximum Height: 103" Machine Weight: 8,550 LBS

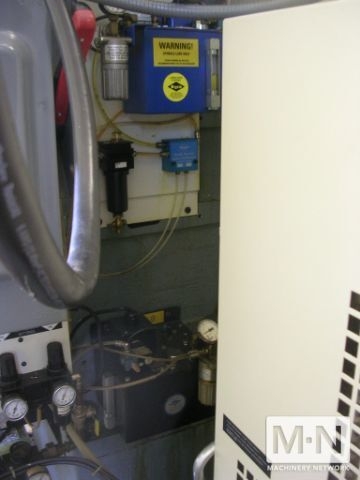

Air Pressure Requirement: 80 PSI, 15 SCFM
Power Requirement (3-Phase): 40/45 AMPS
Cool Power System: Spindle/ Head Stock/ Ballscrews
Electrics: 220 Volts, 3 PH, 60 CYC

EQUIPPED WITH

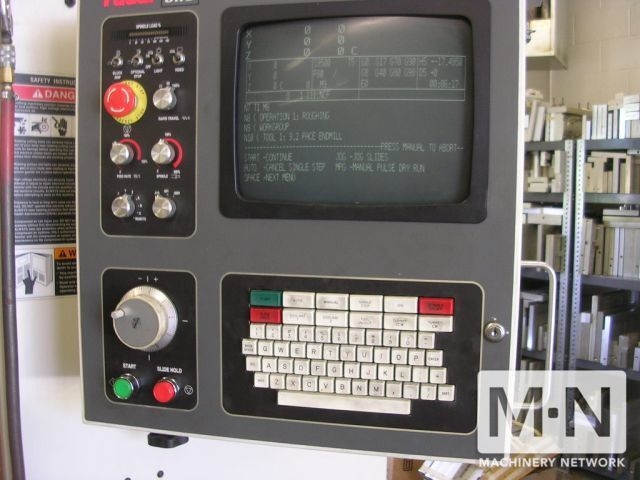

FADAL MP CONTROL WITH 422K EXPANDED MEMORY
HIGH COLUMN
HIGH TORQUE
SERVO COOLANT
AIR OIL
COOL POWER
RIGID TAP
WIRED FOR PROBING
HYDRO SWEEP
