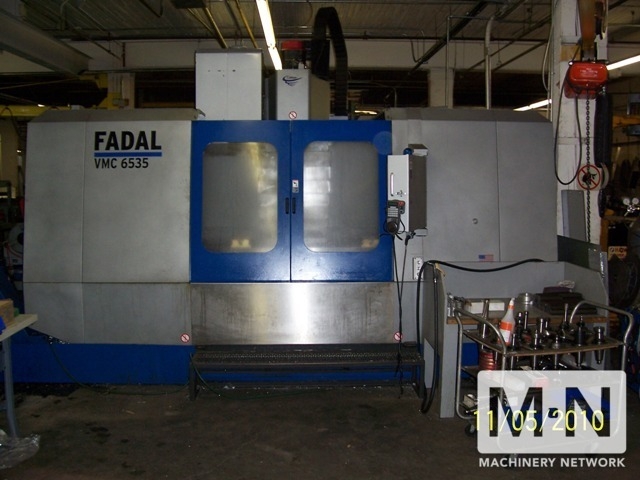

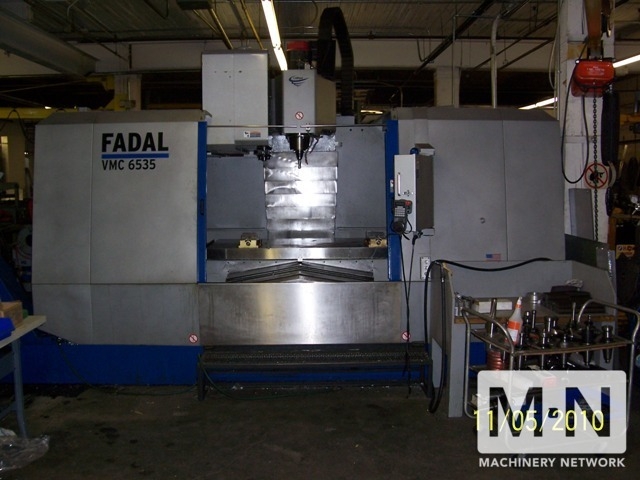

FADAL VMC-6535

Type:

Vertical Machining Centers

Manufacturer:

FADAL

Model:

VMC-6535

Condition:

Not Specified

Year:

2006

Stock #:

29721

Status:

Sold

Description:

FANUC 18i, 50 TAPER

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) FADAL MODEL VMC 6535-50 3-AXIS VERTICAL MACHINING CENTER
NEW 2006

SPECIFICATIONS:

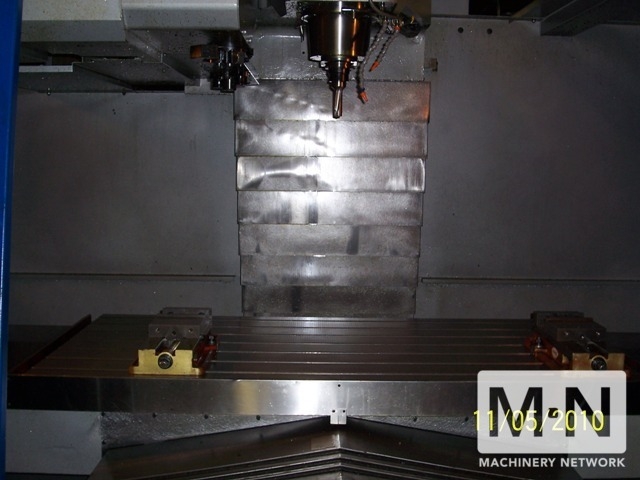

TABLE SIZE:.................... 75" X 35"
TRAVELS: X AXIS:............... 65"
Y AXIS:............... 35"
Z AXIS:............... 34"
FLOOR TO TABLE SURFACE:........ 41"
T-SLOTS (NO. X WIDTH X SPAN):.. 7 X .709" X 5"
CUTTING FEED RATE (X/Y/Z):..... 01-400 IPM / 600 @ 150%
RAPID TRAVEL RATE (X/Y/Z):..... 900 (X/Y) 700(Z) IPM
MAX. WEIGHT ON TABLE:.......... 4,250 LBS.
C AXIS DRIVE MOTOR (X/Y/Z):.... AC, 5,000 LBS.* THRUST
BALL SCREW SIZE:............... 63 MM DIA. (X/Y/Z)
SPDL NOSE TO TABLE:............ 4" - 38"
SPDL CENTER TO COLUMN WAYS:.... 34"
MAIN MOTOR - SPDL HP:.......... 22.5 HP* / 30 HP*B
SPINDLE TORQUE:................ 220/270B FT.-LBS.
ACCURACY, AXIS POSITIONING:.... ± .0002"
ACCURACY, AXIS REPEATABILITY:.. ± .0001"

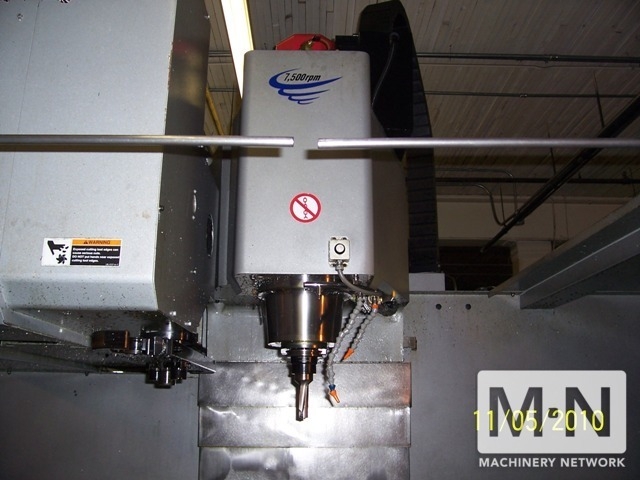

SPINDLE SPEED:................. 7,500 RPM
SPINDLE TAPER:................. NO. 50
MAX. TOOL DIAMETER:............ 4"
(WITHOUT ADJACENT TOOLS):...... 6"
MAX. TOOL LENGTH:.............. 15"
MAX. TOOL WEIGHT:.............. 15 LBS.
MACHINE WIDTH X DEPTH:......... 214" X 130"
MACHINE MAXIMUM HEIGHT:........ 145"
MACHINE WEIGHT:................ 28,400 LBS.
AIR PRESSURE REQ.(MOMENTARY):.. 80-120 PSI, 15 SCFM

EQUIPPED WITH:

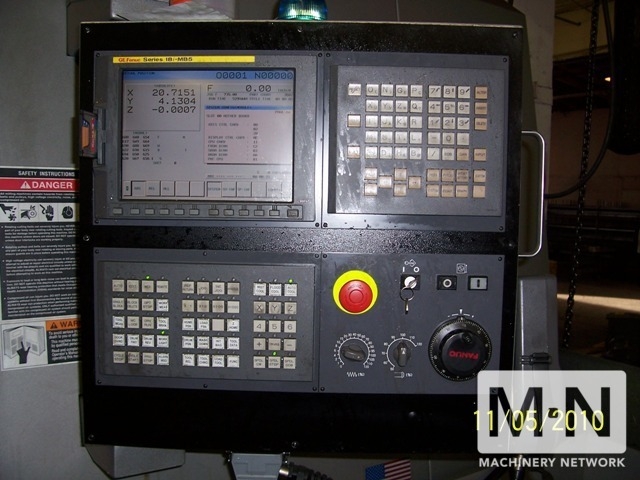

FANUC 18i-MB5 CNC CONTROL
COOLANT THRU SPINDLE
CHIP CONVEYOR
221 CUTTUNG HOURS!!!!
RENISHAW PROBE
