OLYMPIA H 100X60

Type:

BORING MILLS, HORIZONTAL, TABLE TYPE, N/C & CNC

Manufacturer:

OLYMPIA

Model:

H 100X60

Condition:

Not Specified

Year:

1997

Stock #:

29923

Status:

Sold

Description:

5", FANUC 15M, 98"x63"x28"x39", 63"X49" ROTAB, 2500 RPM

Videos:

Product Video #1

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

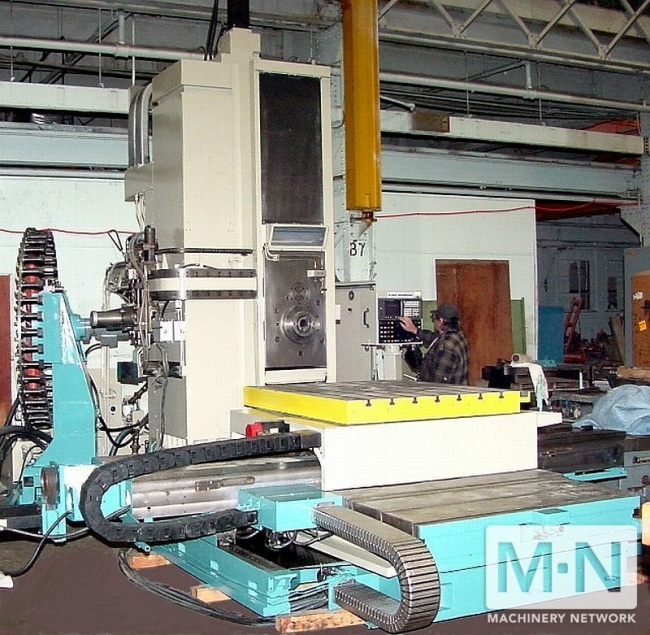

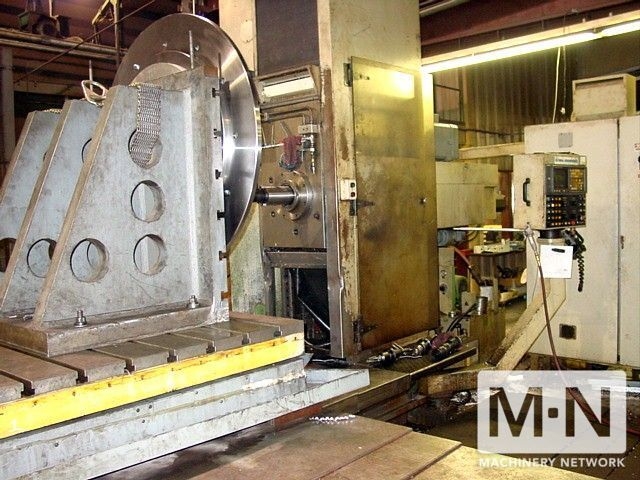

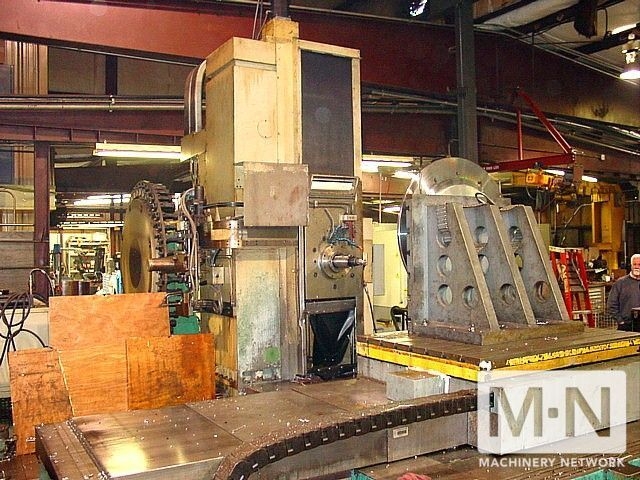

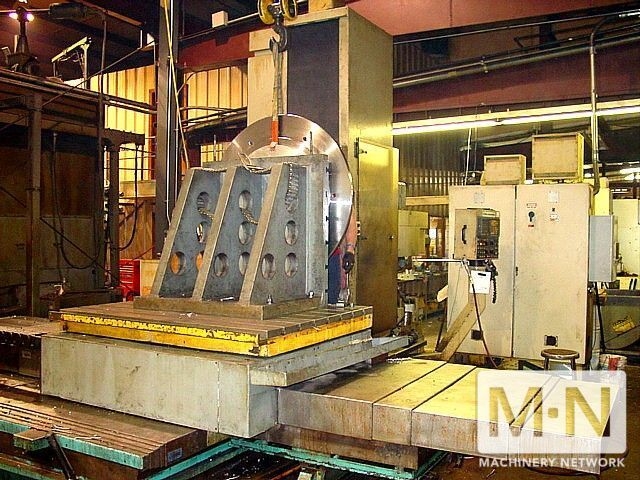

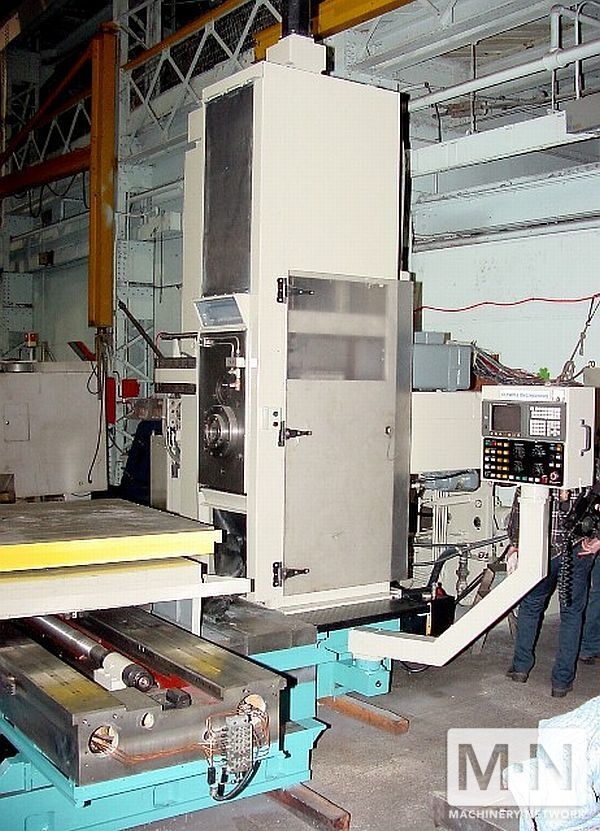

5" OLYMPIA CNC HORIZONTAL BORING MILL,
MODEL H100X60, NEW 1997

SPECIFICATIONS:

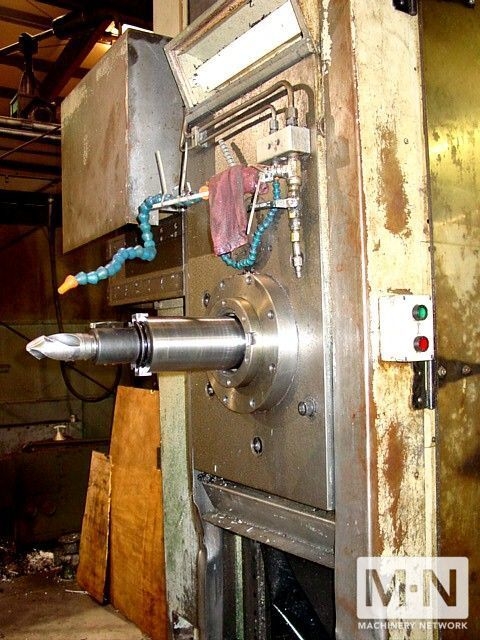

SPINDLE DIAMETER .............................. 5"
SPINDLE INSIDE TAPER .......................... ISO 50

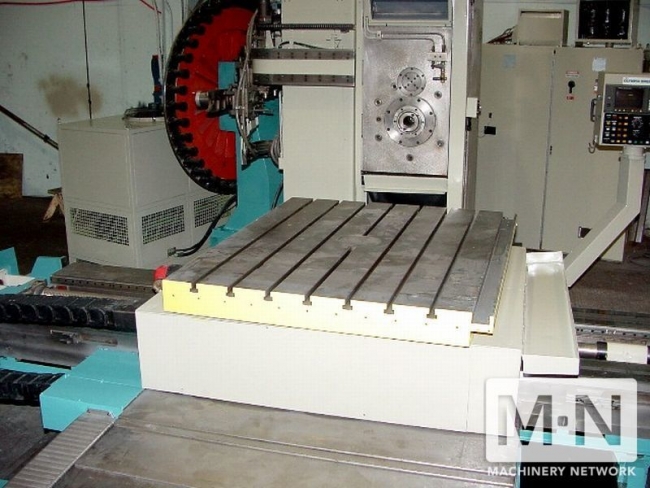

ROTARY TABLE SIZE ............................. 63" X 49"
MAXIMUM TABLE LOAD ............................ 22,000 LB
TABLE CROSS TRAVEL (X AXIS) ................... 98"
SPINDLE HEAD VERT. TRAVEL (Y AXIS) ............ 63"
SPINDLE TRAVEL (Z AXIS) ....................... 28"
TABLE LONG. TRAVEL (W AXIS) ................... 39"
DISTANCE-SPINDLE END TO TABLE CENTER .......... 30" - 70"
SPINDLE SPEED RANGE (INF VARIABLE) ............ 4 - 2500 RPM
SPINDLE MOTOR ................................. 50 HP
FEED RATES (INF. VARIABLE) .................... 0.04 - 276 IPM
RAPID TRAVERSE SPEED .......................... 23 FPM
MACHINE OVERALL DIMS .......................... 20'LX18'WX15'H
MACHINE WEIGHT ................................ 48,400 LB

EQUIPPED WITH:

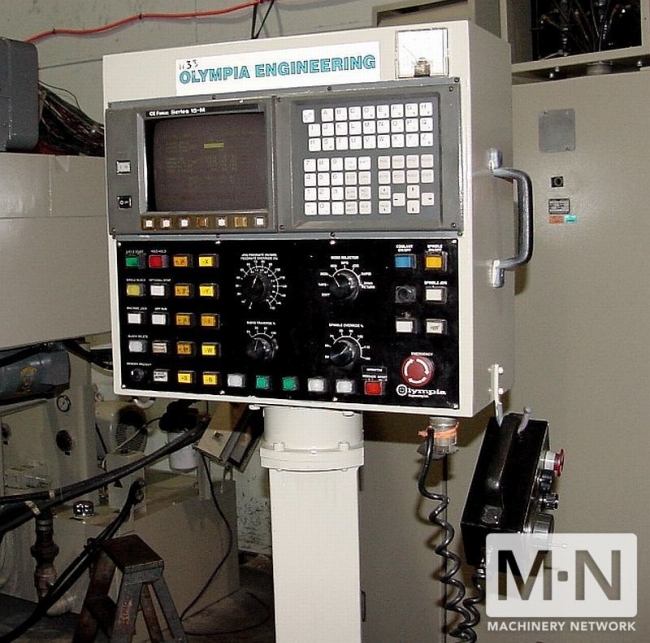

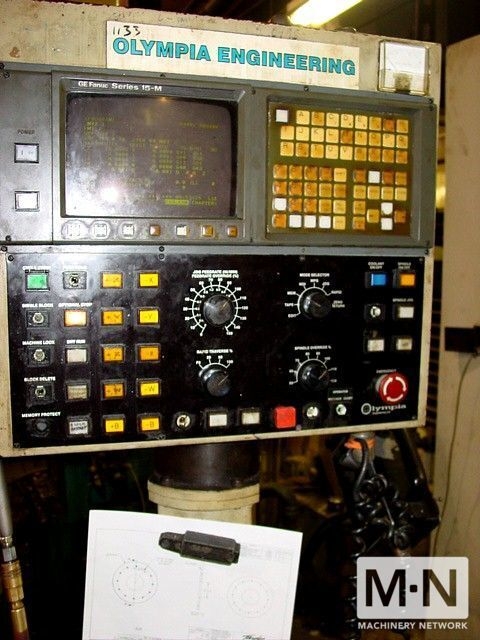

FANUC 15M CNC CONTROL

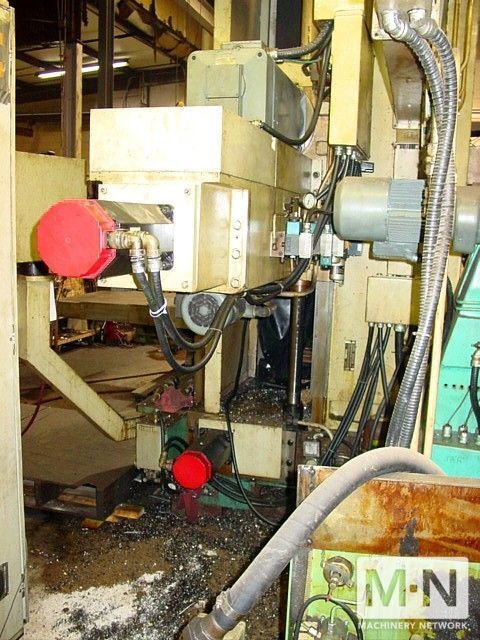

FANUC AC SERVOS, ALL AXES

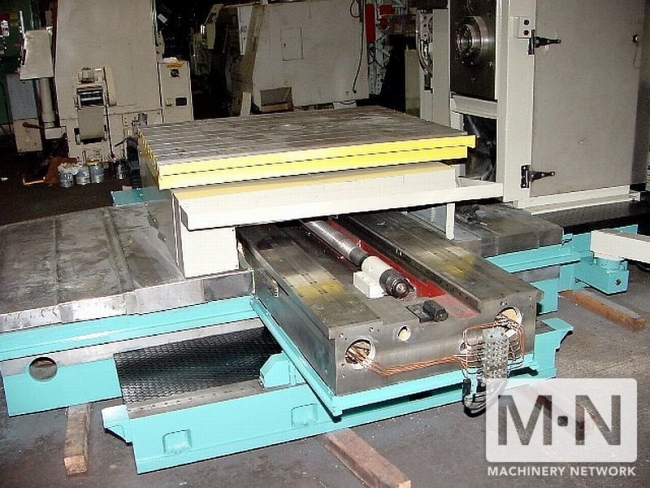

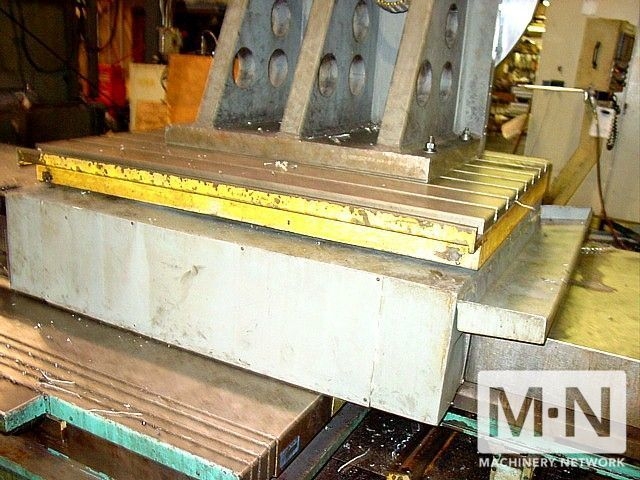

B-AXIS ROTARY TABLE

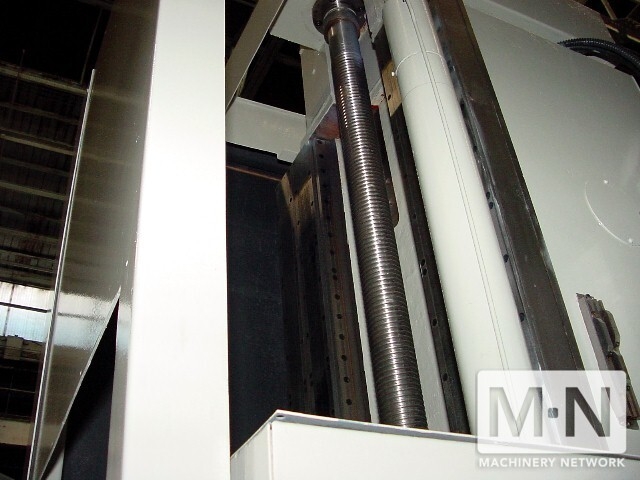

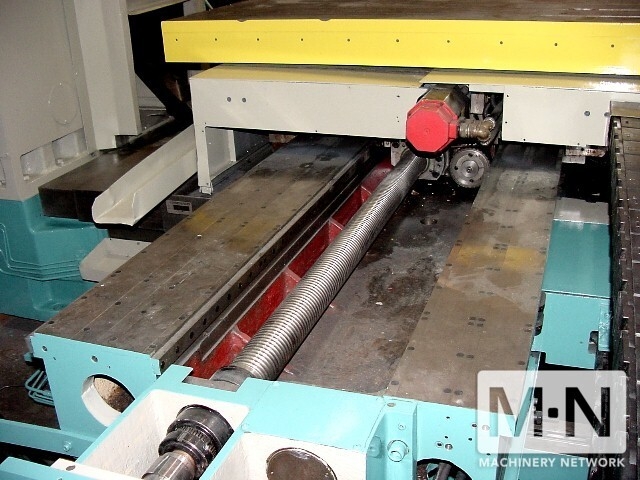

BALL SCREWS, ALL AXES
HARDENED & GROUND BOX WAYS

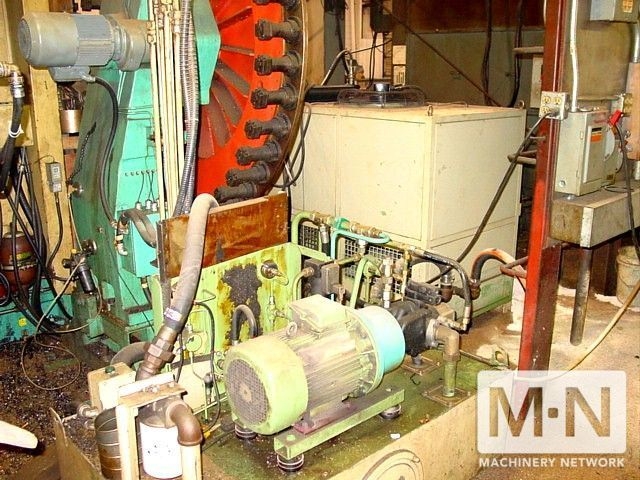

HYDRAULIC HEADSTOCK COUNTER BALANCE
50 HORSE POWER SPINDLE
