GIDDINGS & LEWIS PC-50
Type:
BORING MILLS, HORIZONTAL, TABLE TYPE, N/C & CNC
Manufacturer:
GIDDINGS & LEWIS
Model:
PC-50
Condition:
Not Specified
Year:
1978
Stock #:
24484
Status:
Sold
Description:
800M CTRL, 72"x72"x36"x36", 60"X48" TBL, 5" SPDL
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

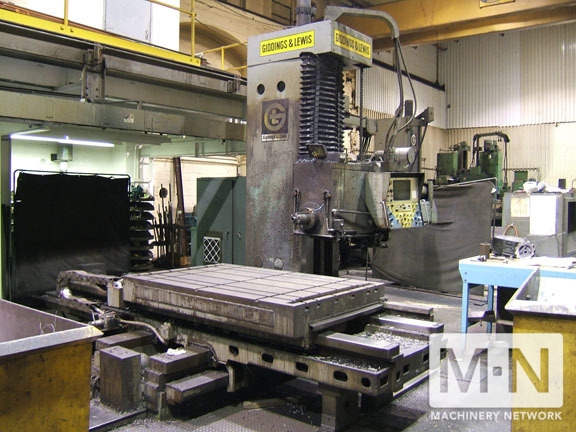

(1) USED GIDDINGS & LEWIS PC-50 CNC HORIZONTAL BORING MILL
S/N: 445-17-78, NEW 1978
SPECIFICATIONS:
Spindle diameter: 5"
Table Size: 48" x 60"
X-Axis Table Travel: 72"
Y-Axis Head Travel: 60"
Z-Axis Head Travel: 36"
W-Axis Saddle Travel: 42"
Cutting Feed Rates: .1-100 IPM
Rapid Traverse: X&Y 180 IPM W&Z 120 IPM
Spindle Taper: 50 NMBT
Spindle Speeds: 5.6-1125 rpm
Spindle Drive Motor: 30 HP
EQUIPPED WITH:

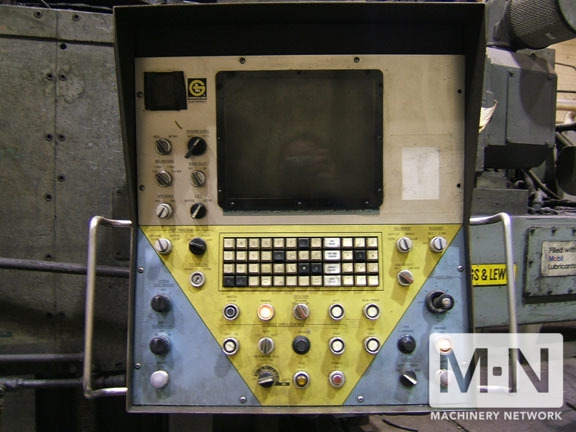

G&L 800M CNC Control
Inductosyn scales
Power draw bar
Hardened ways
Ballscrews & Independent Servos
Outrigger Saddle Supports
VIDEO OF MACHINE IN OPERATION AVAILABLE!
http://www.machinerynetwork.com/videos/24484.WMV
S/N: 445-17-78, NEW 1978
SPECIFICATIONS:
Spindle diameter: 5"
Table Size: 48" x 60"
X-Axis Table Travel: 72"
Y-Axis Head Travel: 60"
Z-Axis Head Travel: 36"
W-Axis Saddle Travel: 42"
Cutting Feed Rates: .1-100 IPM
Rapid Traverse: X&Y 180 IPM W&Z 120 IPM
Spindle Taper: 50 NMBT
Spindle Speeds: 5.6-1125 rpm
Spindle Drive Motor: 30 HP
EQUIPPED WITH:
G&L 800M CNC Control
Inductosyn scales
Power draw bar
Hardened ways
Ballscrews & Independent Servos
Outrigger Saddle Supports
VIDEO OF MACHINE IN OPERATION AVAILABLE!
http://www.machinerynetwork.com/videos/24484.WMV
