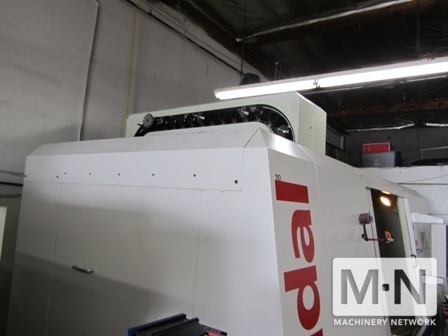

FADAL VMC-6535
Type:
Vertical Machining Centers
Manufacturer:
FADAL
Model:
VMC-6535
Condition:
Not Specified
Year:
2005
Stock #:
29287
Status:
Sold
Description:
5-AXIS HEAD, 65"x35"x34"
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

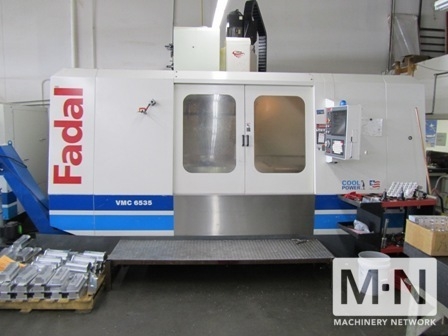

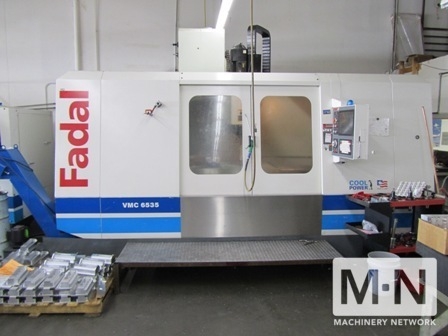

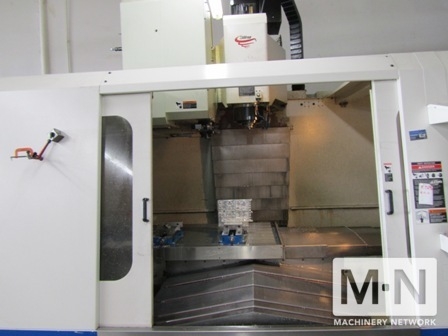

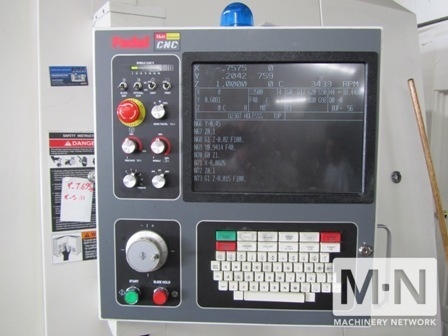

(1) FADAL MODEL VMC 6535-50 3-AXIS VERTICAL MACHINING CENTER
WITH 5 AXIS HEAD NEW 2005
SPECIFICATIONS:

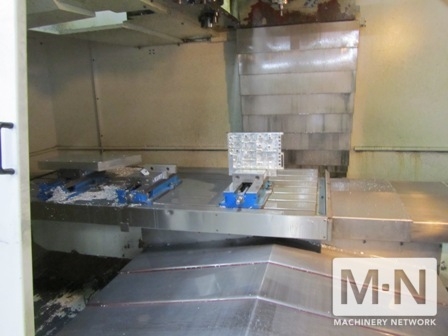

TABLE SIZE:.................... 75" X 35"
TRAVELS: X AXIS:............... 65"
Y AXIS:............... 35"
Z AXIS:............... 34"
FLOOR TO TABLE SURFACE:........ 41"
T-SLOTS (NO. X WIDTH X SPAN):.. 7 X .709" X 5"
CUTTING FEED RATE (X/Y/Z):..... 01-400 IPM / 600 @ 150%
RAPID TRAVEL RATE (X/Y/Z):..... 900 (X/Y) 700(Z) IPM
MAX. WEIGHT ON TABLE:.......... 4,250 LBS.
C AXIS DRIVE MOTOR (X/Y/Z):.... AC, 5,000 LBS.* THRUST
BALL SCREW SIZE:............... 63 MM DIA. (X/Y/Z)
SPDL NOSE TO TABLE:............ 4" - 38"
SPDL CENTER TO COLUMN WAYS:.... 34"
MAIN MOTOR - SPDL HP:.......... 22.5 HP* / 30 HP*B
SPINDLE TORQUE:................ 220/270B FT.-LBS.
ACCURACY, AXIS POSITIONING:.... ± .0002"
ACCURACY, AXIS REPEATABILITY:.. ± .0001"

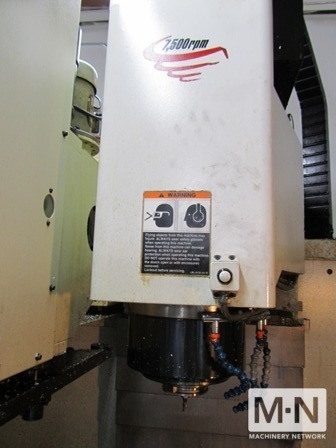

SPINDLE SPEED:................. 10K RPM
SPINDLE TAPER:................. NO. 50
MAX. TOOL DIAMETER:............ 4"
(WITHOUT ADJACENT TOOLS):...... 6"
MAX. TOOL LENGTH:.............. 15"
MAX. TOOL WEIGHT:.............. 15 LBS.
MACHINE WIDTH X DEPTH:......... 214" X 130"
MACHINE MAXIMUM HEIGHT:........ 145"
MACHINE WEIGHT:................ 28,400 LBS.
AIR PRESSURE REQ.(MOMENTARY):.. 80-120 PSI, 15 SCFM
OPTION PURCHASE: $15,000.00

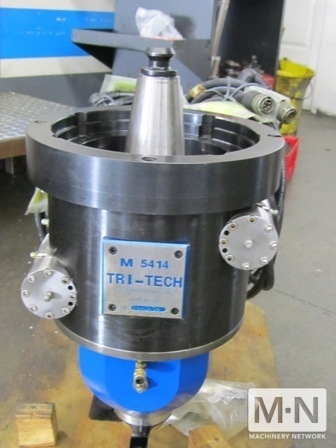

TRI-TECH MODEL 5414 PROGRAMMABLE HEAD SPECS:
FULLY PROGRAMMABLE 5 AXIS MACHINING
TILT RANGE: 180
ROTARY RANGE: 360 CONTINUOUS
WEIGHT: APPROX. 150 LBS
HEIGHT: APPROX. 12.5"
WIDTH: 8.5" OUTSIDE DIAM. ON MAIN HOUSING
M5414 USES CUSTOMER'S OWN SPINDLE DRIVE TRANSFERRED THROUGH
TOOL AT 1:1 RATIO
RECOMMENDED SPINDLE SPEED 100-5,000RPM
SERVO MOTORS DRIVE TILT AND ROTARY AXES AT 90:1 RATIO
DRILLS AND MILLS ANY MACHINABLE MATERIAL
UP TO 3/4" CUTTER DIAMETER
EQUIPPED WITH HIGH PRECISION HSK TOOLING SYSTEM
HSK QUICK CHANGE TOOL HOLDERS AVAILABLE THROUGH TRI-TECH
REPEATABILITY: ACCURATE WITHIN 15 ARC SECONDS
POSITIONAL ACCURACY: 36 ARC SECONDS PER AXIS
FUNCTIONAL ACCURACY DEPENDS UPON:
LENGTH OF TOOL USED
ACCURACY OF CUSTOMER'S OWN MACHINE
WITH 5 AXIS HEAD NEW 2005
SPECIFICATIONS:
TABLE SIZE:.................... 75" X 35"
TRAVELS: X AXIS:............... 65"
Y AXIS:............... 35"
Z AXIS:............... 34"
FLOOR TO TABLE SURFACE:........ 41"
T-SLOTS (NO. X WIDTH X SPAN):.. 7 X .709" X 5"
CUTTING FEED RATE (X/Y/Z):..... 01-400 IPM / 600 @ 150%
RAPID TRAVEL RATE (X/Y/Z):..... 900 (X/Y) 700(Z) IPM
MAX. WEIGHT ON TABLE:.......... 4,250 LBS.
C AXIS DRIVE MOTOR (X/Y/Z):.... AC, 5,000 LBS.* THRUST
BALL SCREW SIZE:............... 63 MM DIA. (X/Y/Z)
SPDL NOSE TO TABLE:............ 4" - 38"
SPDL CENTER TO COLUMN WAYS:.... 34"
MAIN MOTOR - SPDL HP:.......... 22.5 HP* / 30 HP*B
SPINDLE TORQUE:................ 220/270B FT.-LBS.
ACCURACY, AXIS POSITIONING:.... ± .0002"
ACCURACY, AXIS REPEATABILITY:.. ± .0001"
SPINDLE SPEED:................. 10K RPM
SPINDLE TAPER:................. NO. 50
MAX. TOOL DIAMETER:............ 4"
(WITHOUT ADJACENT TOOLS):...... 6"
MAX. TOOL LENGTH:.............. 15"
MAX. TOOL WEIGHT:.............. 15 LBS.
MACHINE WIDTH X DEPTH:......... 214" X 130"
MACHINE MAXIMUM HEIGHT:........ 145"
MACHINE WEIGHT:................ 28,400 LBS.
AIR PRESSURE REQ.(MOMENTARY):.. 80-120 PSI, 15 SCFM
OPTION PURCHASE: $15,000.00
TRI-TECH MODEL 5414 PROGRAMMABLE HEAD SPECS:
FULLY PROGRAMMABLE 5 AXIS MACHINING
TILT RANGE: 180
ROTARY RANGE: 360 CONTINUOUS
WEIGHT: APPROX. 150 LBS
HEIGHT: APPROX. 12.5"
WIDTH: 8.5" OUTSIDE DIAM. ON MAIN HOUSING
M5414 USES CUSTOMER'S OWN SPINDLE DRIVE TRANSFERRED THROUGH
TOOL AT 1:1 RATIO
RECOMMENDED SPINDLE SPEED 100-5,000RPM
SERVO MOTORS DRIVE TILT AND ROTARY AXES AT 90:1 RATIO
DRILLS AND MILLS ANY MACHINABLE MATERIAL
UP TO 3/4" CUTTER DIAMETER
EQUIPPED WITH HIGH PRECISION HSK TOOLING SYSTEM
HSK QUICK CHANGE TOOL HOLDERS AVAILABLE THROUGH TRI-TECH
REPEATABILITY: ACCURATE WITHIN 15 ARC SECONDS
POSITIONAL ACCURACY: 36 ARC SECONDS PER AXIS
FUNCTIONAL ACCURACY DEPENDS UPON:
LENGTH OF TOOL USED
ACCURACY OF CUSTOMER'S OWN MACHINE
