OKAMOTO ACUGAR 124N
Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
OKAMOTO
Model:
ACUGAR 124N
Condition:
Not Specified
Year:
1984
Stock #:
29592
Status:
Sold
Description:
12"x24", OTW DRESS
Location:
New Mexico, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

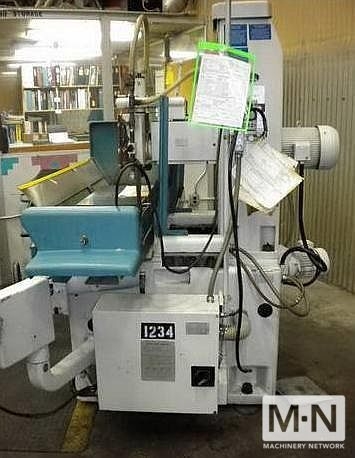

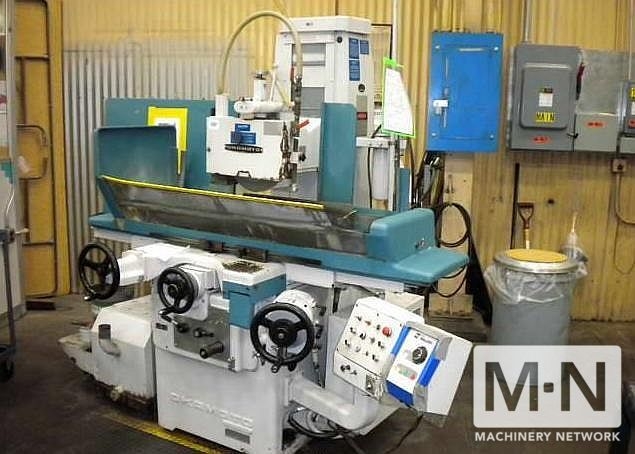

(1) USED 12" X 24" OKAMOTO ACUGAR 124-N AUTOMATIC SURFACE GRINDER, S/N 7052, NEW 1985
SPECIFICATIONS:
MAXIMUM GRINDING LENGTH .................. 24"
MAXIMUM GRINDING WIDTH ................... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ........... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ............ 29.5"
MAXIMUM CROSS MOVEMENT ................... 13.6"
FEEDS: LONGITUDINAL HYDRAULIC FEED ...... 1 - 100 FPM
CROSS FEED: HYDRAULIC INTERMITTENT ...... .02" -.8"
HYDRAULIC CONTINUOUS ........ .4"- 40" IPM
HAND FEED/REVOLUTION ........ .25"
GRADUATION OF WHEEL ......... .001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ......... .0001"-.00015"
AUTO FEED/SADDLE REVERSAL ...... .0001"-.00015" HAND FEED/REVOLUTION ........... .05"
GRADUATION OF HANDWHEEL ........ .0001"
RAPID FEEDRATE ................. 19" IPM
GRINDING WHEEL ........................... 12" X 1- 1/2" X 5" SPINDLE MOTOR ............................ 5 HP
HYDRAULIC PUMP MOTOR ..................... 3 HP
VERTICAL RAPID FEED MOTOR ................ 0.5 HP
DIMENSIONS ............................... 74"W x 103"L x 74"H APPROX. MACHINE WEIGHT ................... 5,000 LBS
EQUIPPED WITH:
CENTRALIZED OPERATOR CONTROLS
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION

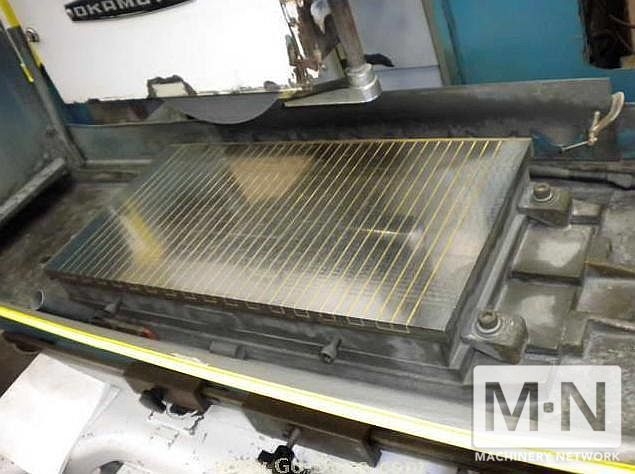

11- 5/8" X 23- 5/8" "WALKER-HAGOU" ELECTRO-MAGNETIC CHUCK
MANUAL "OVER-THE-WHEEL" WHEEL DRESSER
FACTORY WHEEL GUARD ACCEPTS DUST COLLECTOR HOSE COMBINATION COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
GRINDER IN VERY GOOD CONDITION
AVAILABLE FOR INSPECTION IN NEW JERSEY
SPECIFICATIONS:
MAXIMUM GRINDING LENGTH .................. 24"
MAXIMUM GRINDING WIDTH ................... 12"
MAXIMUM HEIGHT UNDER 14" WHEEL ........... 13.7"
MAXIMUM LONGITUDINAL MOVEMENT ............ 29.5"
MAXIMUM CROSS MOVEMENT ................... 13.6"
FEEDS: LONGITUDINAL HYDRAULIC FEED ...... 1 - 100 FPM
CROSS FEED: HYDRAULIC INTERMITTENT ...... .02" -.8"
HYDRAULIC CONTINUOUS ........ .4"- 40" IPM
HAND FEED/REVOLUTION ........ .25"
GRADUATION OF WHEEL ......... .001"
VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE ......... .0001"-.00015"
AUTO FEED/SADDLE REVERSAL ...... .0001"-.00015" HAND FEED/REVOLUTION ........... .05"
GRADUATION OF HANDWHEEL ........ .0001"
RAPID FEEDRATE ................. 19" IPM
GRINDING WHEEL ........................... 12" X 1- 1/2" X 5" SPINDLE MOTOR ............................ 5 HP
HYDRAULIC PUMP MOTOR ..................... 3 HP
VERTICAL RAPID FEED MOTOR ................ 0.5 HP
DIMENSIONS ............................... 74"W x 103"L x 74"H APPROX. MACHINE WEIGHT ................... 5,000 LBS
EQUIPPED WITH:
CENTRALIZED OPERATOR CONTROLS
AUTO INCREMENTAL DOWNFEED
AUTOMATIC SPARKOUT UP TO 5 PASSES
POWER ELEVATION
11- 5/8" X 23- 5/8" "WALKER-HAGOU" ELECTRO-MAGNETIC CHUCK
MANUAL "OVER-THE-WHEEL" WHEEL DRESSER
FACTORY WHEEL GUARD ACCEPTS DUST COLLECTOR HOSE COMBINATION COOLANT SYSTEM
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
GRINDER IN VERY GOOD CONDITION
AVAILABLE FOR INSPECTION IN NEW JERSEY
