DAEWOO DMV 3016
Type:
Vertical Machining Centers
Manufacturer:
DAEWOO
Model:
DMV 3016
Condition:
Not Specified
Year:
2006
Stock #:
29344
Status:
Sold
Description:
FANUC Oi MB,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

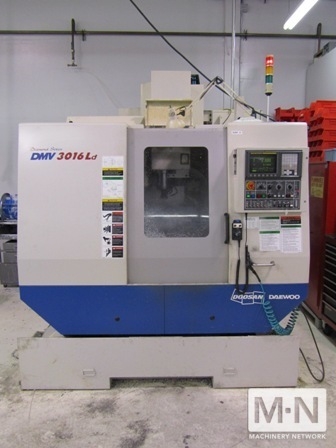

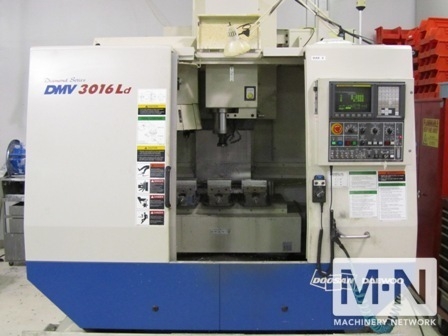

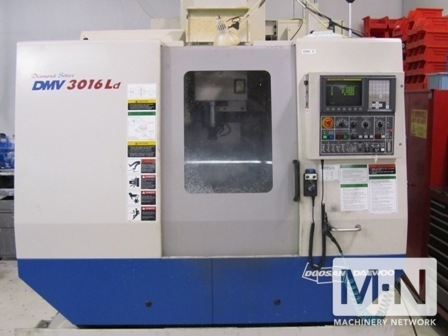

(1) USED DAEWOO DMV 3016 CNC VERTICAL MACHINING CENTER
S/N: NM4100377 NEW 2006
SPECIFICATIONS:
TABLE SIZE: 16.9"x36.2"
MAX TABLE LOAD: 1,320 LBS
X AXIS TRAVEL: 30"
Y AXIS TRAVEL: 16.1"
Z AXIS TRAVEL: 20.1"
SPINDLE NOSE TO TABLE TOP: 5.9" TO 26"
SPINDLE TAPER: CT-40
SPINDLE SPEED: 8,000 RPM
SPINDLE MOTOR: 15 HP
RAPID TRAVERSE RATES: 1,417 IPM X, Y and 1,259 IPM Z
CUTTING FEED RATES: 315 IPM
TOOL CHANGER: 20 ATC
MACHINE WEIGHT: 12,320 LBS
FLOOR SPACE REQUIRED: 117"W x 94" D
EQUIPPED WITH:

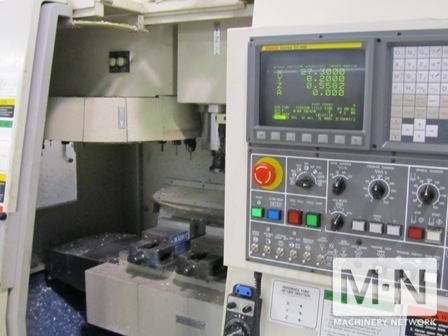

FANUC Oi MB CONTROL
4TH-AXIS INTERFACE
S/N: NM4100377 NEW 2006
SPECIFICATIONS:
TABLE SIZE: 16.9"x36.2"
MAX TABLE LOAD: 1,320 LBS
X AXIS TRAVEL: 30"
Y AXIS TRAVEL: 16.1"
Z AXIS TRAVEL: 20.1"
SPINDLE NOSE TO TABLE TOP: 5.9" TO 26"
SPINDLE TAPER: CT-40
SPINDLE SPEED: 8,000 RPM
SPINDLE MOTOR: 15 HP
RAPID TRAVERSE RATES: 1,417 IPM X, Y and 1,259 IPM Z
CUTTING FEED RATES: 315 IPM
TOOL CHANGER: 20 ATC
MACHINE WEIGHT: 12,320 LBS
FLOOR SPACE REQUIRED: 117"W x 94" D
EQUIPPED WITH:
FANUC Oi MB CONTROL
4TH-AXIS INTERFACE
