DAEWOO DMV-500
Type:
Vertical Machining Centers
Manufacturer:
DAEWOO
Model:
DMV-500
Condition:
Not Specified
Year:
1998
Stock #:
23096
Status:
Sold
Description:
F-18M, 10k rpm, CTS, 4 AX READY, 15/20 HP, BT40
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

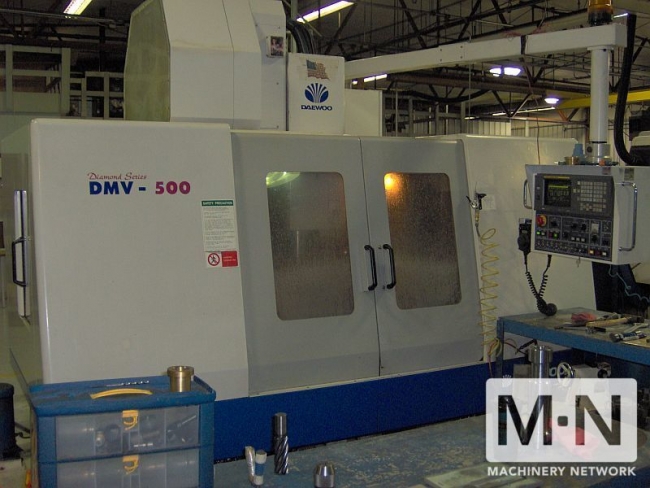

(1)USED DAEWOO MODEL DMV-500 CNC VERTICAL
MACHINING CENTER, S/N:AV550423, NEW 1998
SPECIFICATIONS:
TABLE SIZE: 47.2" X 19.7"
TABLE LOAD CAPACITY: 1763 LBS
TRAVELS X-AXIS: 40.2"
Y-AXIS: 19.7"
Z-AXIS: 20.1"
SPINDLE SPEED: 10000 RPM
SPINDLE MOTOR: 20 / 15 HP
SPINDLE TAPER: BT #40
RAPID TRAVERSE RATE (X,Y/Z): 1181 / 945 IPM
CUTTING FEEDRATE: .04 - 315 IPM
TOOLS: 30
MACHINE DIMENSIONS: 136" X 141" X 116"
MACHINE WEIGHT: 16535 LBS
EQUIPPED WITH:

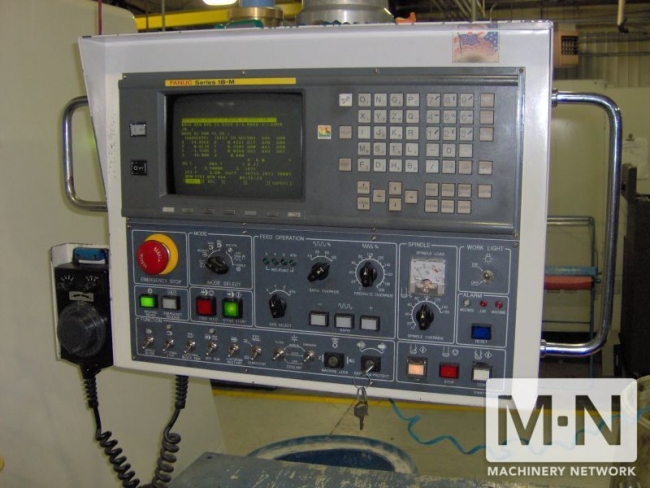

FANUC 18M CNC CONTROL
WIRED FOR 4TH AXIS MACHINING
THROUGH SPINDLE COOLANT
MACHINING CENTER, S/N:AV550423, NEW 1998
SPECIFICATIONS:
TABLE SIZE: 47.2" X 19.7"
TABLE LOAD CAPACITY: 1763 LBS
TRAVELS X-AXIS: 40.2"
Y-AXIS: 19.7"
Z-AXIS: 20.1"
SPINDLE SPEED: 10000 RPM
SPINDLE MOTOR: 20 / 15 HP
SPINDLE TAPER: BT #40
RAPID TRAVERSE RATE (X,Y/Z): 1181 / 945 IPM
CUTTING FEEDRATE: .04 - 315 IPM
TOOLS: 30
MACHINE DIMENSIONS: 136" X 141" X 116"
MACHINE WEIGHT: 16535 LBS
EQUIPPED WITH:
FANUC 18M CNC CONTROL
WIRED FOR 4TH AXIS MACHINING
THROUGH SPINDLE COOLANT
