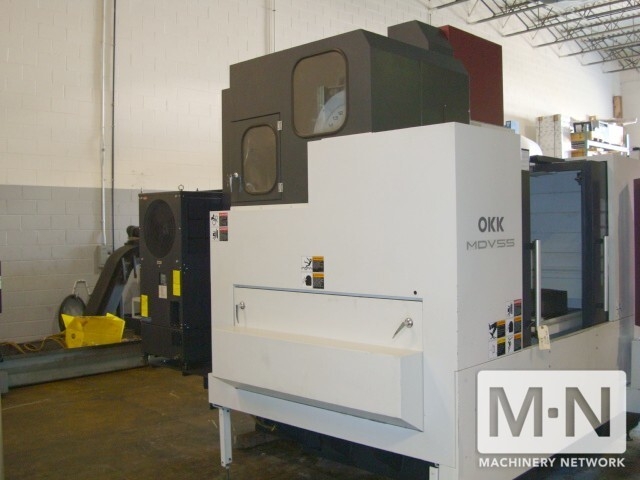

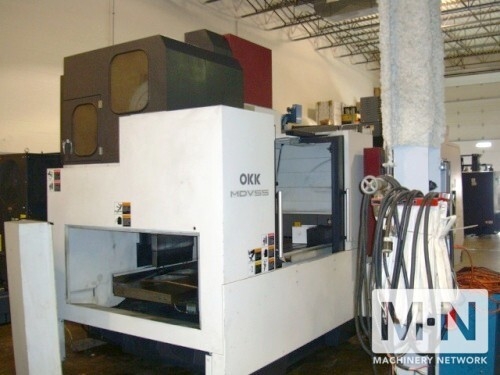

OKK MDV 55

Type:

Vertical Machining Centers

Manufacturer:

OKK

Model:

MDV 55

Condition:

Not Specified

Year:

2005

Stock #:

28548

Status:

Sold

Description:

FANUC 180 iSMB CNC CONTROL, 42"x24" TBL, 10K RPM

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

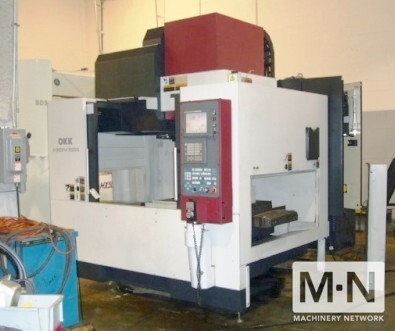

(1) USED OKK MDV 55 CNC VERTICAL MACHINING CENTER
NEW 2005

SPECIFICATIONS:
TABLE SIZE: 42" X 24"
TABLE TRAVEL:
X AXIS: 40.16"
Y AXIS: 21.65"
Z AXIS: 20.08"
TABLE TOP TO SPINDLE NOSE: 5.9"- 26.7"
TABLE LOAD CAPACITY: 1760 LBS.

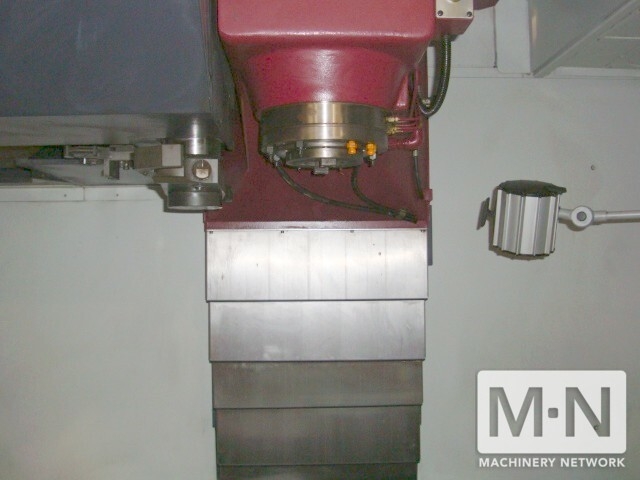

SPINDLE NOSE: CAT #50 TAPER
SPINDLE SPEED: 25-10,000 RPM(2-SPEED)
CUTTING RATE: 0.1-1181 IPM
RAPID FEED RATE: 1181 X,Y,Z,787 IPM
POSITIONS: 20
MAX TOOL LENGTH DIAMETER: 4.33"/7.87"
MAX TOOL LENGTH: 13.78"
MAX TOOL WEIGHT: 44 LBS.
TOOL TO TOOL CHANGE TIME: 2.5 SECS.
NUMBER OF GEAR RANGES: 2
SPINDLE TORQUE: 231 FT/LBS.
MAIN MOTOR: 20/25 HP AC
MACHINE WEIGHT: 18,280 LBS.

EQUIPPED WITH:

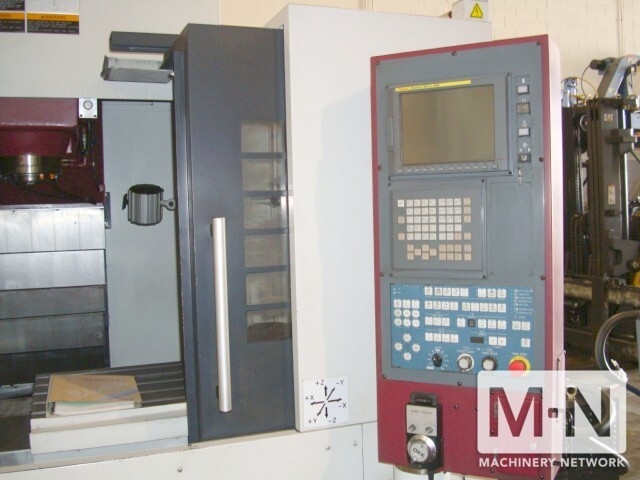

FANUC 180 iSMB CNC CONTROL
INCH/METRIC SWITCHABLE INPUT
RIGID TAPPING,BOX WAY CONSTRUCTION
COOLANT THRU SPINDLE (PREP)
CUSTOM MACRO B, 82 VARIABLES
EXTENDED PART PROGRAM EDITING (COPY FILE)
REGISTERABLE PROGRAMS: INCREASE TO 400 SETS (ADDITION C)
HELICAL CUTTING
TOOL OFFSET, 200
PROGRAMMABLE MIRROR IMAGE
TOOL LIFE MANAGEMENT
WORK COORDIANTE SYSTEM
ADDITIONAL 48 TYPES
EXTENDED MEMORY 1280 METERS

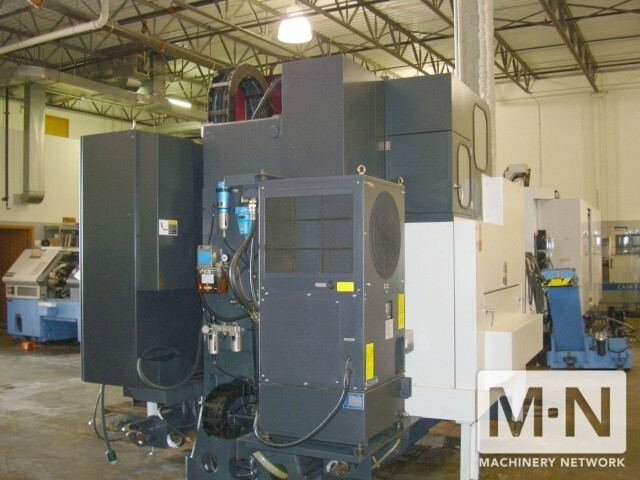

SPINDLE CHILLER

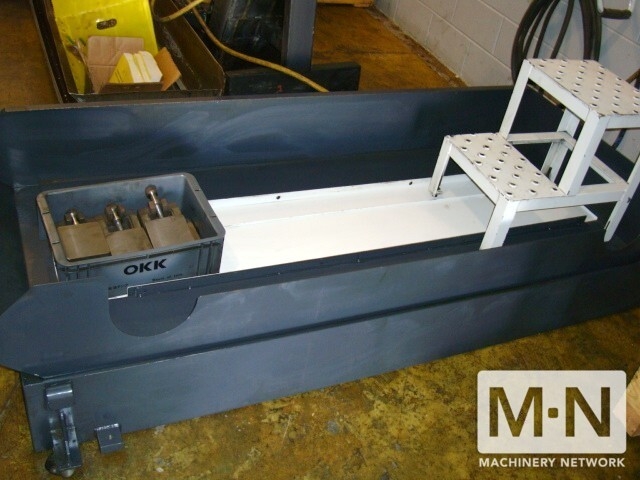

CHIP AUGER
FULL ENCLOSURES
ALL AVAILABLE MANUALS
