OKK VM-5
Type:
Vertical Machining Centers
Manufacturer:
OKK
Model:
VM-5
Condition:
Not Specified
Year:
1998
Stock #:
22506
Status:
Sold
Description:
Fanuc 16i, CAT 40, 8000 RPM, 20 ATC, chip conv
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

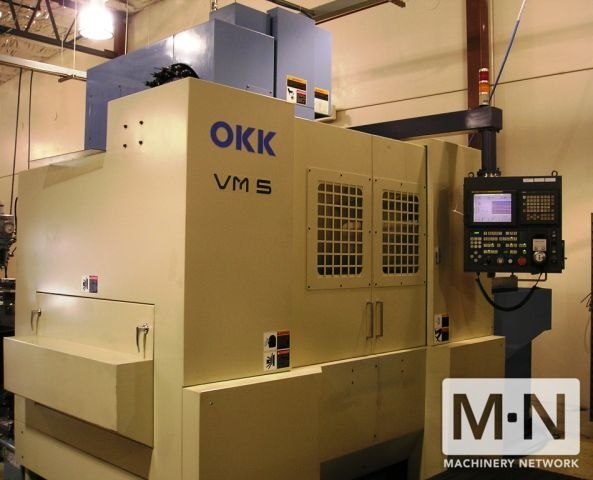

(1) USED OKK MODEL VM-5 HIGH SPEED CNC VERTICAL
MACHINING CENTER WITH PALLET-CHANGER. NEW 1998
SPECIFICATIONS:
TRAVELS -X AXIS: 40"
-Y AXIS: 20"
-Z AXIS: 20"
SPINDLE SPEED: 8000 RPM(GEARED HEAD)
SPINDLE TAPER: CAT 40
TOOLS: 20 ATC
EQUIPPED WITH:
FANUC 16M-i CNC CONTROLS
CHIP CONVEYOR
OIL CHILLER FOR SPINDLE
COOLANT THRU SPINDLE
X-AXIS EXTENSION
2 STATION APC
AIR BLOW NOZZLE FOR DRY CUTTING
EXTENDED MEMORY
CUSTOM MACRO B WITH 82 VARIABLES
CUSTOM MACRO VARIABLE MEMORY EXPANSION INCREASE TO 600
CUSTOM MACRO INTERRUPT
20 STATION BI-DIRECTIONAL RANDOM SELECT TOOL CHANGER
OIL CHILLER FOR SPINDLE
MACHINING CENTER WITH PALLET-CHANGER. NEW 1998
SPECIFICATIONS:
TRAVELS -X AXIS: 40"
-Y AXIS: 20"
-Z AXIS: 20"
SPINDLE SPEED: 8000 RPM(GEARED HEAD)
SPINDLE TAPER: CAT 40
TOOLS: 20 ATC
EQUIPPED WITH:
FANUC 16M-i CNC CONTROLS
CHIP CONVEYOR
OIL CHILLER FOR SPINDLE
COOLANT THRU SPINDLE
X-AXIS EXTENSION
2 STATION APC
AIR BLOW NOZZLE FOR DRY CUTTING
EXTENDED MEMORY
CUSTOM MACRO B WITH 82 VARIABLES
CUSTOM MACRO VARIABLE MEMORY EXPANSION INCREASE TO 600
CUSTOM MACRO INTERRUPT
20 STATION BI-DIRECTIONAL RANDOM SELECT TOOL CHANGER
OIL CHILLER FOR SPINDLE
