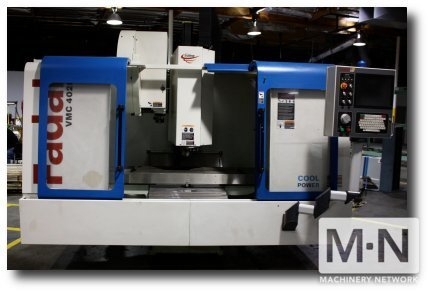

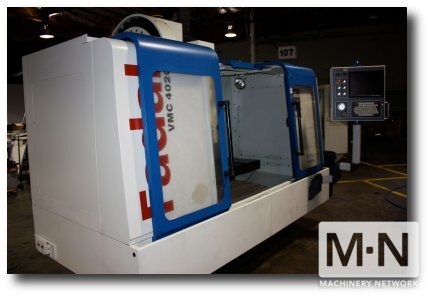

FADAL VMC 4020

Type:

Vertical Machining Centers

Manufacturer:

FADAL

Model:

VMC 4020

Condition:

Not Specified

Year:

2004

Stock #:

27715

Status:

Sold

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED FADAL VMC 4020 CNC VERTICAL MACHINING CENTER
NEW: 2004

SPECIFICATIONS:
FLOOR TO TABLE SURFACE 32"
MACHINE WIDTH X DEPTH 116" X 87"
MACHINE MAXIMUM HEIGHT 114"
MACHINE WEIGHT 11,000 LBS.
TABLE SIZE 48" X 20"
T-SLOTS 5 X .687" X 3.75"
CUTTING FEED RATE (X,Y,Z) .01-400 IPM (600 IPM AT 150%)
RAPID TRAVEL RATE 900 (X, Y, Z) IPM
MAX. WEIGHT ON TABLE 3,641 LBS
BALL SCREW SIZE 40 MM DIA. X, Y, Z
X TRAVEL 40"
Y TRAVEL 20"
Z TRAVEL 20"
SPINDLE NOSE TO TABLE 4" - 24"
SPINDLE CENTER TO COLUMN WAYS 20"
ACCURACY, AXIS POSITIONING +/- .0002"
ACCURACY, AXIS REPEATABILITY +/- .0001"
POWER TRANSFER AUTOMATIC MECHANICAL
2 SPEED VECTOR DRIVE

SPINDLE SPEED 10-10,000 RPM
SPINDLE ORIENTATION ELECTROMECHANICAL
SPINDLE TAPER NO. 40

TOOLS:

ATC, NUMBER OF TOOLS 21
ATC, TOOL SELECTION RANDOM/BI-DIRECTIONAL
MAX. TOOL DIA 3"
WITHOUT ADJACENT TOOLS 6"
MAX. TOOL LENGTH 15"
MAX. TOOL WEIGHT 15 LBS.

MOTOR

SPINDLE DRIVE MOTOR AC, WYE/DELTA VECTOR DRIVE
HORSEPOWER 15 HP
TORQUE 160 FT.-LBS.
AXIS DRIVE MOTOR (X,Y,Z) AC, 3,800 LBS.

MISCELLANEOUS:

AIR PRESSURE REQUIREMENT 80-120 PSI , 15 SCFM MOMENTARY
POWER REQUIREMENT 40/45 AMPS, 230 VAC
COOL POWER CHILLED SPINDLE/BALLSCREWS (X/Y/Z)
CONTROL
88 CONTROL

OPTIONS:

RIGID TAP $ YES

DUAL ARM TOOL CHANGER 24 POSITION $ YES

4 MB MEMORY $ YES

WASHDOWN SYSTEM $ YES

" 22.5 HI-TORQUE MOTOR $ YES
