CINCINNATI 1812
Type:
SHEARS, POWER SQUARING (Inches)
Manufacturer:
CINCINNATI
Model:
1812
Condition:
Not Specified
Year:
1967
Stock #:
24978
Status:
Sold
Description:
1/4" X 12', PFOBG, SQ. ARM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

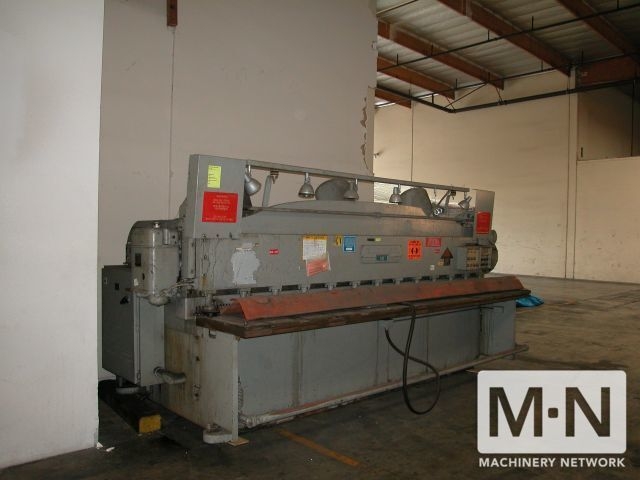

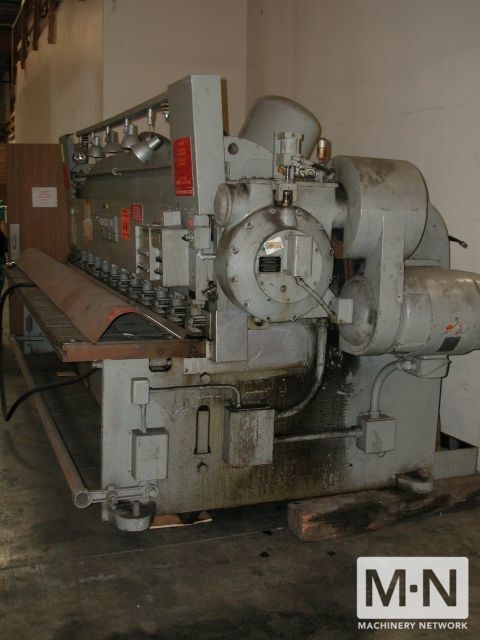

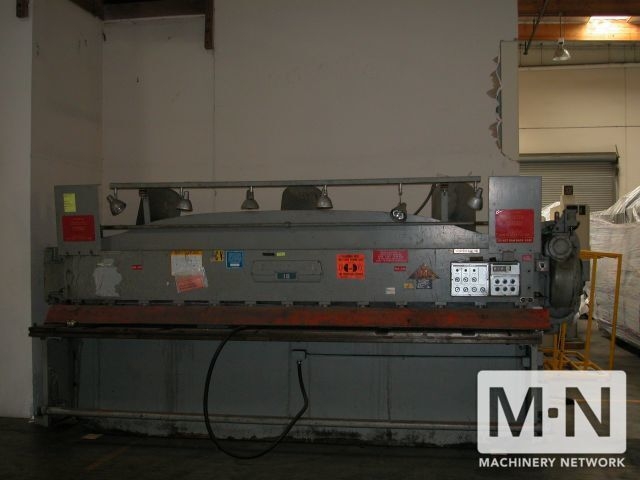

1/4" x 12' CINCINNATI MECHANICAL POWER SHEAR
MODEL: 1812 NEW 1967
CAPACITY M.S. 1/4" X 12'
OVERALL LENGTH OF KNIVES 148"
DISTANCE BETWEEN HOUSINGS 147"
GAP DEPTH 18"
RAKE ANGLE 1/4" PER FOOT
DISTANCE FL0OR TO TOP OF BED 32"
DISTANCE UNDER HOLDDOWNS 9/16"
HOLDDOWNS TO KNIFE EDGE 5/8"
RAM ADJUSTMENT 11/16"
SPEED ( APPROX. ) 60 SPM
MOTOR 15 HP 3/60
OVERALL DIMENSIONS 178"L-R,92"F-B
81" H
WEIGHT 22,600 LBS
EQUIPPED WITH:
FRONT OPERATED POWER BACK GAUGE
SQUARING ARM
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
12' SQUARING ARM
MISC. PARTS
MODEL: 1812 NEW 1967
CAPACITY M.S. 1/4" X 12'
OVERALL LENGTH OF KNIVES 148"
DISTANCE BETWEEN HOUSINGS 147"
GAP DEPTH 18"
RAKE ANGLE 1/4" PER FOOT
DISTANCE FL0OR TO TOP OF BED 32"
DISTANCE UNDER HOLDDOWNS 9/16"
HOLDDOWNS TO KNIFE EDGE 5/8"
RAM ADJUSTMENT 11/16"
SPEED ( APPROX. ) 60 SPM
MOTOR 15 HP 3/60
OVERALL DIMENSIONS 178"L-R,92"F-B
81" H
WEIGHT 22,600 LBS
EQUIPPED WITH:
FRONT OPERATED POWER BACK GAUGE
SQUARING ARM
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
12' SQUARING ARM
MISC. PARTS
