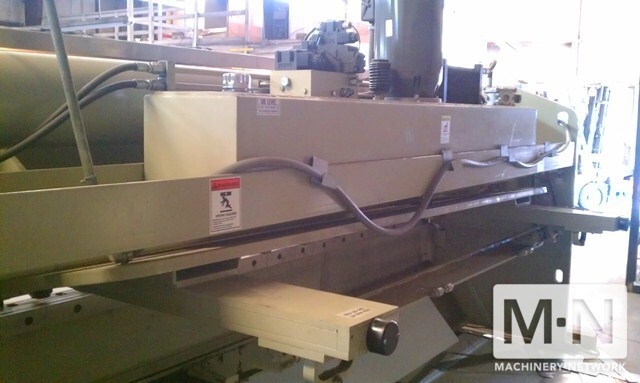

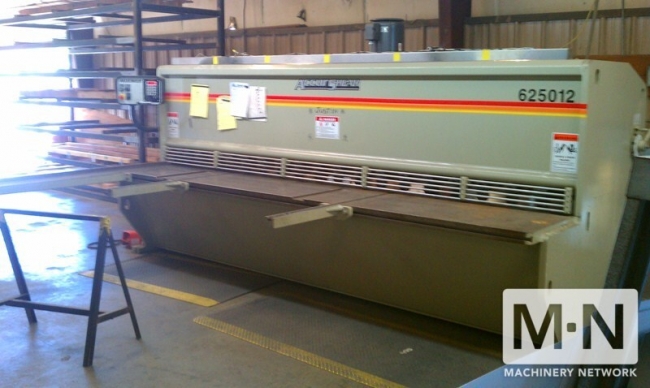

ACCURSHEAR 625012

Type:

SHEARS, POWER SQUARING (Inches)

Manufacturer:

ACCURSHEAR

Model:

625012

Condition:

Not Specified

Year:

2008

Stock #:

30747

Status:

Sold

Description:

1/4" x 12'

Location:

Colorado, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

We are pleased to offer the following for your consideration: One (1) Used Accushear 625012 Hydraulic Shear New 2008 General Specifications As Per Brochure Specifications: CAPACITY 1/4" MILD STEEL SHEARING LENGTH 144" DRIVE MOTOR 20 HP HOLDOWNS 19 TYPE OF HOLDOWN HYDRAULIC HOLDOWN PRESSURE (EACH) 16 TONS BACKGAUGE DRIVE MOTOR 1 HP MAIN HYDRAULIC CYLINDERS 4" DIA. X 5" STROKE HYDRAULIC RESERVOIR CAPACITY 64 GALLONS HYDRAULIC RELIEF PRESSURE 3,500 PSI CONTROL VOLTAGE 24 VOLT AC BACKGAUGE TRAVEL (STD) 36" STROKES / MIN. (FULL LENGTH) 18 STROKES / MIN. (FULL) HIGH SPEED 32 HYDRAULIC PUMP FLOW 15 GPM HYDRAULIC PUMP FLOW - HIGH SPEED 25 GPM SHEAR BLADES SIZE 148" X 3" X 1" MINIMUM BLADE SIZE 148" X 2.66" X .75" TYPE : MODIFIED HIGH CHROME HIGH CARBON SHEAR SIDES PER BLADE 4 MINIMUM GAP SETTING .002" NORMAL GAP SETTING .002" - .003" RAKE ANGLE 1/4" PER FOOT BACK CUT ANGLE 1/2 - 3/4 DEGREE TOTAL WEIGHT 21,000 LBS BACKGAUGE CONTROL INCLUDES LED DISPLAY, INCH OR METRIC CONVERSION, GO-TO-POSITION FUNCTION, 99 PRE-SELECT PROGRAMS, HOUR METER, AND STROKE COUNTER 36" BACKGAUGE TRAVEL WITH AUTOMATIC SWING UP BACKSTOP AT FULL EXTENSION 4-EDGED BLADES, TOP AND BOTTOM, MODIFIED HIGH CARBON, HIGH CHROME 3 POSITION FOOTSWITCH CONTROL 4' SQUARING ARM C/W STEEL RULE WITH 1/16" AND 1 MM INCREMENTS MANUAL QUICK BLADE CLEARANCE ADJUSTMENT HAND SLOTS IN TABLE T-SLOTS IN FRONT OF TABLE SHADOW LIGHT AND LINE OIL COOLER FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
