TAFT PIERCE #1
Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
TAFT PIERCE
Model:
#1
Condition:
Not Specified
Stock #:
24670
Status:
Sold
Description:
5"x12", tilt spdl, EM chuck
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

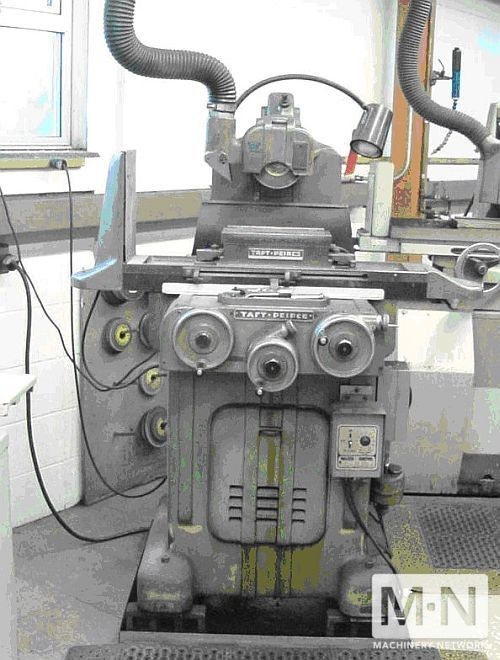

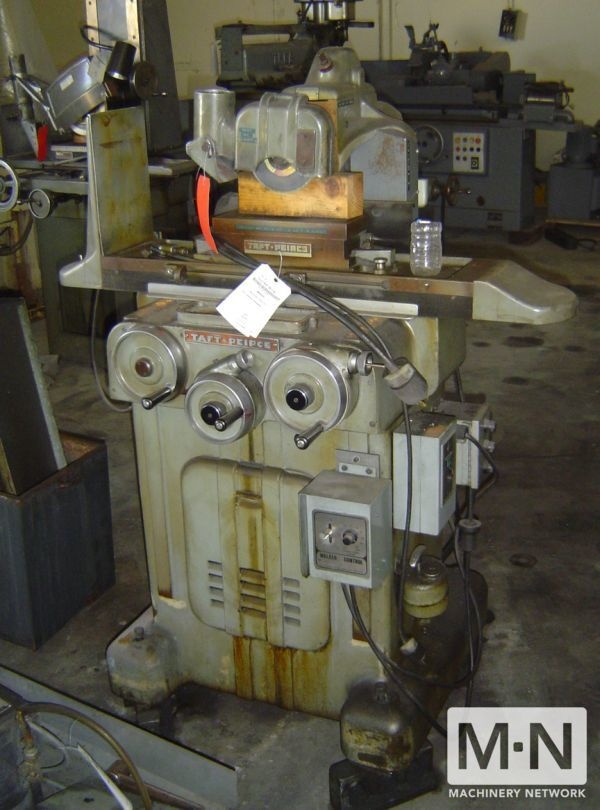

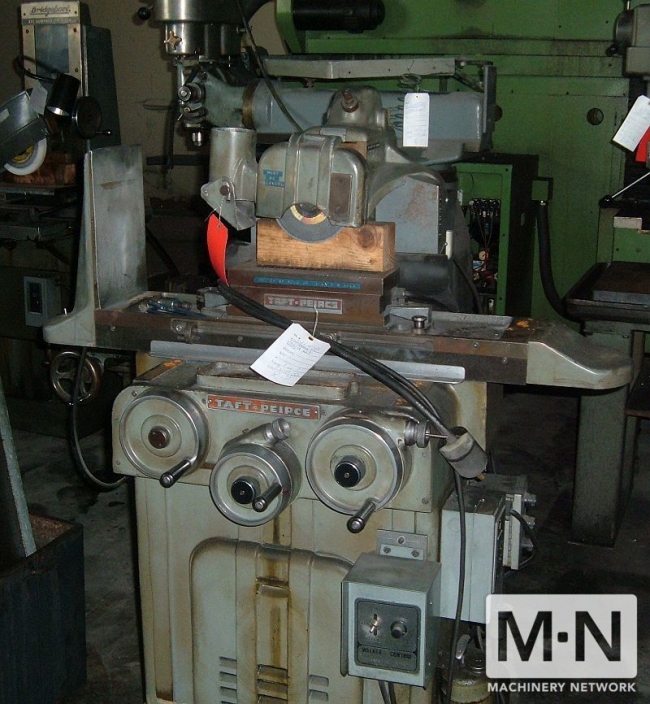

(1) USED 5" X 12" TAFT-PIERCE HAND FEED SURFACE GRINDER
SPECIFICATIONS:
WIDTH & LENGTH GROUND ......................... 5" X 12"
TABLE TO SPINDLE CENTER ....................... 12"
LONGITUDINAL TABLE TRAVEL ..................... 13 1/2"
TABLE MOVEMENT PER REV. OF HANDWHEEL .......... 3.4"
CROSS TRAVEL .................................. 5 1/2"
GRINDING WHEEL CAPACITY ................... 7" X 1/2" X 1 1/4" CROSSFEED MOVEMENT PER REV. OF HANDWHEEL ..... 0.100" CROSSFEED HANDWHEEL GRAD. ..................... 0.001" VERTICAL FEED PER REV. OF HANDWHEEL ........... 0.050" STD. HANDWHEEL GRAD. ............................... 0.0005"
APPROX. WEIGHT ................................ 1,500 LBS. APPROX. DIMENSIONS ........................ 61" X 45" X 66"H
MACHINE FEATURES:
5" X 12" WALKER ELECTRO-MAGNETIC CHUCK
TILTING WHEELHEAD OPTION (30 DEGREES)
BALL MOUNTED TABLE, ROLLER MOUNTED SADDLE & BALL TRACKED COLUMN
REPLACEABLE LONGITUDINAL WAYS (VEE & FLAT WAY) CROSSFEED HAS ANTI-BACKLASH NUT ASSEMBLY
SADDLE LOCK FOR CONVENIENCE IN FORM GRINDING OPERATIONS
ENTIRE SPINDLE COLUMN MOVES FOR VERTICAL SPINDLE FEED
1 H.P. TAFT PIERCE SUPER-PRECISION SPINDLE DRIVE
LUBRICATION SYSTEM
INSPECT IN LOS ANGELES
SPECIFICATIONS:
WIDTH & LENGTH GROUND ......................... 5" X 12"
TABLE TO SPINDLE CENTER ....................... 12"
LONGITUDINAL TABLE TRAVEL ..................... 13 1/2"
TABLE MOVEMENT PER REV. OF HANDWHEEL .......... 3.4"
CROSS TRAVEL .................................. 5 1/2"
GRINDING WHEEL CAPACITY ................... 7" X 1/2" X 1 1/4" CROSSFEED MOVEMENT PER REV. OF HANDWHEEL ..... 0.100" CROSSFEED HANDWHEEL GRAD. ..................... 0.001" VERTICAL FEED PER REV. OF HANDWHEEL ........... 0.050" STD. HANDWHEEL GRAD. ............................... 0.0005"
APPROX. WEIGHT ................................ 1,500 LBS. APPROX. DIMENSIONS ........................ 61" X 45" X 66"H
MACHINE FEATURES:
5" X 12" WALKER ELECTRO-MAGNETIC CHUCK
TILTING WHEELHEAD OPTION (30 DEGREES)
BALL MOUNTED TABLE, ROLLER MOUNTED SADDLE & BALL TRACKED COLUMN
REPLACEABLE LONGITUDINAL WAYS (VEE & FLAT WAY) CROSSFEED HAS ANTI-BACKLASH NUT ASSEMBLY
SADDLE LOCK FOR CONVENIENCE IN FORM GRINDING OPERATIONS
ENTIRE SPINDLE COLUMN MOVES FOR VERTICAL SPINDLE FEED
1 H.P. TAFT PIERCE SUPER-PRECISION SPINDLE DRIVE
LUBRICATION SYSTEM
INSPECT IN LOS ANGELES
