AMADA RG-100
Type:
BRAKES, PRESS, HYDRAULIC (Inch/Ton)
Manufacturer:
AMADA
Model:
RG-100
Condition:
Not Specified
Year:
1994
Stock #:
23915
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

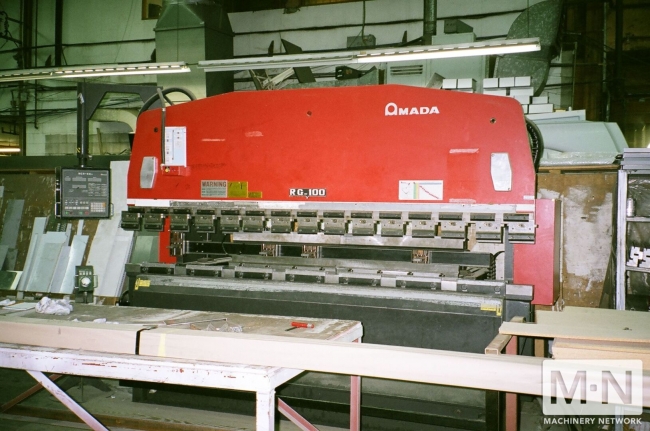

AMADA RG-100 PRESS BRAKE W/NC9EXII 3 AXIS BACKGAUGE
NEW 1994
MAXIMUM TONNAGE ...................... 110 TONS
MAXIMUM BENDING LENGTH ............... 122"
MAXIMUM STROKE LENGTH ................ 3.9"
CLEARANCE BETWEEN BEAMS (OPEN HEIGHT) 14.57"
THROAT DEPTH ......................... 15.75"
DISTANCE BETWEEN SIDE FRAMES ......... 100.39"
RAM SPEED:
APPROACH ........................... 2.04"/SEC
BENDING ............................ .39"/SEC
RETURN ............................. 2.32"/SEC
HYDRAULIC TANK ....................... 17.1 GAL.
MACHINE WEIGHT ....................... 14,110 LBS.
MACHINE DIMENSIONS..... L x W x H .... 122"x61.22"x90.55"
MOTOR................................. 10 HP
EQUIPPED WITH:

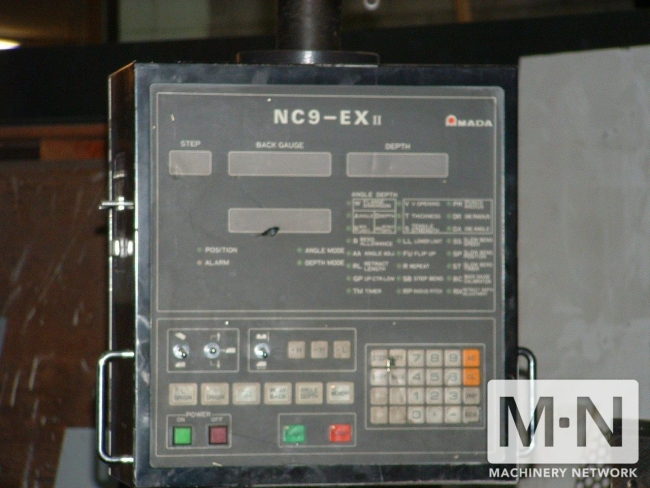

NC-9EX II CNC BACK GAUGE
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
To unsubscribe from our mailing list please email to sales@machinerynetwork.com
NEW 1994
MAXIMUM TONNAGE ...................... 110 TONS
MAXIMUM BENDING LENGTH ............... 122"
MAXIMUM STROKE LENGTH ................ 3.9"
CLEARANCE BETWEEN BEAMS (OPEN HEIGHT) 14.57"
THROAT DEPTH ......................... 15.75"
DISTANCE BETWEEN SIDE FRAMES ......... 100.39"
RAM SPEED:
APPROACH ........................... 2.04"/SEC
BENDING ............................ .39"/SEC
RETURN ............................. 2.32"/SEC
HYDRAULIC TANK ....................... 17.1 GAL.
MACHINE WEIGHT ....................... 14,110 LBS.
MACHINE DIMENSIONS..... L x W x H .... 122"x61.22"x90.55"
MOTOR................................. 10 HP
EQUIPPED WITH:
NC-9EX II CNC BACK GAUGE
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
To unsubscribe from our mailing list please email to sales@machinerynetwork.com
