HARDINGE T-42SP
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HARDINGE
Model:
T-42SP
Condition:
Not Specified
Year:
1998
Stock #:
23386
Status:
Sold
Description:
F-18T, 6.5" & COLLET CH, CC, 1 5/8 HTS, 5K RPM, 12 POS TRRT
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

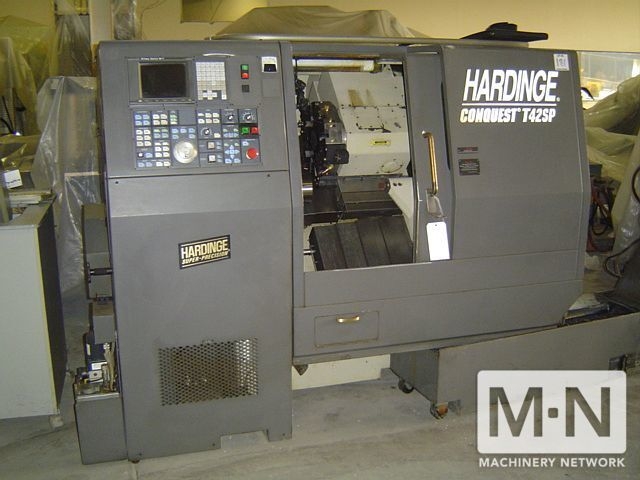

(1) USED HARDINGE CONQUEST T-42SP SUPER PRECISION CNC TURNING CENTER, NEW 1998 S/N:SGA-1679-B
SPECIFICATIONS:
MAX. CHUCK DIAMETER: 6"
SWING OVER COVERS:UPPER: 19.5"
LOWER: 14.5"
MAX TURNING DIAMETER: 13.650"
TRAVELS - X AXIS 5.450"
- Z AXIS 13.650"
MAX. SPINDLE SPEED: 5000 RPM
BAR CAPACITY: 1.5/8"
SPINDLE MOTOR: 20 HP
TOOL POSITIONS: 12
EQUIPPED WITH:

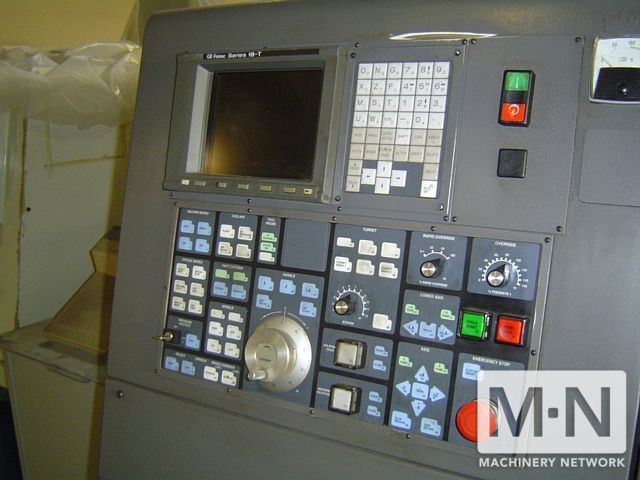

FANUC 18T CNC CONTROL
HARDINGE A2-5 HQC-42 COLLET CHUCK
HM-306-Q 6.5" CHUCK
TURBO CHIP CONVEYOR

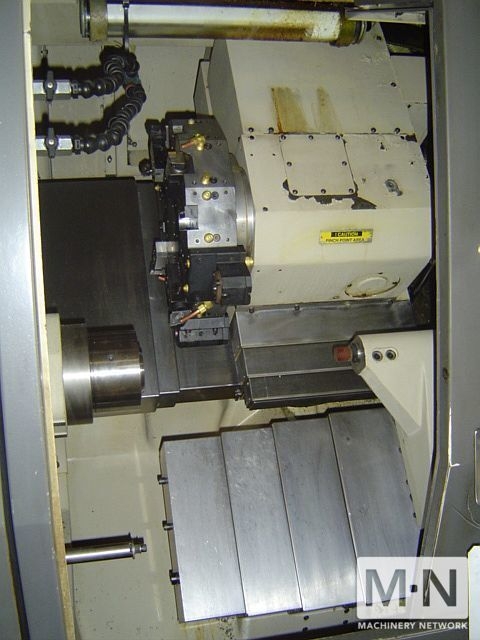

12 POSITION ID/OD TOOL TURRET
SPECIFICATIONS:
MAX. CHUCK DIAMETER: 6"
SWING OVER COVERS:UPPER: 19.5"
LOWER: 14.5"
MAX TURNING DIAMETER: 13.650"
TRAVELS - X AXIS 5.450"
- Z AXIS 13.650"
MAX. SPINDLE SPEED: 5000 RPM
BAR CAPACITY: 1.5/8"
SPINDLE MOTOR: 20 HP
TOOL POSITIONS: 12
EQUIPPED WITH:
FANUC 18T CNC CONTROL
HARDINGE A2-5 HQC-42 COLLET CHUCK
HM-306-Q 6.5" CHUCK
TURBO CHIP CONVEYOR
12 POSITION ID/OD TOOL TURRET
