CINCINNATI UNKNOWN
Type:
Vertical Machining Centers
Manufacturer:
CINCINNATI
Model:
UNKNOWN
Condition:
Not Specified
Stock #:
21424
Status:
Sold
Description:
5-AXIS, GANTRY, 79'7" x 84" x 18", A & B AXIS, #50 TPR, 2 AVAIL
Location:
Ontario, Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

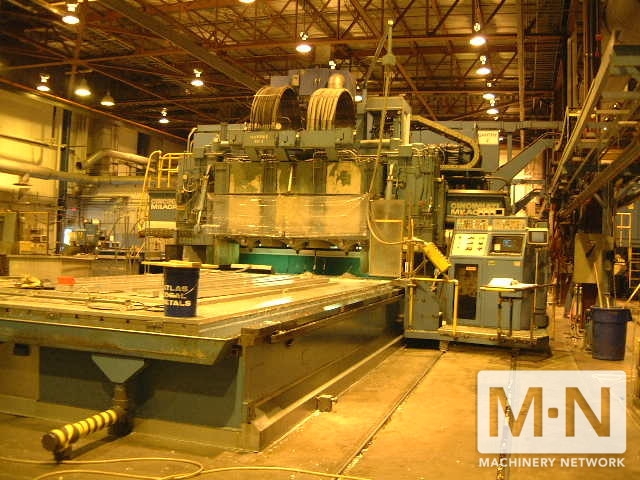

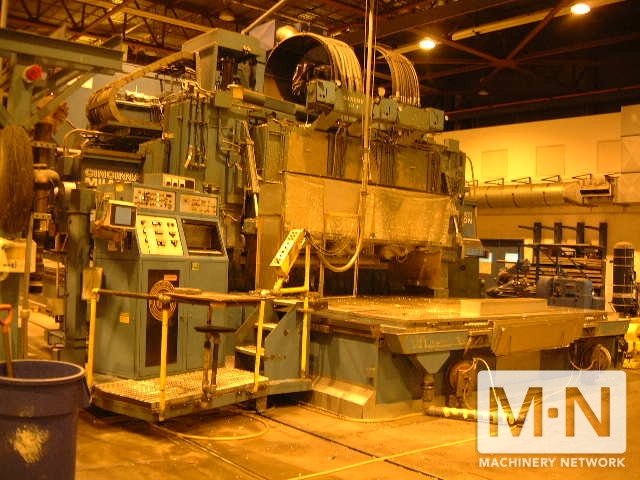

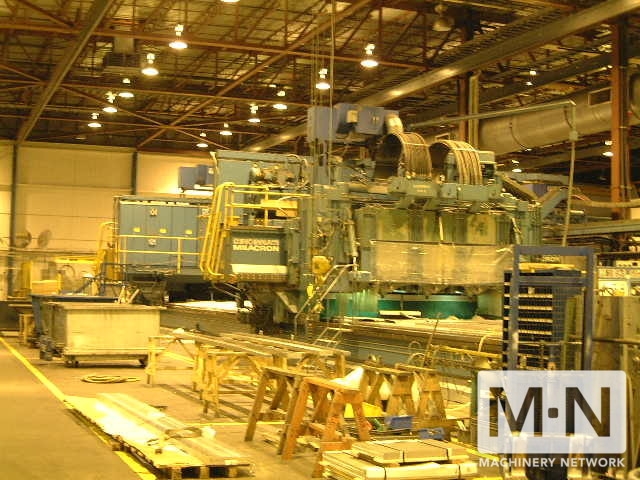

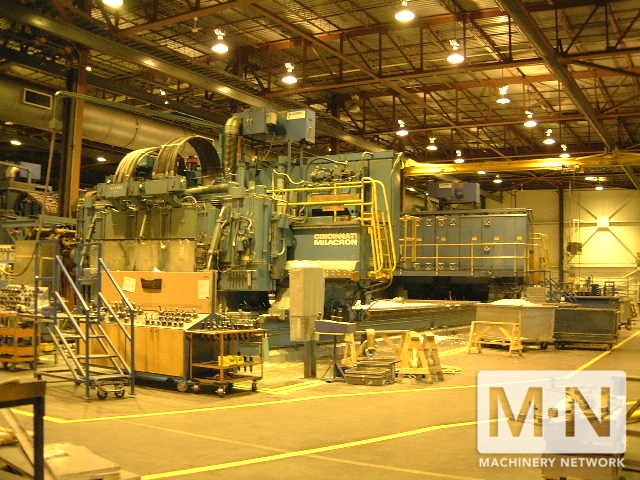

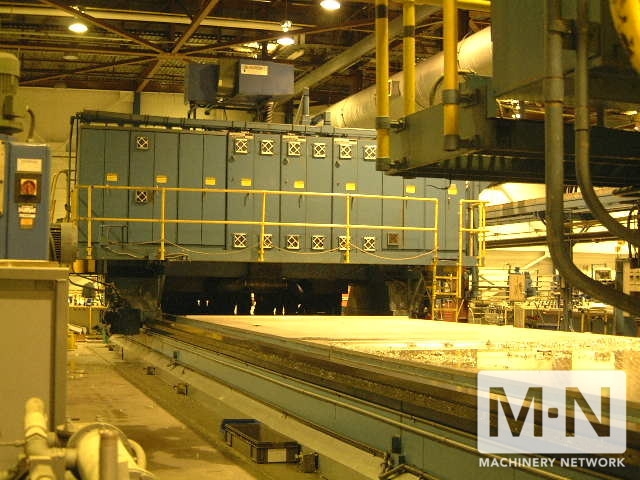

(1) USED CINCINNATI 5-AXIS 3-SPINDLE CNC PROFILER
NEW 1982
SPECIFICATIONS:
TABLE SIZE: 160" X 65'9"
TRAVELS -X AXIS: 79.7
-Y AXIS: 84"
-Z AXIS: 18"
-A & B AXIS: +/- 25 DEG
SPINDLE NOSE TO TABLE TOP: 5" - 23"
SPINDLE CENTER DISTANCE: 40" +/- .001"
SPINDLE SPEED: 18 - 3600 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: #50 NS
RAPID TRAVERSE RATES
-X/Y AXIS: 200 IPM
-Z AXIS: 60 IPM
-A/B AXIS: 240 DPM
MACHINE DIMENSIONS: 90 X 32.10 X 18
EQUIPPED WITH:
ACRAMATIC BIG BLUE CONTROL
SIMODRIVE 611 SIEMENS SPINDLE CONTROL
(2)RAILS
NEW 1982
SPECIFICATIONS:
TABLE SIZE: 160" X 65'9"
TRAVELS -X AXIS: 79.7
-Y AXIS: 84"
-Z AXIS: 18"
-A & B AXIS: +/- 25 DEG
SPINDLE NOSE TO TABLE TOP: 5" - 23"
SPINDLE CENTER DISTANCE: 40" +/- .001"
SPINDLE SPEED: 18 - 3600 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: #50 NS
RAPID TRAVERSE RATES
-X/Y AXIS: 200 IPM
-Z AXIS: 60 IPM
-A/B AXIS: 240 DPM
MACHINE DIMENSIONS: 90 X 32.10 X 18
EQUIPPED WITH:
ACRAMATIC BIG BLUE CONTROL
SIMODRIVE 611 SIEMENS SPINDLE CONTROL
(2)RAILS
