GANESH UNKNOWN
Type:
Vertical Machining Centers
Manufacturer:
GANESH
Model:
UNKNOWN
Condition:
Not Specified
Year:
2002
Stock #:
23750
Status:
Sold
Description:
FANUC OiM CNC, 12" x 50" TBL, 32" x 20" x 21", CAT 40, 12 ATC, 8K RPM,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

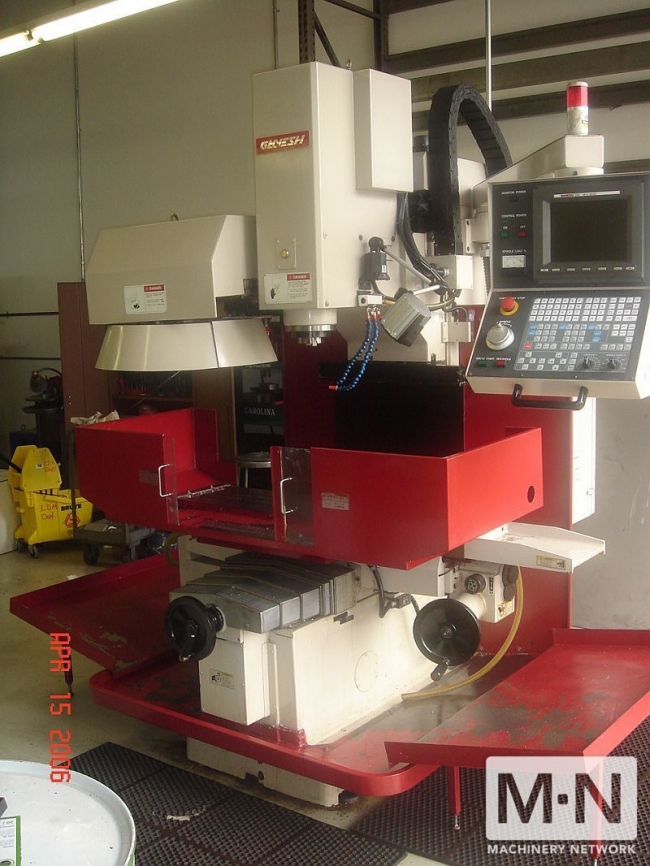

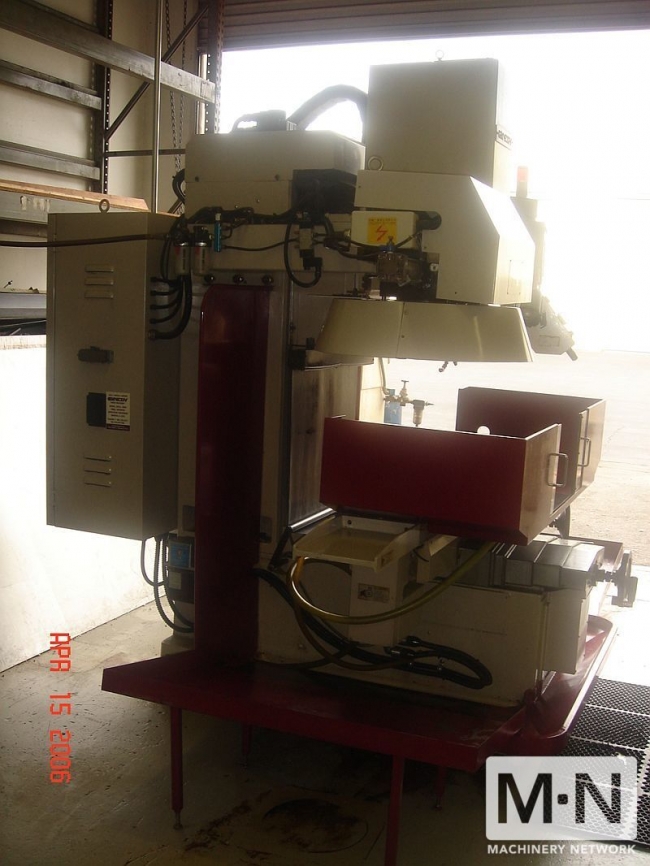

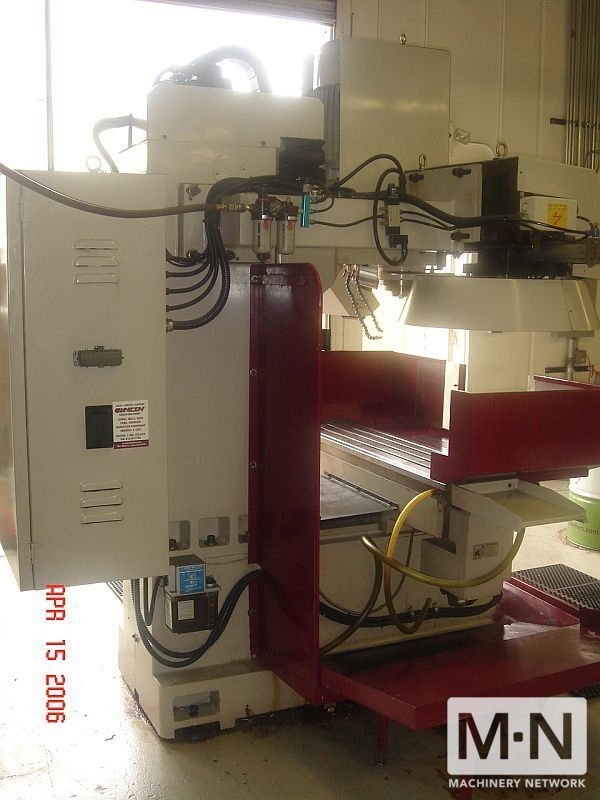

1) USED GANESH CNC BED MILL NEW IN 2002
SPECIFICATIONS:
TABLE SIZE: 12"X50"
TRAVELS - X AXIS: 32"
- Y AXIS: 19.6"
- Z AXIS: 21"
TOOL CHANGER: 12 ATC
SPINDLE SPEED: 8000 RPM
SPINDLE MOTOR: 15 HP
SPINDLE TAPER: CAT 40
EQUIPPED WITH

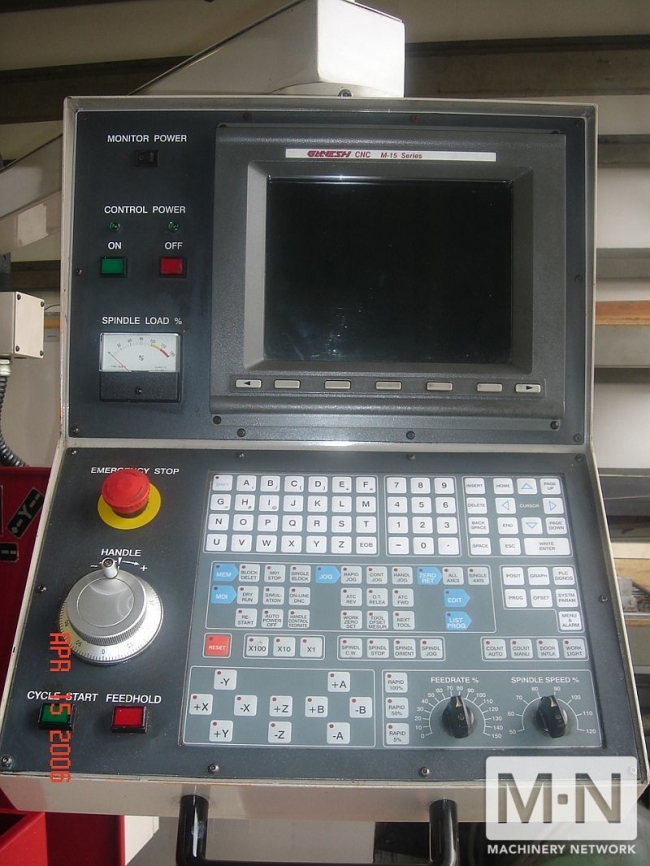

FANUC OiM COMPATIBLE CNC CONTROL
ALL AVAILABLE MANUALS

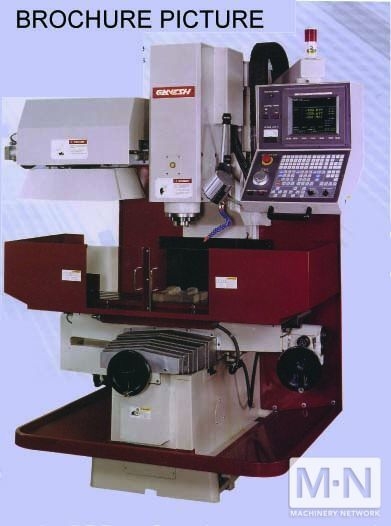

BROCHURE TEXT BELOW.
REPLACEMENT COST: JUST OVER $40K
CNC MACHINING CENTER
GANESH CNC Machining Centers are perfect for your toolroom or production environment. With a 15HP and heavy duty box ways,
STANDARD MACHINE FEATURES:
Meehanite Casting, fine grain and high density cast iron using the superior Meehanite process yields superior vibration dampening and improved surface finish and tool life
Turcite-B Red Furon Coated way surfaces (Made in USA)
Automatic tool change with12tool capacity (16-tool ATC option)
5-HP Spindle Motor with Cat-40 Taper spindle for superior metal removal capability
Matched pair of Fafnir ABEC Class-7 Super Precision spindle bearings (Made in England)
Spindle Runout 0. 0002" maximum
Axis Travel X-Y-Z, 32 " x 19.6" x 21" travels
Precision ground double-nut ballscrews
Hardened and Ground Square Bedways
Hardened and Ground Square Heavy-Duty extra wide box way Saddle
Hardened and Ground Square Slideway for Column
Hardened and Ground Square Table 50" x 12" table with 34.25" work surface length
T-slots ground to 0.625"
Automatic Metered Lubrication for slideways and ballscrews
Exclusively designed built in leveling ledge to level machine low to ground
Telescoping way covers are included for added safety and protection of machine
Built-in coolant system featuring 3-coolant lines with separate flow control valves
Chip-Tray with coolant collector, and chip enclosure for worktable are included
Water resistant halogen swing-arm worklamp is included
Alarm lamp is included
SPECIFICATIONS:
TABLE SIZE: 12"X50"
TRAVELS - X AXIS: 32"
- Y AXIS: 19.6"
- Z AXIS: 21"
TOOL CHANGER: 12 ATC
SPINDLE SPEED: 8000 RPM
SPINDLE MOTOR: 15 HP
SPINDLE TAPER: CAT 40
EQUIPPED WITH
FANUC OiM COMPATIBLE CNC CONTROL
ALL AVAILABLE MANUALS
BROCHURE TEXT BELOW.
REPLACEMENT COST: JUST OVER $40K
CNC MACHINING CENTER
GANESH CNC Machining Centers are perfect for your toolroom or production environment. With a 15HP and heavy duty box ways,
STANDARD MACHINE FEATURES:
Meehanite Casting, fine grain and high density cast iron using the superior Meehanite process yields superior vibration dampening and improved surface finish and tool life
Turcite-B Red Furon Coated way surfaces (Made in USA)
Automatic tool change with12tool capacity (16-tool ATC option)
5-HP Spindle Motor with Cat-40 Taper spindle for superior metal removal capability
Matched pair of Fafnir ABEC Class-7 Super Precision spindle bearings (Made in England)
Spindle Runout 0. 0002" maximum
Axis Travel X-Y-Z, 32 " x 19.6" x 21" travels
Precision ground double-nut ballscrews
Hardened and Ground Square Bedways
Hardened and Ground Square Heavy-Duty extra wide box way Saddle
Hardened and Ground Square Slideway for Column
Hardened and Ground Square Table 50" x 12" table with 34.25" work surface length
T-slots ground to 0.625"
Automatic Metered Lubrication for slideways and ballscrews
Exclusively designed built in leveling ledge to level machine low to ground
Telescoping way covers are included for added safety and protection of machine
Built-in coolant system featuring 3-coolant lines with separate flow control valves
Chip-Tray with coolant collector, and chip enclosure for worktable are included
Water resistant halogen swing-arm worklamp is included
Alarm lamp is included
