CINCINNATI SABRE 750
Type:
Vertical Machining Centers
Manufacturer:
CINCINNATI
Model:
SABRE 750
Condition:
Not Specified
Year:
1990
Stock #:
13059
Status:
Sold
Description:
30"x15"x20",ACRA 850, 15HP, 8KJ RPM, 21 ATC, CT40
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

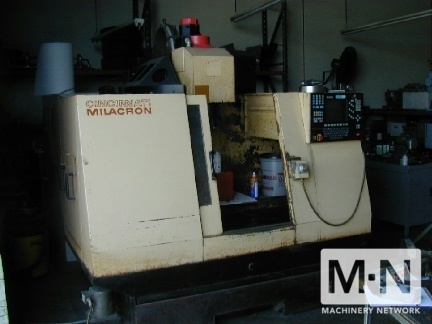

1) CINCINNATI SABRE 750 CNC VERTICAL MACHINING
CENTER, S/N: 7020-a01-90-1087, NEW 1990
INSTALLED 1991
SPECIFICATIONS:
TRAVELS - X-AXIS: 30"
Y-AXIS 15"
Z-AXIS: 20"
TAPLE DIMENSIONS: 15.8" X 23.6
MAX. CLEARANCE TBL TOP TO SPDL NOSE: 25"
FEED RATES (ALL AXES): .1-480 IPM
TOOL STORAGE CAPACITY: 21
SPINDLE HORSEPOWER: 15 HP
SPINDLE SPEEDS: 60-8000 RPM
SPINDLE TAPER: #40CAT V-FLG
APPROX. MACHINE DIMENSIONS: 94" X 85"
APPROX. MACHINE HEIGHT: 100"
APPROX. MACHINE WEIGHT: 8,000 LBS
EQUIPPED WITH:

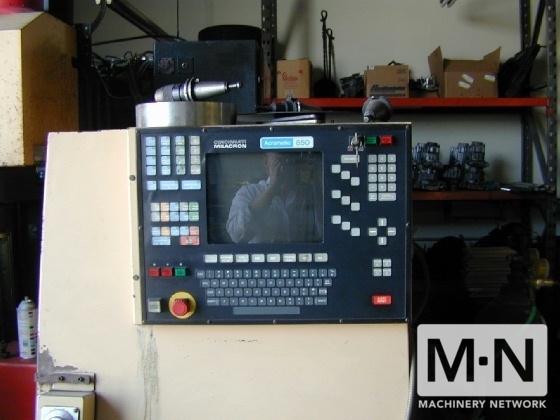

CINCINNATI ACRAMATIC 850 CNC W/12" CRT,
CHIP & COOLANT SYSTEM
TOOLING
CENTER, S/N: 7020-a01-90-1087, NEW 1990
INSTALLED 1991
SPECIFICATIONS:
TRAVELS - X-AXIS: 30"
Y-AXIS 15"
Z-AXIS: 20"
TAPLE DIMENSIONS: 15.8" X 23.6
MAX. CLEARANCE TBL TOP TO SPDL NOSE: 25"
FEED RATES (ALL AXES): .1-480 IPM
TOOL STORAGE CAPACITY: 21
SPINDLE HORSEPOWER: 15 HP
SPINDLE SPEEDS: 60-8000 RPM
SPINDLE TAPER: #40CAT V-FLG
APPROX. MACHINE DIMENSIONS: 94" X 85"
APPROX. MACHINE HEIGHT: 100"
APPROX. MACHINE WEIGHT: 8,000 LBS
EQUIPPED WITH:
CINCINNATI ACRAMATIC 850 CNC W/12" CRT,
CHIP & COOLANT SYSTEM
TOOLING
