CINCINNATI ARROW 1000
Type:
Vertical Machining Centers
Manufacturer:
CINCINNATI
Model:
ARROW 1000
Condition:
Not Specified
Year:
1998
Stock #:
34236
Status:
Sold
Description:

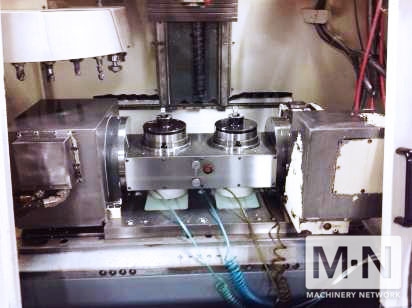

ACRAMATIC 2100 PC BASED CNC, 40"x20"x22", 44"x20" TABLE, 21 ATC, 8,000 RPM, 15 HP, CAT 40, TSUDAKOMA TWIN CHUCK ROTARY & TILTING TABLE
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

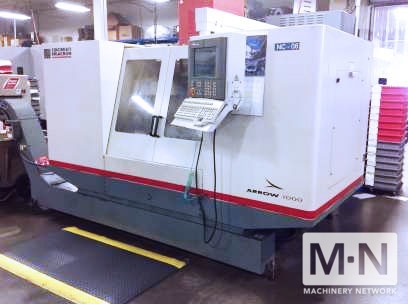

(1) USED CINCINNATI ARROW VMC-1000 5-AXIS MACHINING CENTER
NEW 1998
SPECIFICATIONS:
X TRAVEL (LONGITUDINAL)........................... 40"
Y TRAVEL (CROSS).................................. 20"
Z TRAVEL (VERTICAL)............................... 22"
TABLE WORKING SURFACE............................. 44"X20"
TABLE WORK LOAD CAPACITY.......................... 1540 LBS
SPINDLE HORSEPOWER................................ 15 HP
SPINDLE SPEEDS.................................... 60-8000 RPM
SPINDLE TAPER................................. CAT 40
FEED RATES, X & Y................................. 0.1 TO 472 IPM
FEED RATE, Z...................................... 0.1 TO 472 IPM
RAPID TRAVERSE X & Y.............................. 787 IPM
RAPID TRAVERSE Z.................................. 787 IPM
TOOL STORAGE CAPACITY............................. 21
APPROXIMATE DIMENSIONS............................ 138" X 118"
APPROXIMATE HEIGHT................................ 109"
APPROXIMATE WEIGHT................................ 9,925 LBS
EQUIPPED WITH:
ACRAMATIC 2100 PC BASED CNC CONTROL W/ COLOR CRT
MAXIMUM PROGRAM STORAGE
5TH AXIS SYSTEM INSTALLED AND FULLY FUNCTIONAL
MC EXTENDED CYCLES
MIGRATING TOOLS
TRANSLATION
FLOPPY DISK DRIVE
RS-232 PORT
21 STATION AUTOMATIC TOOL CHANGER
FULL COOLANT ENCLOSURE
CHIP CONVEYOR
COOLANT SYSTEM
NEW 1998
SPECIFICATIONS:
X TRAVEL (LONGITUDINAL)........................... 40"
Y TRAVEL (CROSS).................................. 20"
Z TRAVEL (VERTICAL)............................... 22"
TABLE WORKING SURFACE............................. 44"X20"
TABLE WORK LOAD CAPACITY.......................... 1540 LBS
SPINDLE HORSEPOWER................................ 15 HP
SPINDLE SPEEDS.................................... 60-8000 RPM
SPINDLE TAPER................................. CAT 40
FEED RATES, X & Y................................. 0.1 TO 472 IPM
FEED RATE, Z...................................... 0.1 TO 472 IPM
RAPID TRAVERSE X & Y.............................. 787 IPM
RAPID TRAVERSE Z.................................. 787 IPM
TOOL STORAGE CAPACITY............................. 21
APPROXIMATE DIMENSIONS............................ 138" X 118"
APPROXIMATE HEIGHT................................ 109"
APPROXIMATE WEIGHT................................ 9,925 LBS
EQUIPPED WITH:
ACRAMATIC 2100 PC BASED CNC CONTROL W/ COLOR CRT
MAXIMUM PROGRAM STORAGE
5TH AXIS SYSTEM INSTALLED AND FULLY FUNCTIONAL
MC EXTENDED CYCLES
MIGRATING TOOLS
TRANSLATION
FLOPPY DISK DRIVE
RS-232 PORT
21 STATION AUTOMATIC TOOL CHANGER
FULL COOLANT ENCLOSURE
CHIP CONVEYOR
COOLANT SYSTEM
