Machinery Network > Used Inventory > LIKE NEW BALEIGH BP7098 CNC PRESS BRAKE

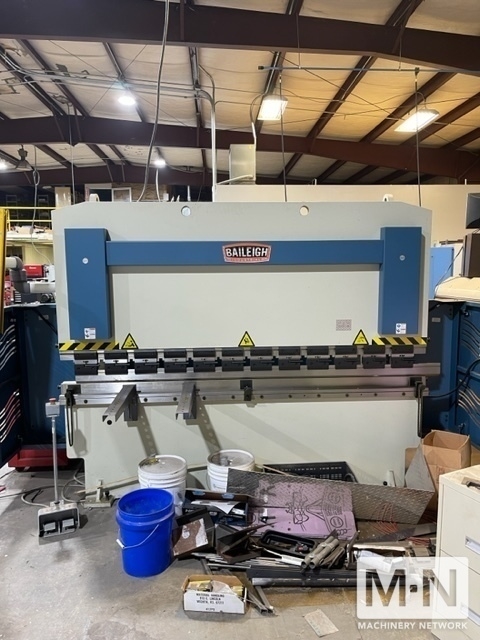

LIKE NEW BALEIGH BP7098 CNC PRESS BRAKE

Type:

BRAKES, PRESS, N/C & CNC, (Including Hyd/Mech)

Manufacturer:

BALEIGH

Model:

BP7098 CNC

Condition:

Not Specified

Year:

2018

Stock #:

42312

Status:

For Sale

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

Table Length 98.4"
Gauge Length 17201
Return Speed 2.36" / sec.
Maximum Pressure 70 tons
Throat Depth 9.8"
Stroke Distance 4.7"
Approach Speed 2.0" / sec.
Back Gauge Motor 1/2 hp
Bending Speed .6" / sec.
Main Motor 7 hp
Distance Between Housings 80"
Distance From Table To Ram 14"
Power 220V / 3-phase
Shipping Weight 9300lbs
Shipping Dimensions (Inches) 135x66x90

Equipped With

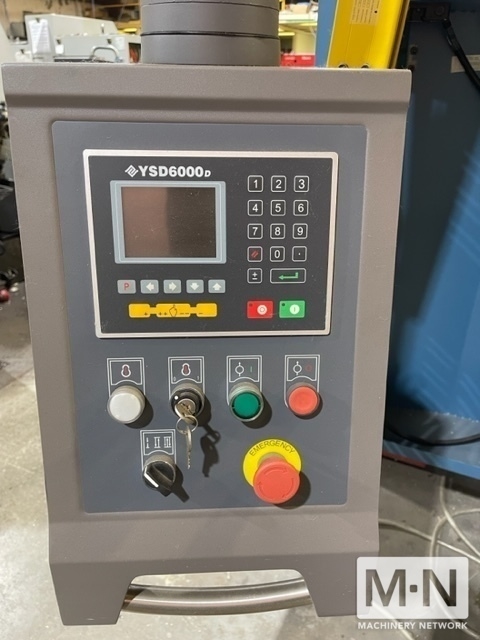

ACCURATE, USER-FRIENDLY CONTROL SYSTEM

Runs in single-bend mode or programmable mode.

Comes standard with 2 axes of control: stroke and back gauge distance.

Simple controller is so intuitive that you could train someone to use it in 5 minutes.

Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.

Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.

Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.

You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.

Choose between 2 speeds: a rapid approach and retract and a slow bending speed.

Speed option lets you reduce cycle time and make your shop more efficient.
