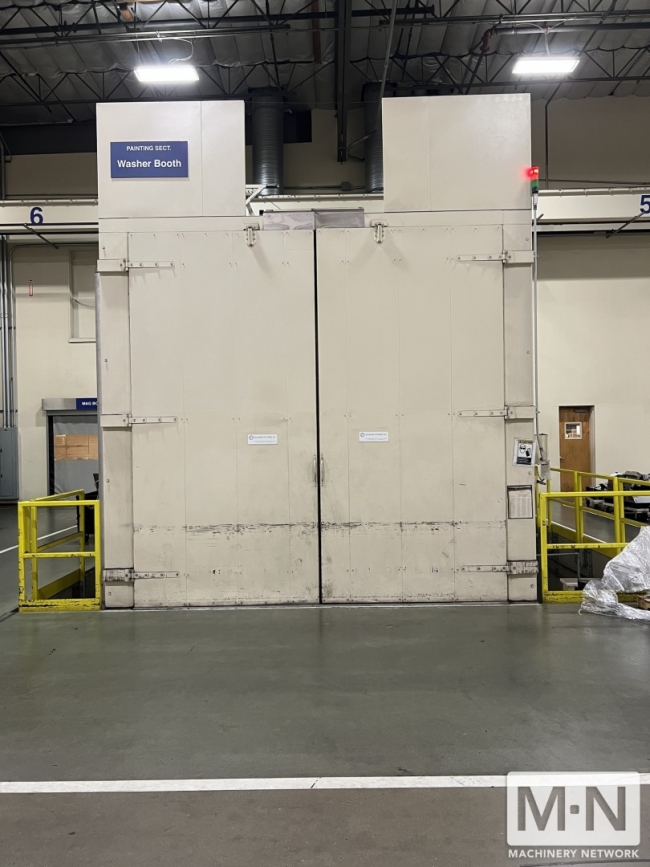

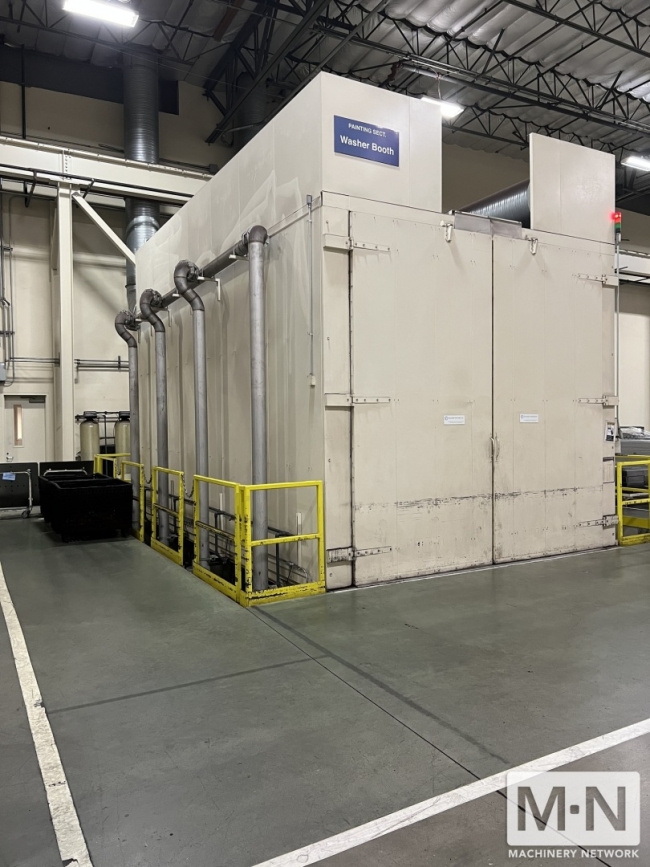

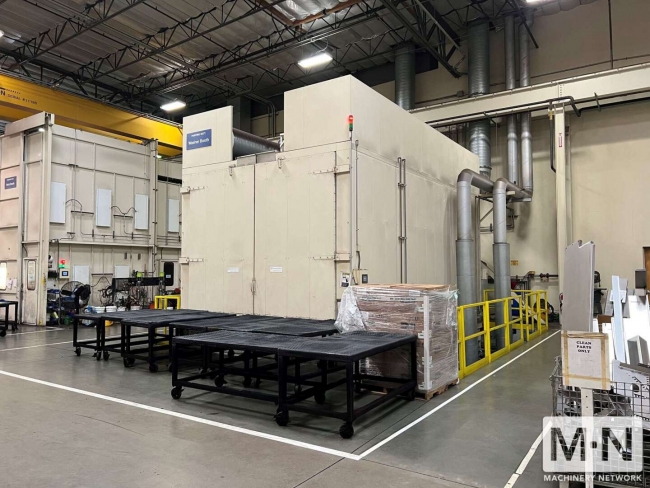

Tellkamp Systems Batch Liquid Paint System
Type:
PAINT SYSTEMS & EQUIPMENT, (Incl. Powder Coating Lines)
Manufacturer:

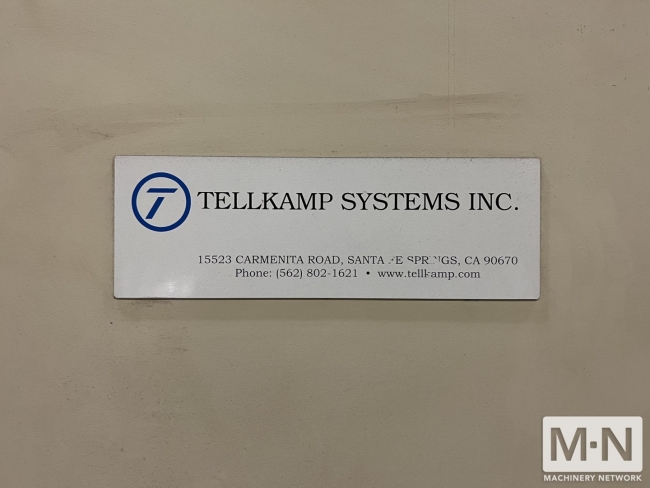

TELLKAMP SYSTEMS
Model:
BATCH LIQUID PAINT SYSTEM
Condition:
Not Specified
Stock #:
42289
Status:
For Sale
Attachments:
Attachment #1
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

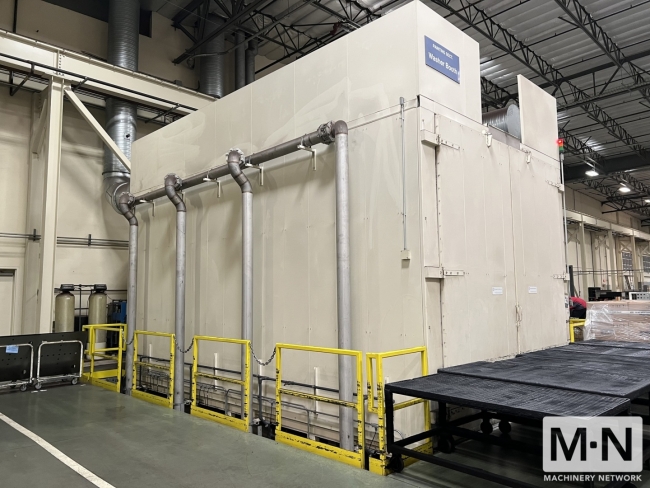

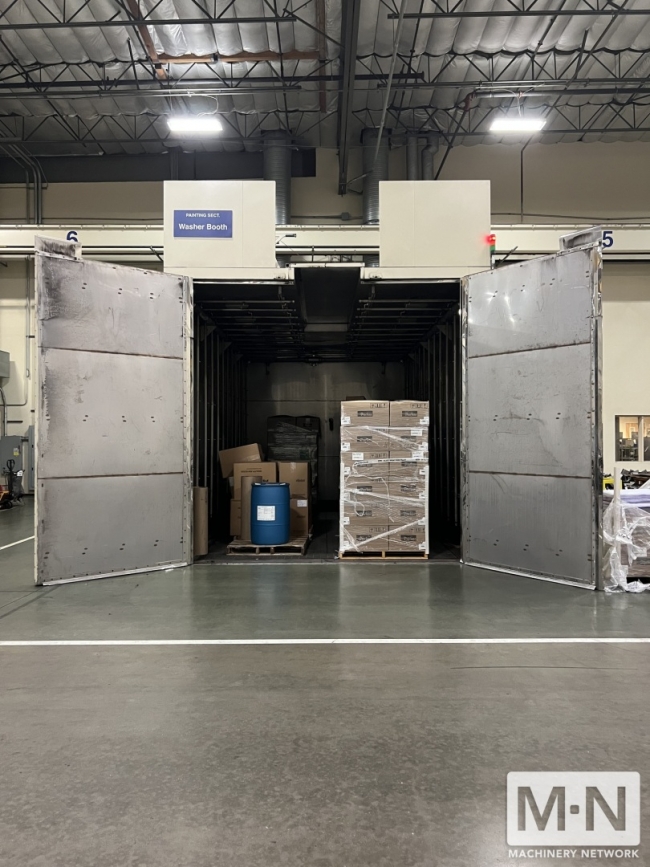

Spray Zone 23' - 8" L x 13' - 2" W
Tunnel Construction (inner shell) 11 ga. 304 SS
Tunnel Outer Shell (with 4" insulation) 20 ga. galvanized
# Risers/Side 16 (32 total)
Riser Spacing 16"
Washer Riser Material 304 SS
Nozzle Material Stainless Steel
Nozzle Type V-jet
Number of Nozzles 224 (7 per riser)
Nozzle Capacity (GPM) 2.6
Spray Pressure 20 psi

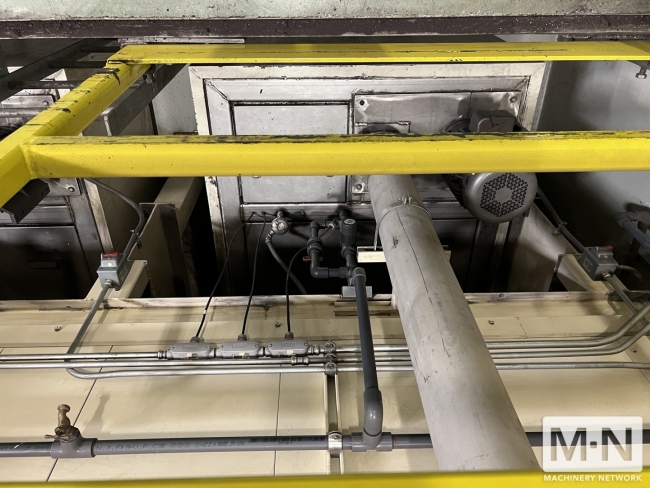

Pump Capacity 605 GPM (2300 LPM)
Pump Material 304 SS
Temperature 122 - 140 F (50 – 60 C)
Tank Capacity 1580 gal. (6000 liters)
Tank Length 16' - 5"
Tank Construction 11 ga. 304 SS
Tank Outer Shell (with 2" insulation) 20 ga. galvanized

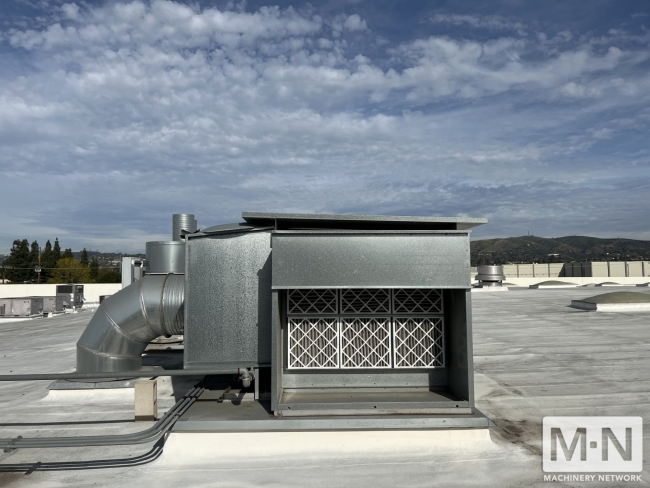

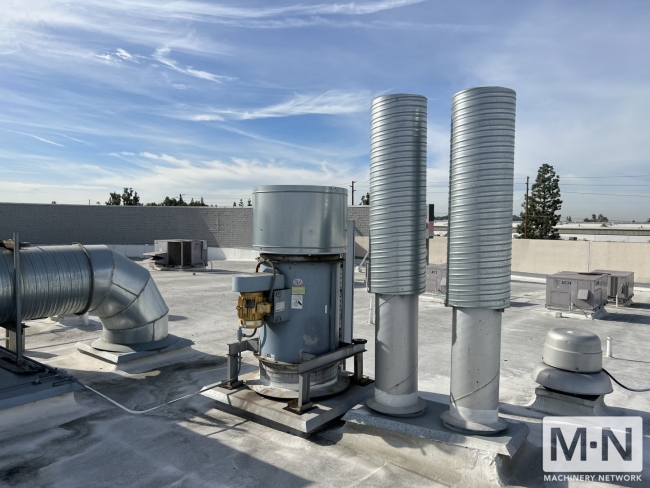

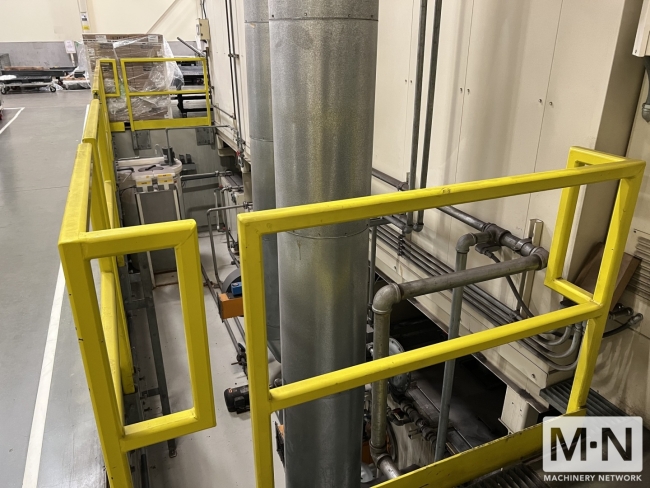

Burner Firetube for Tank Heating Sch. 40 304 SS
Pump Inlet Screens 8 Mesh
Washer Header Material 304 SS
Tunnel Construction (inner shell) 11 ga. 304 SS
Tunnel Outer Shell (with 4" insulation) 20 ga. galvanized
# Risers/Side 16 (32 total)
Riser Spacing 16"
Washer Riser Material 304 SS
Nozzle Material Stainless Steel
Nozzle Type V-jet
Number of Nozzles 224 (7 per riser)
Nozzle Capacity (GPM) 2.6
Spray Pressure 20 psi
Pump Capacity 605 GPM (2300 LPM)
Pump Material 304 SS
Temperature 122 - 140 F (50 – 60 C)
Tank Capacity 1580 gal. (6000 liters)
Tank Length 16' - 5"
Tank Construction 11 ga. 304 SS
Tank Outer Shell (with 2" insulation) 20 ga. galvanized
Burner Firetube for Tank Heating Sch. 40 304 SS
Pump Inlet Screens 8 Mesh
Washer Header Material 304 SS
