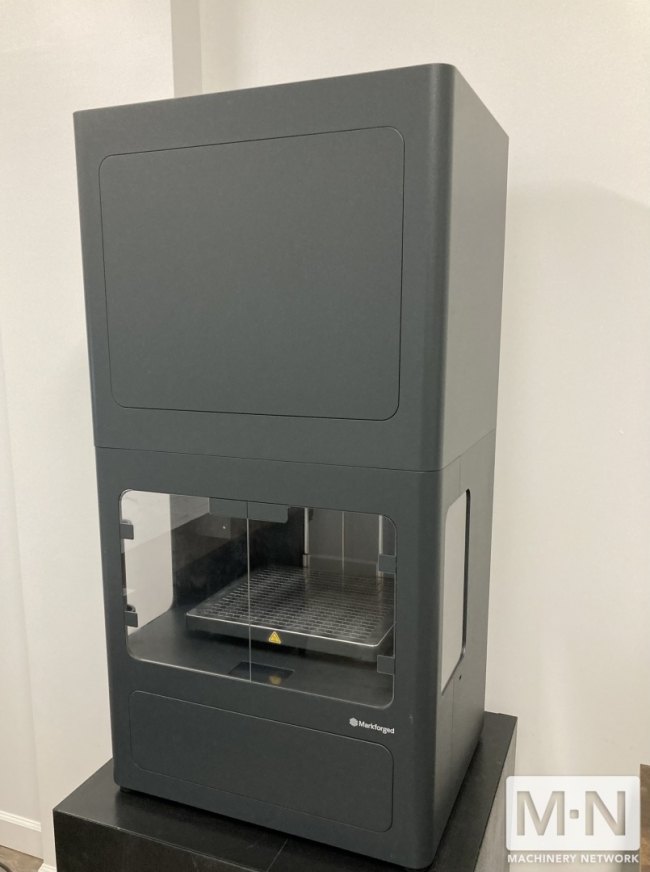

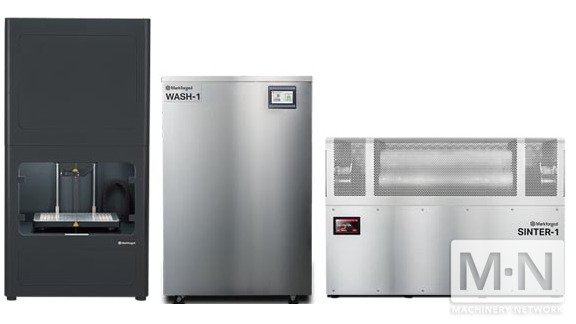

Markforged Metal X (Gen 2) 3D Printing System - New in Crate
Type:
3D PRINTERS
Manufacturer:
MARKFORGED
Model:
METAL X
Condition:
Not Specified
Stock #:
42183
Status:
For Sale
Description:
"Get your hands on a high-quality Markforged Metal X (Gen 2) 3D Printing System at a great price! This used equipment from Machinery Network Inc. is perfect for all your 3D printing needs. With a spacious build volume, heated print chamber, and auto bed leveling, this printer delivers exceptional results. It supports various metal materials like stainless steel and tool steel, allowing you to create strong and durable parts. Don't miss out on this opportunity to add advanced 3D printing capabilities to your workshop. Shop now!"
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Printer Properties
Process Metal fused filament fabrication
Build Volume 300 x 220 x 180 mm (11.8 x 8.7 x 7.1 in)
Machine Size 575 x 467 x 1,120 mm (22.7 x 18.4 x 44.1 in), 75 kg (160 lbs)
Touchscreen: 12 cm (4.7 in) horizontal extension
Print Chamber Heated
Print Bed Heated, vacuum-sealed print sheet, auto bed leveling
Print System Two nozzles — Metal material and release material
Power Requirements 100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
RF Module Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials
Metal Material Stainless steel (17-4 PH), Tool steel (H13, A2, D2), Inconel 625, Copper
Release Material Ceramic (consumed at 1:10 ratio to metal spools, on average)
Media (Spools) Filament fed, bound powder
Part Properties
Max Part Size 250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg
Supports Metal material with ceramic release layer
Layer Height 50µm and 125µm post-sinter
Process Metal fused filament fabrication
Build Volume 300 x 220 x 180 mm (11.8 x 8.7 x 7.1 in)
Machine Size 575 x 467 x 1,120 mm (22.7 x 18.4 x 44.1 in), 75 kg (160 lbs)
Touchscreen: 12 cm (4.7 in) horizontal extension
Print Chamber Heated
Print Bed Heated, vacuum-sealed print sheet, auto bed leveling
Print System Two nozzles — Metal material and release material
Power Requirements 100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20
RF Module Operating Band 2.4 GHz Wi-Fi Standards 802.11 b/g/n
Materials
Metal Material Stainless steel (17-4 PH), Tool steel (H13, A2, D2), Inconel 625, Copper
Release Material Ceramic (consumed at 1:10 ratio to metal spools, on average)
Media (Spools) Filament fed, bound powder
Part Properties
Max Part Size 250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg
Supports Metal material with ceramic release layer
Layer Height 50µm and 125µm post-sinter

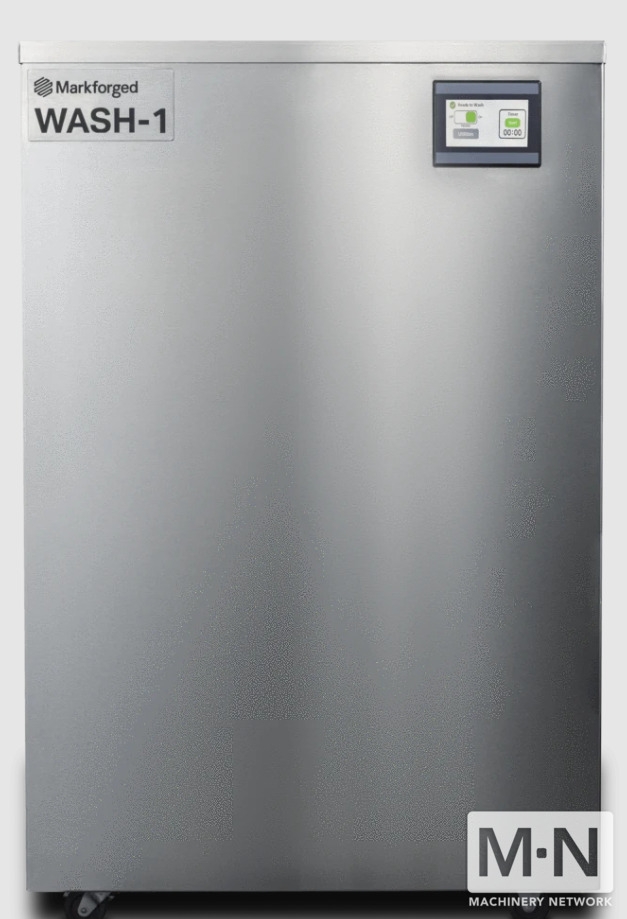

Washer-1 (Still Crated)
- All Metals Supported
- Opteon SF 79 Fluid
- Integrated Control System
- Washing Size: 14" x 10" x 8"
- Washing Volume: 18,356 Cubic cm

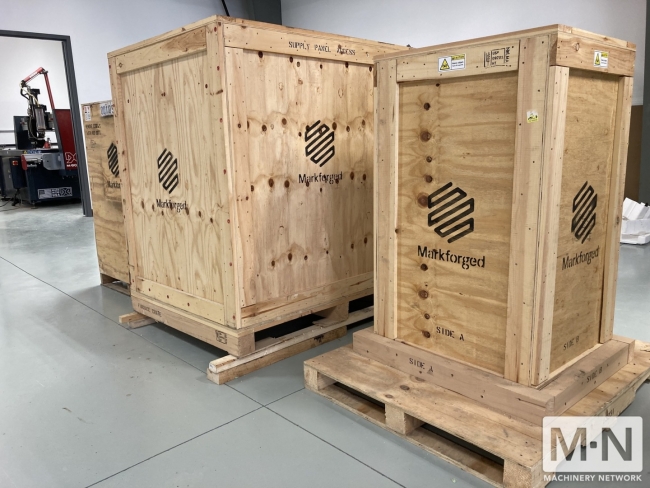

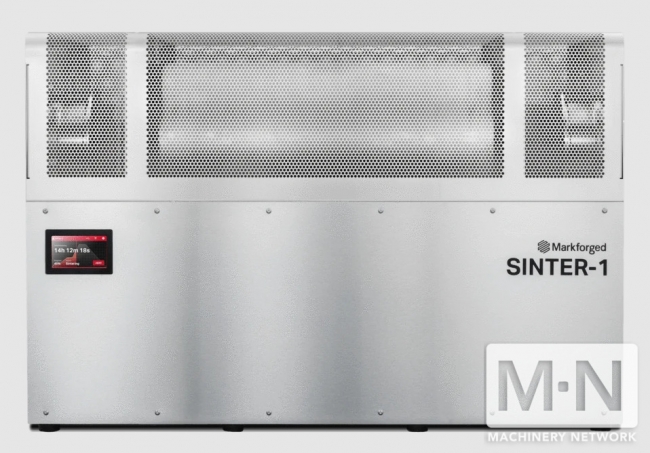

Sinter-1 (Still Crated) **important for the Sinter to be crated. Once it is fired you cannot move it without damaging the core**
- All Commercial Grad Metals Supported (Including Stainless Steel, Tool Steel, Inconel & Titanium)
- Heating Element: Kanthal
- Pre-programmed Automatic Cycling
- 1300 Degrees Celsius Peak Temperature
- Sintering Capacity: 5.55" ID x 12" L
- Sintering Volume: 4760 Cubic cm
