YEI MACHINERY MODEL YDN-2V-160-G-1 COMPLETE RECYLING LINE MFG 2020
Type:
EXTRUSION EQUIPMENT
Manufacturer:
YEI MACHINERY
Model:
YDN-2V-160-G1
Condition:
Not Specified
Year:
2020
Stock #:
42013
Status:
For Sale
Description:
YEI MACHINERY MODEL YDN-2V-160-G-1 COMPLETE RECYLING LINE MFG 2020
Videos:
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Line Consist of the
following:

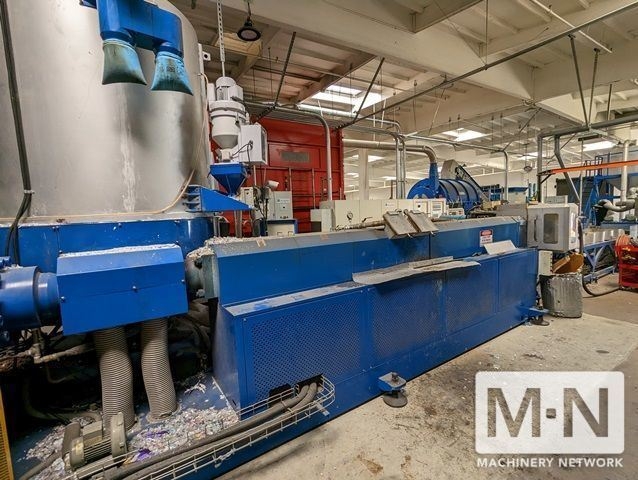

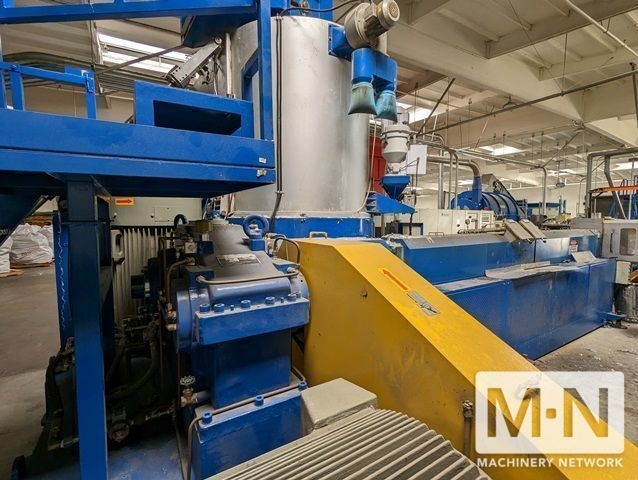

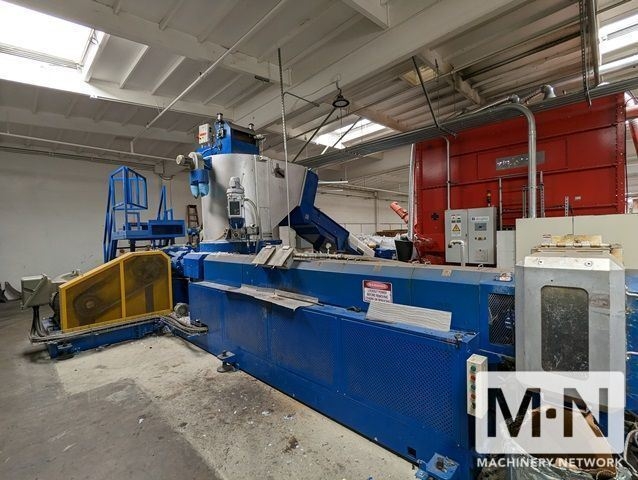

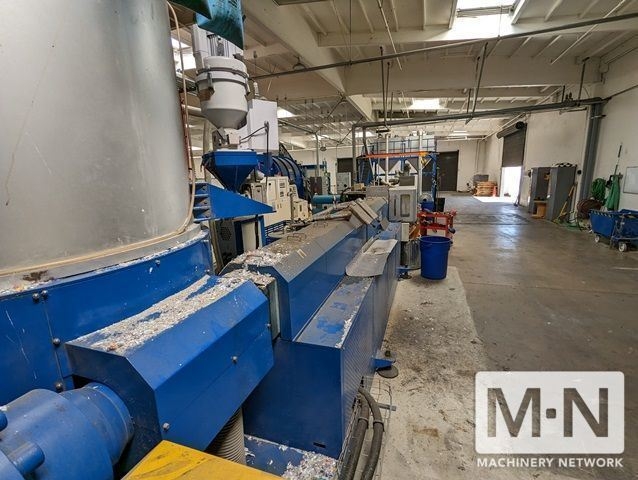

EXTRUDER EX-YDN-2V160 1
Type : Double Vented type
Gear Box : Double reduction, helical gear with
powerful thrust bearing, high torque and low
energy consumption.
Screw Diameter: 160m/m
L/D Ratio: 32/1 **
Screw Speed : 0-120rpm
Screw made of alloy steel SACM-645, polished and
nitrided.
Barrel made of alloy steel SACM-645, polished and
nitrided.

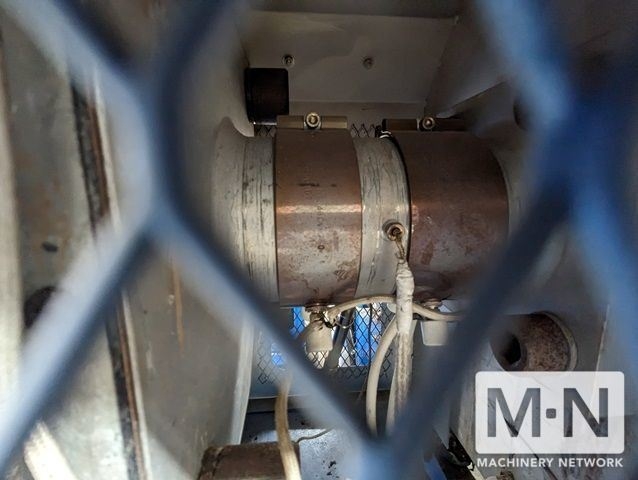

Barrel Heating Capacity : 78kw
Barrel Temperature Zone : 6 zones
Barrel Cooling : By 1/2HP air blowers x 6

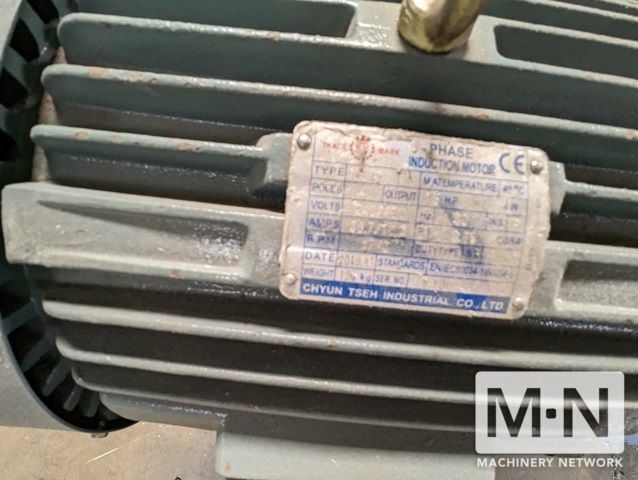

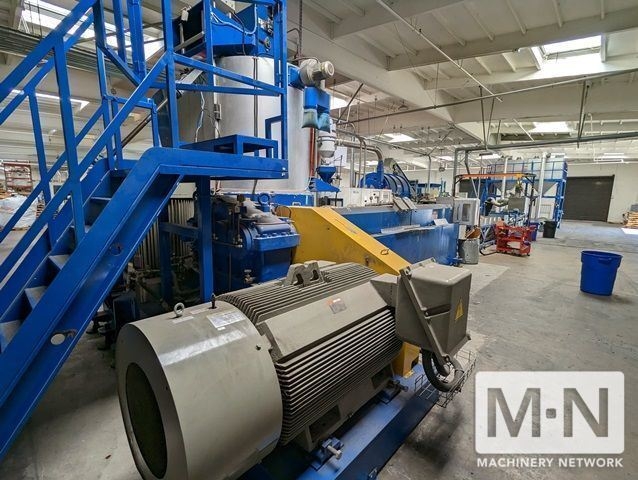

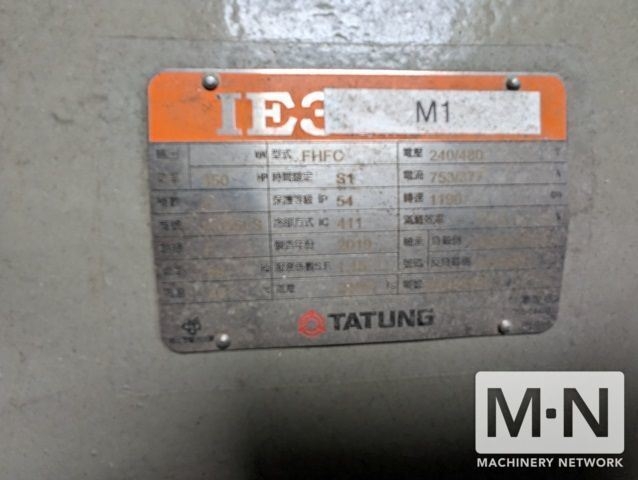

350HP AC MOTOR WITH INVERTER MO-AC-350-YDN 1
Horse Power :350HP
Inverter :350HP

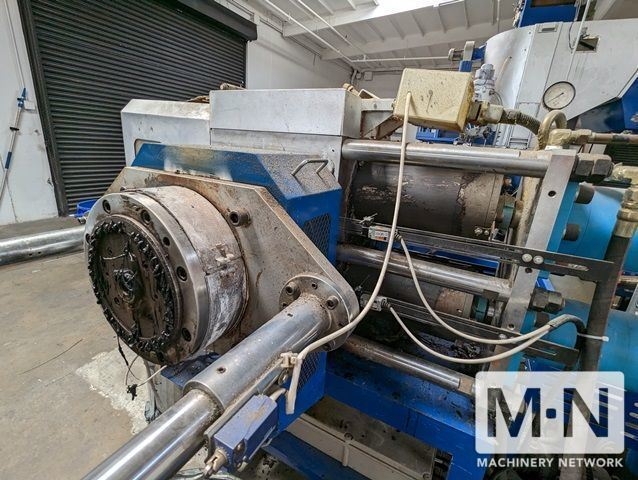

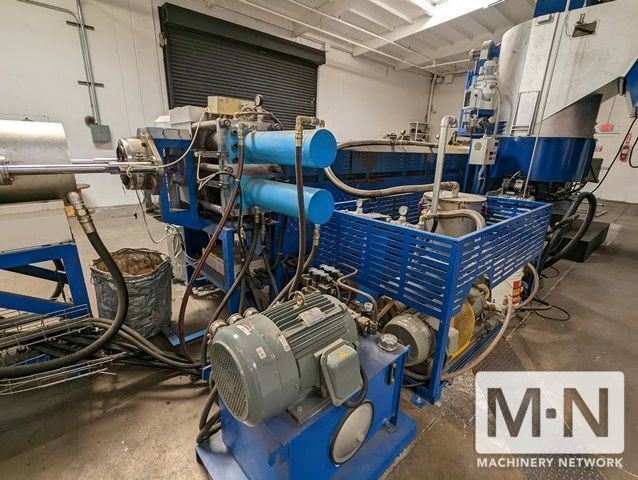

HYDRAULIC SCREEN CHANGER CH-160 1
Hydraulic Press : 15HP
Cylinder of Hydraulic x 2 pcs
With pressure transducer, pressure
indicator and alarm, machine will be automatically
shut off when the pressure exceeds the highest
allowable preset value.
Temperature Control Zone : 1

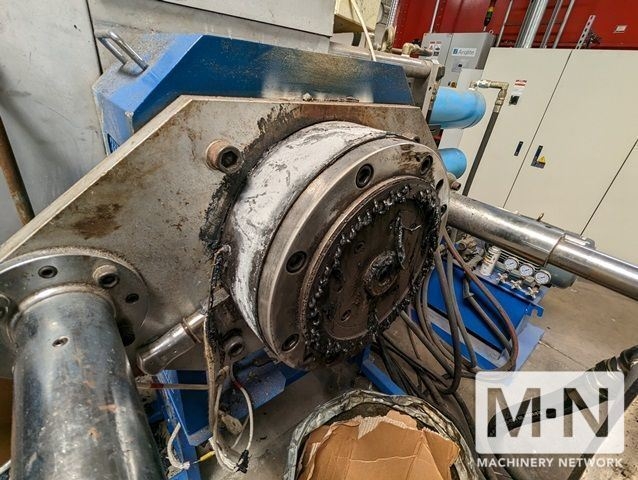

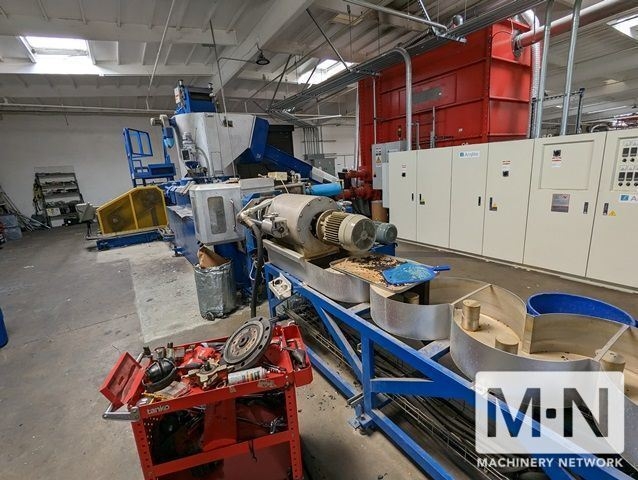

DIE WITH FACE CUT DIE-CUT-160 1
Type : Hot pelletizing at outlet of die face
No. of Blade to be Used : Max. 4 pcs.
Temperature Control Zone : 1 zone
Die Heating Capacity : 3.7 kw
Die Head: PE x 1 pc + PP x 1 pc **

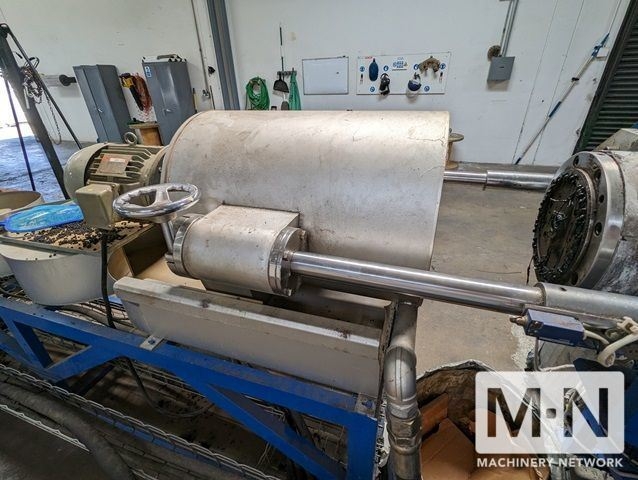

COOLING DEVICE TU-CUT-160 1
Pelletizing Motor : 7.5Hp AC inverter motor x 1
Stainless Steel made Water Sprayer : 600m/m x
450m/m x 700m/m

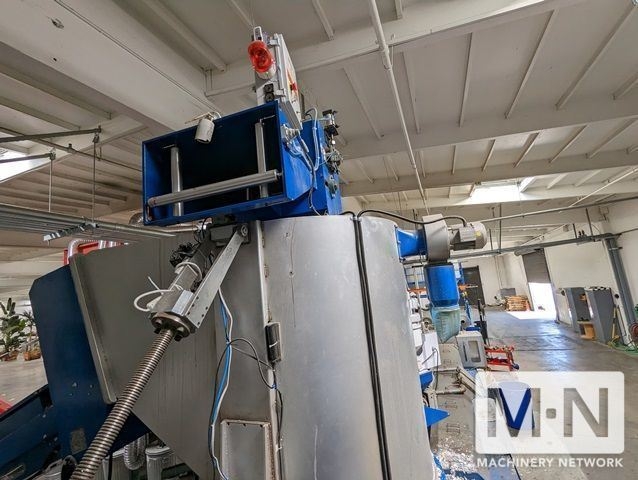

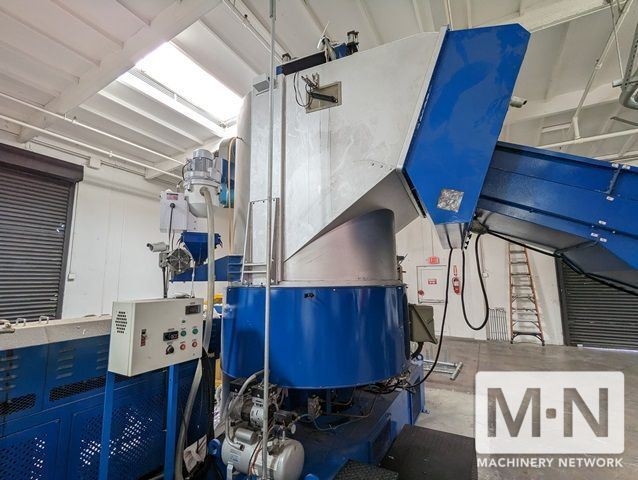

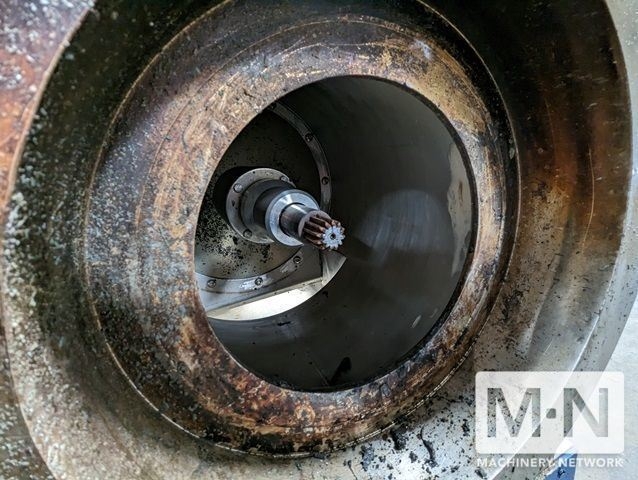

SHREDDING DRUM WD-YDN-160-A 1
Type : Vertical type with temperature control

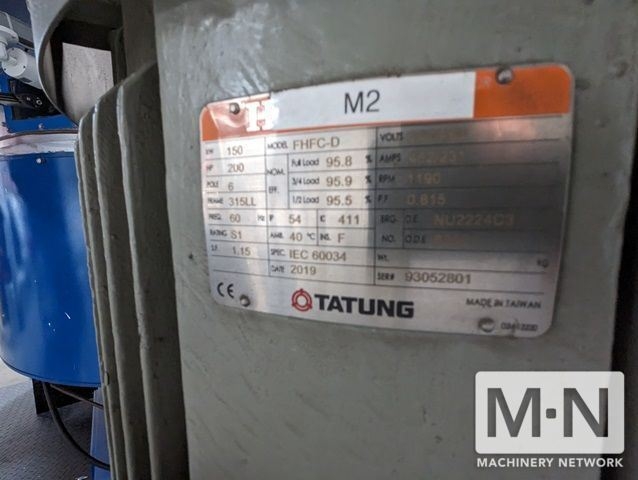

Shredding Motor: 200HP AC Motor W/Inverter x 1set*
Rotary Blade : 12 pcs on Knife holding plate
Stationary Blade : 17 pcs in drum
Shredding Drum Diameter : 1500m/m **
Cooling Blower : 10HP x 1 set **
With water spraying device for instant cooling
With sight glass
Temperature Control : 1 zone

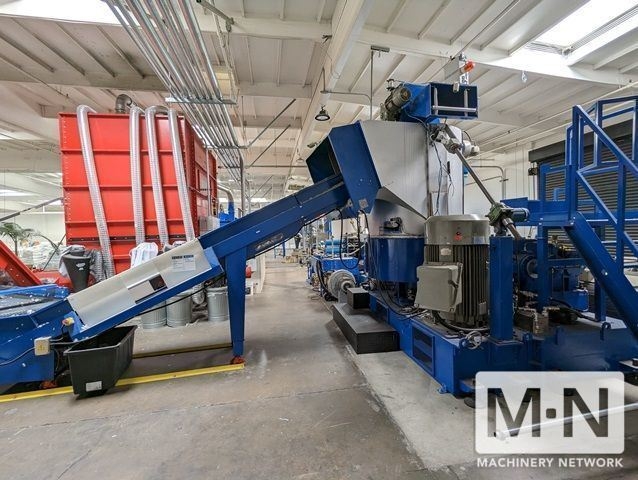

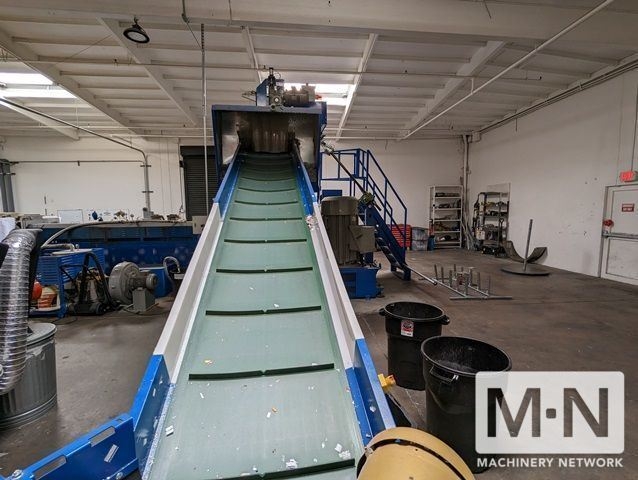

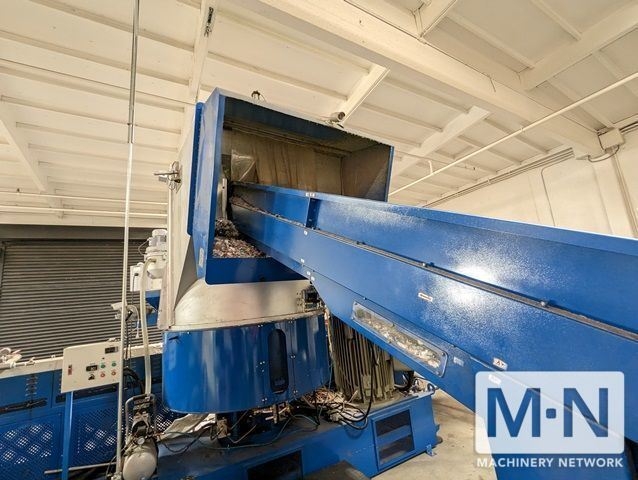

FEEDING CONVEYOR TR-YDN-160 1
Conveyor Size : 5200m/m(L) x 670m/m(W)
Motor : 3HP

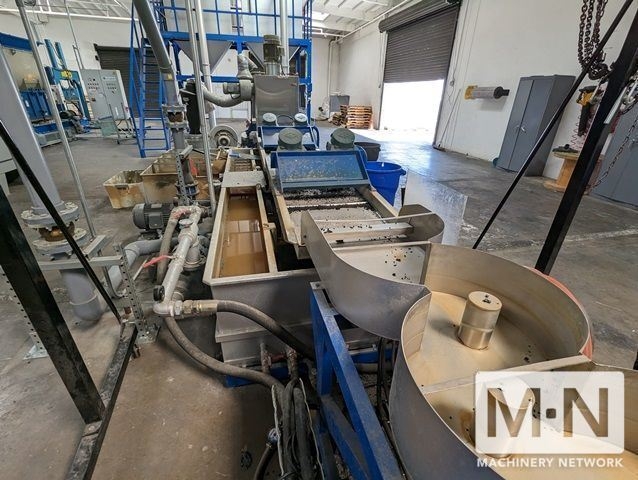

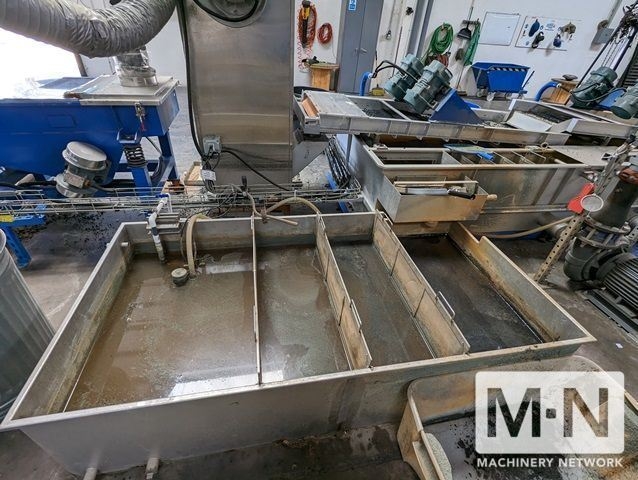

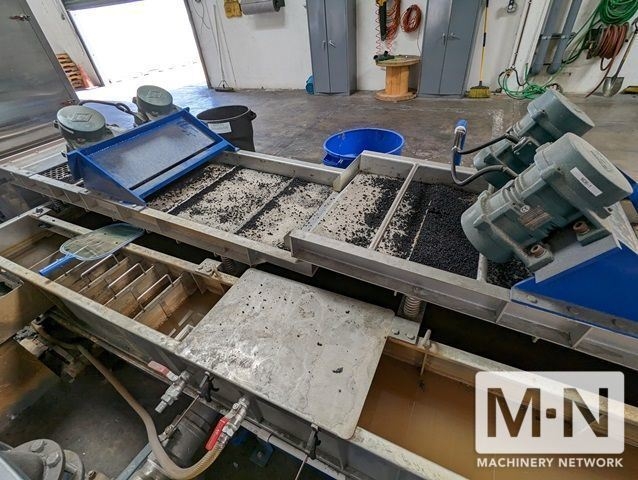

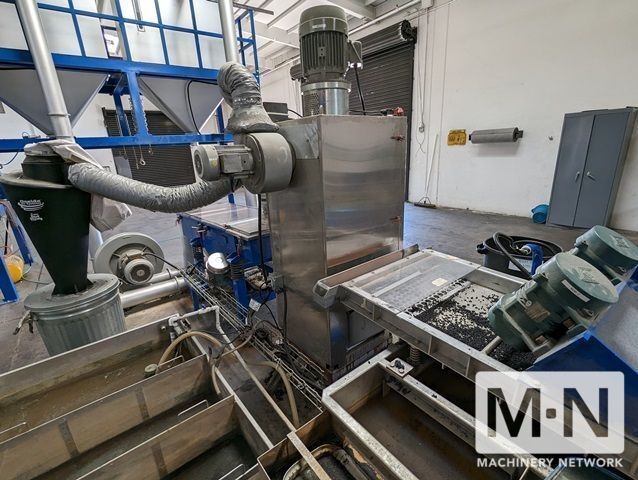

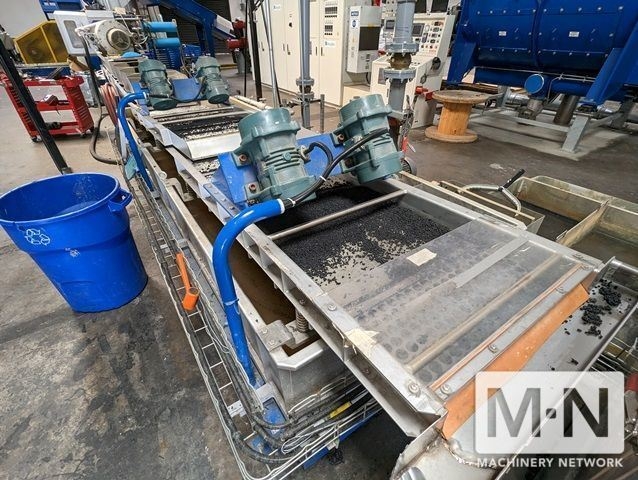

VIBRATING DRYER TU-YDN-160-A 1

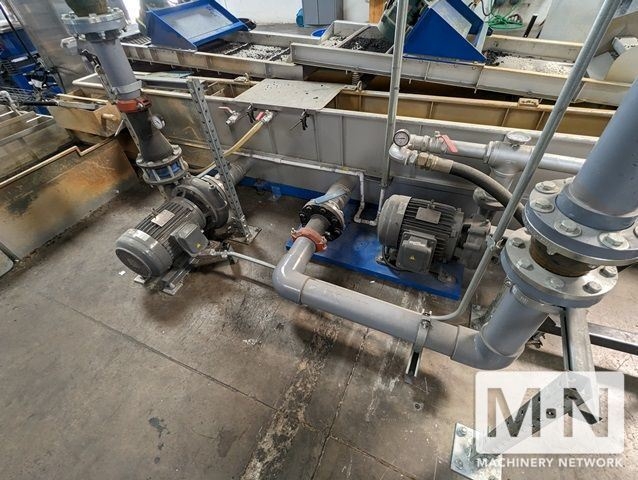

Water Pump : 7-1/2HP x 1 pc.
Vibrating Motor : 1/4HP x 4 pcs
Tank Dimension : 3695m/m(L)x880m/m(W)x521m/m(H)

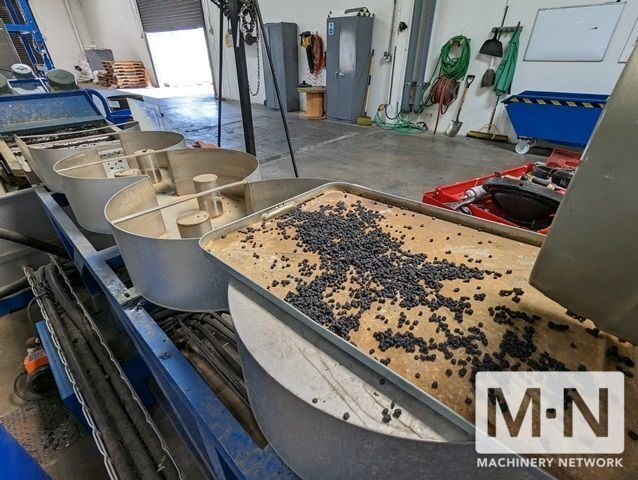

COLLECTION TANK FOR PELLETS CO-160 1
Blower: 10HPx1 with conveying pipe
Collection Drum : Made of stainless steel

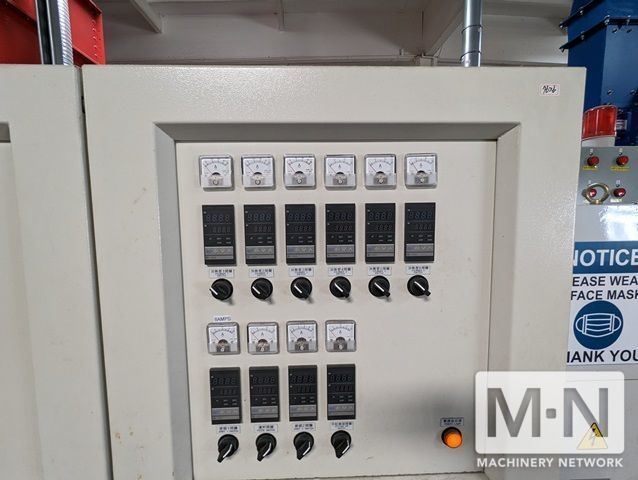

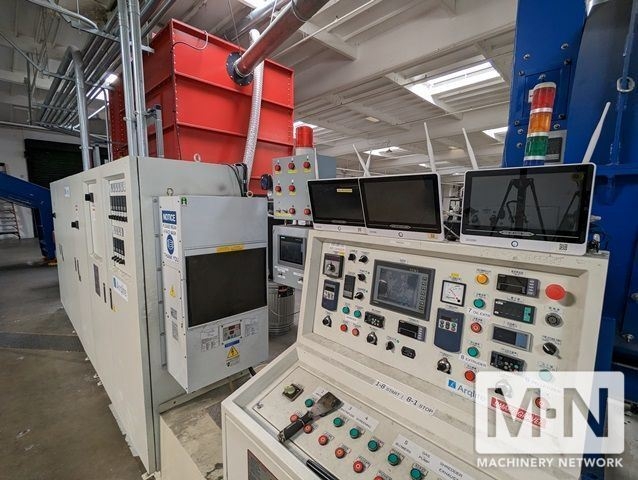

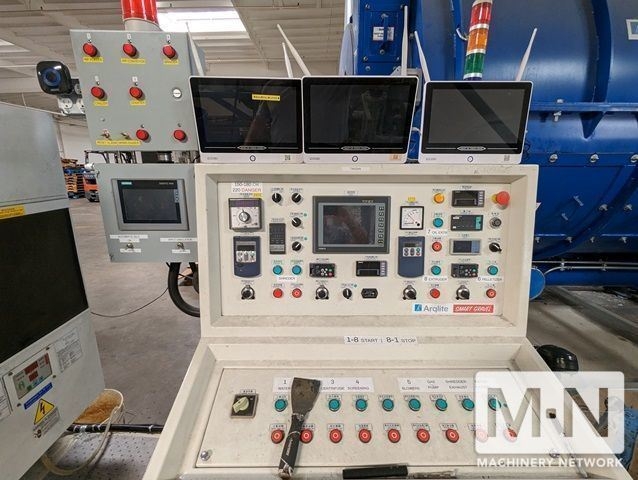

ISOLATED CONTROL PANEL ** EM-YDN160D-V 1
Type : Isolated type with complete set of high
grade electrical parts.
Temperature Control : 11 pcs. 1 for shredder,
6 for barrel, 1 for adaptor, 1 for screen changer,
1 for melt temperature and 1 for die.
METAL DETECTOR MU3-750A
Passage Width : 750m/m
Scanning Height : 400m/m
Sensitivity : FE: 4.0-5.0mm, SUS: 5.0-6.0mm
7.5HP VACUUM PUMP ADD-EQ
7.5HP PELLETS CENTRIFUGE ADD-EQ
NIP-ROLL FEEDER OPT-WDYDN160B
Driving Motor : 3HP AC motor with inverter

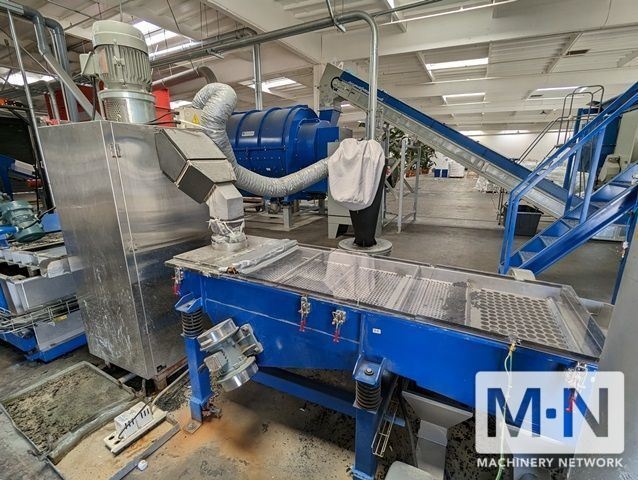

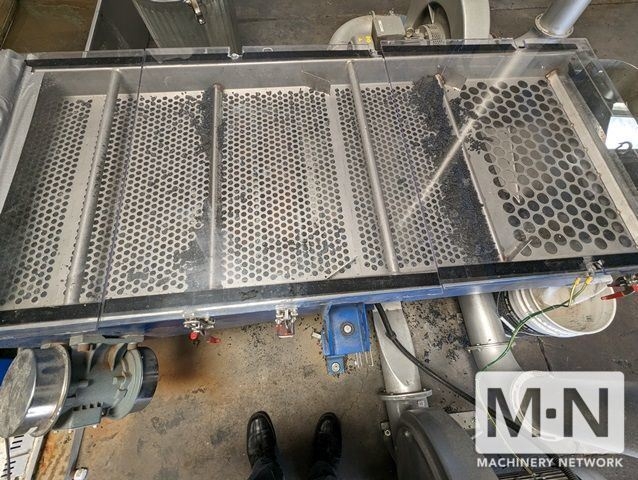

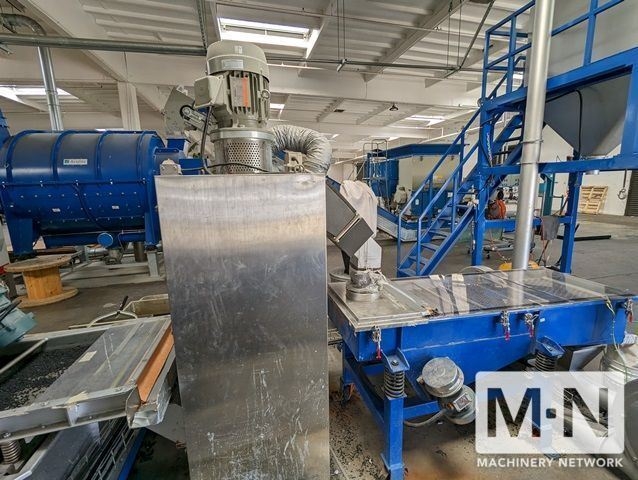

VIBRATING SCREEN SEPARATOR CY-VS500
SECOND 10HP BLOWER ADD-EQ
2ND COLLECTION TANK FOR PELLETS
Collection Drum : Made of stainless steel
CONVERT TO SIEMENS HMI+PLC ADD-EQ
AIR COOLED WATER CHILLER YT-100HE
following:
EXTRUDER EX-YDN-2V160 1
Type : Double Vented type
Gear Box : Double reduction, helical gear with
powerful thrust bearing, high torque and low
energy consumption.
Screw Diameter: 160m/m
L/D Ratio: 32/1 **
Screw Speed : 0-120rpm
Screw made of alloy steel SACM-645, polished and
nitrided.
Barrel made of alloy steel SACM-645, polished and
nitrided.
Barrel Heating Capacity : 78kw
Barrel Temperature Zone : 6 zones
Barrel Cooling : By 1/2HP air blowers x 6
350HP AC MOTOR WITH INVERTER MO-AC-350-YDN 1
Horse Power :350HP
Inverter :350HP
HYDRAULIC SCREEN CHANGER CH-160 1
Hydraulic Press : 15HP
Cylinder of Hydraulic x 2 pcs
With pressure transducer, pressure
indicator and alarm, machine will be automatically
shut off when the pressure exceeds the highest
allowable preset value.
Temperature Control Zone : 1
DIE WITH FACE CUT DIE-CUT-160 1
Type : Hot pelletizing at outlet of die face
No. of Blade to be Used : Max. 4 pcs.
Temperature Control Zone : 1 zone
Die Heating Capacity : 3.7 kw
Die Head: PE x 1 pc + PP x 1 pc **
COOLING DEVICE TU-CUT-160 1
Pelletizing Motor : 7.5Hp AC inverter motor x 1
Stainless Steel made Water Sprayer : 600m/m x
450m/m x 700m/m
SHREDDING DRUM WD-YDN-160-A 1
Type : Vertical type with temperature control
Shredding Motor: 200HP AC Motor W/Inverter x 1set*
Rotary Blade : 12 pcs on Knife holding plate
Stationary Blade : 17 pcs in drum
Shredding Drum Diameter : 1500m/m **
Cooling Blower : 10HP x 1 set **
With water spraying device for instant cooling
With sight glass
Temperature Control : 1 zone
FEEDING CONVEYOR TR-YDN-160 1
Conveyor Size : 5200m/m(L) x 670m/m(W)
Motor : 3HP
VIBRATING DRYER TU-YDN-160-A 1
Water Pump : 7-1/2HP x 1 pc.
Vibrating Motor : 1/4HP x 4 pcs
Tank Dimension : 3695m/m(L)x880m/m(W)x521m/m(H)
COLLECTION TANK FOR PELLETS CO-160 1
Blower: 10HPx1 with conveying pipe
Collection Drum : Made of stainless steel
ISOLATED CONTROL PANEL ** EM-YDN160D-V 1
Type : Isolated type with complete set of high
grade electrical parts.
Temperature Control : 11 pcs. 1 for shredder,
6 for barrel, 1 for adaptor, 1 for screen changer,
1 for melt temperature and 1 for die.
METAL DETECTOR MU3-750A
Passage Width : 750m/m
Scanning Height : 400m/m
Sensitivity : FE: 4.0-5.0mm, SUS: 5.0-6.0mm
7.5HP VACUUM PUMP ADD-EQ
7.5HP PELLETS CENTRIFUGE ADD-EQ
NIP-ROLL FEEDER OPT-WDYDN160B
Driving Motor : 3HP AC motor with inverter
VIBRATING SCREEN SEPARATOR CY-VS500
SECOND 10HP BLOWER ADD-EQ
2ND COLLECTION TANK FOR PELLETS
Collection Drum : Made of stainless steel
CONVERT TO SIEMENS HMI+PLC ADD-EQ
AIR COOLED WATER CHILLER YT-100HE
The line was processing approximately 2000 lbs/hr
