Sciaky Electron Beam Welding System 112”x102”x66”
Type:
WELDERS, ELECTRON BEAM
Manufacturer:
SCIAKY
Model:
EBW 112"x102"x66"
Condition:
Not Specified
Stock #:
41948
Status:
For Sale
Description:

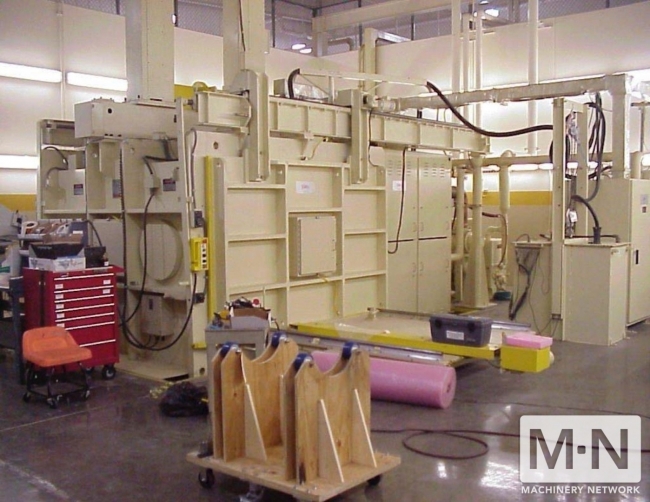

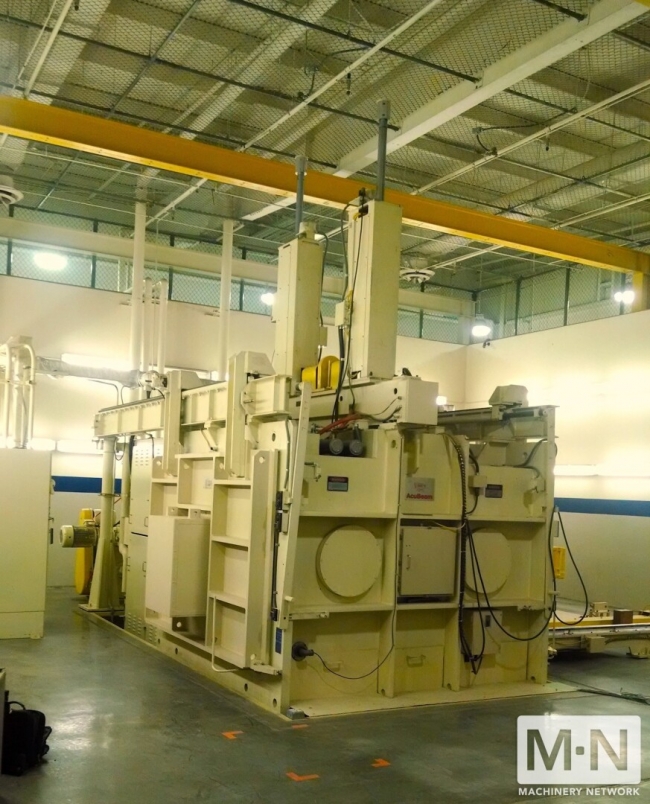

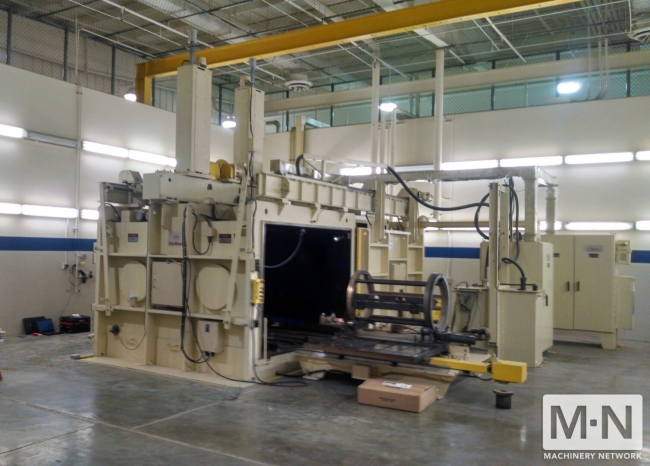

The machine is a 30KW W2000 computer-controlled hard vacuum beam welder, with an internally mounted low voltage (60KV) gun and a motorized work carriage. It provides significant advantages in energy efficiency, weld rate, part handling, motion, cycle time, and accuracy.
Attachments:
Attachment #1
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
EBW-112x102x66 Specifications:
Chamber Interior Size: 112” (2845 mm) x 102” (2591mm) x 66” (1676mm)
Gun Travels: X-Axis 86” (2184 mm), Z-Axis 30” (762 mm)
Work Table Travel: Y-Axis 46” (1168 mm)
Work Table Size: 108” (2743 mm) x 32” (813 mm) – T –Slotted

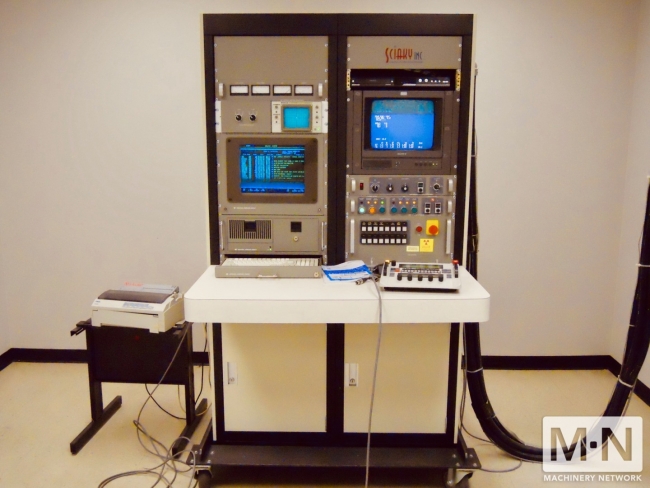

Upgrades Included: Windows WIN 7 Based Man-Machine-Interface (WMMI),
New Real-Time Processor Circuitry
Options Available:
Turnkey Install & Test Acceptance at Customer’s Site
Extension Chamber
New Rotary Headstock Assembly
New Rotary / Tilt Positioner
System Warranty
Electron Beam Additive Manufacturing (EBAM) Capability
Chamber Interior Size: 112” (2845 mm) x 102” (2591mm) x 66” (1676mm)
Gun Travels: X-Axis 86” (2184 mm), Z-Axis 30” (762 mm)
Work Table Travel: Y-Axis 46” (1168 mm)
Work Table Size: 108” (2743 mm) x 32” (813 mm) – T –Slotted
Upgrades Included: Windows WIN 7 Based Man-Machine-Interface (WMMI),
New Real-Time Processor Circuitry
Options Available:
Turnkey Install & Test Acceptance at Customer’s Site
Extension Chamber
New Rotary Headstock Assembly
New Rotary / Tilt Positioner
System Warranty
Electron Beam Additive Manufacturing (EBAM) Capability
