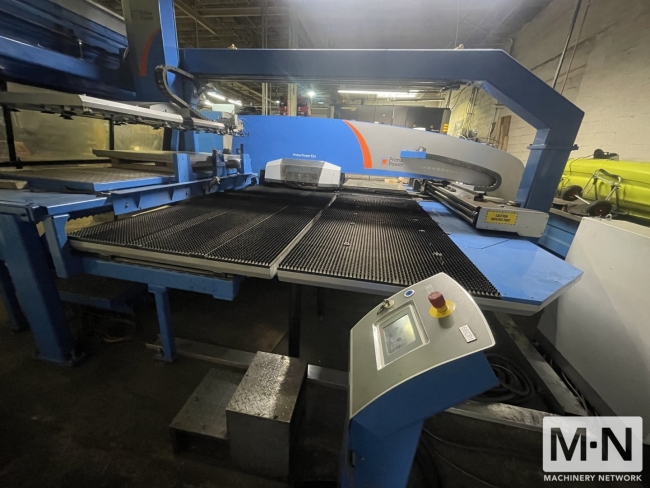

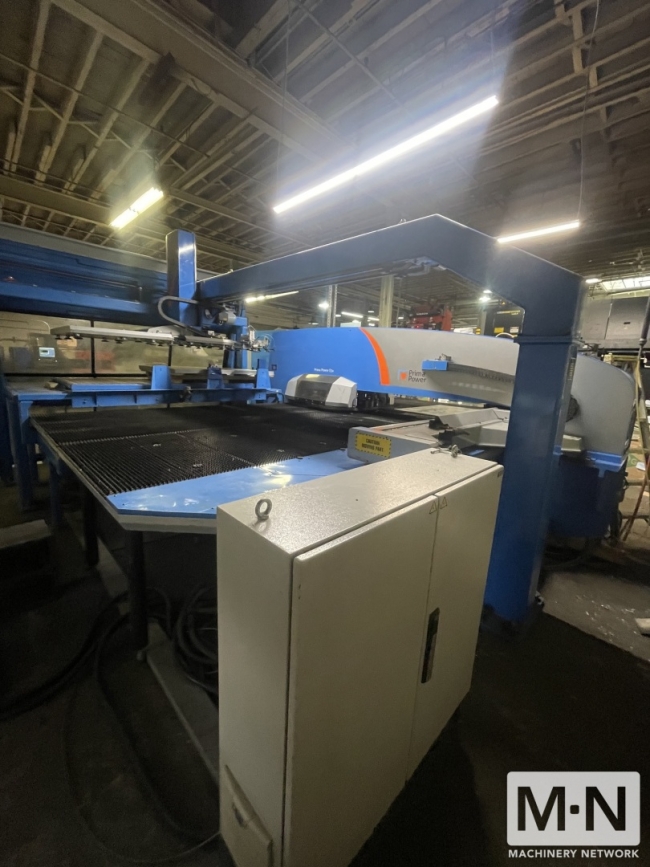

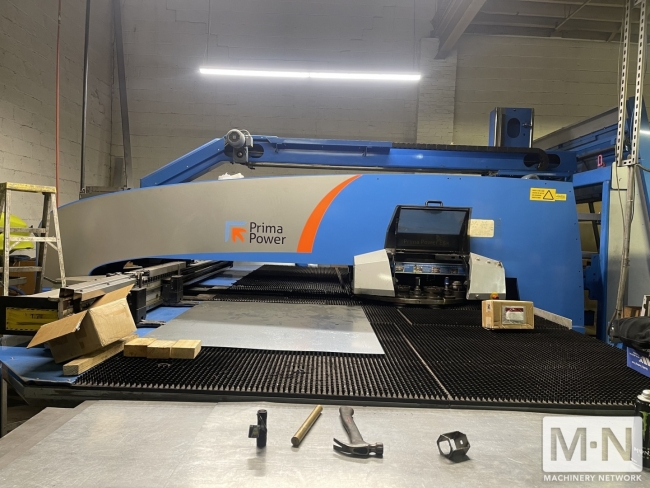

PRIMA POWER E5X W/COMPACT LOADER

Type:

PUNCHES, FABRICATING, N/C & CNC

Manufacturer:

PRIMA POWER

Model:

E5X

Condition:

Not Specified

Year:

2012

Stock #:

41934

Status:

For Sale

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

THE DEPTH OF THE STROKE DURING MOLDING — PROGRAMMABLE IN INCREMENTS OF 0. 001 MM
- FORMING STROKE LENGTH-PROGRAMMABLE IN 0. 001 MM INCREMENTS
- DEVIATION OF THE DISTANCE BETWEEN THE CENTERS OF THE HOLES (X/Y AXES), MAX. - ±0. 05 MM
- THE SPEED OF THE GUN IS 30 RAD/MIN
- THE TOOL CHANGE TIME IS 1-3 SECONDS
- TOOL ROTATION SPEED, MAX. — 58 RAD/MIN.
- TOP FORMING FORCE-200 KN
- THE HEIGHT OF THE DIE STROKE DURING FORMING IS PROGRAMMABLE WITH INCREMENTS OF 0. 001 MM (MAX. 12 MM)
- SHEET SIZE, MAX. (X/Y) - 2530/1270 MM
- SHEET WEIGHT, MAX. - 200 KG
QUALITATIVE MACHINE BENEFITS:
- PUNCHING — ELECTRIC SERVO MOTOR
- TOOL — THICK TURRET
- SHEET CLAMPS: PNEUMATIC
- AXIS SPEED (X-AXIS), MAX. - 80 M / MIN
- AXIS SPEED (Y-AXIS), MAX. - 60 M / MIN
- TRAVEL SPEED, MAX. — 100 M/MIN
- CUTTING WITH SCISSORS (1... 3 MM) - 480 MIN-1
- 25 MM BETWEEN THE HOLES — 310 MIN–1
- 250 MM BETWEEN THE HOLES — 140 MIN–1
- HOLE CENTER DEVIATION (X/Y AXIS), MAX. - 0. 1 MM

Machine has never run anything but 1 job from 24Ga Galvanized

Equipped With

AUTO INDEX

MULTI TOOLS

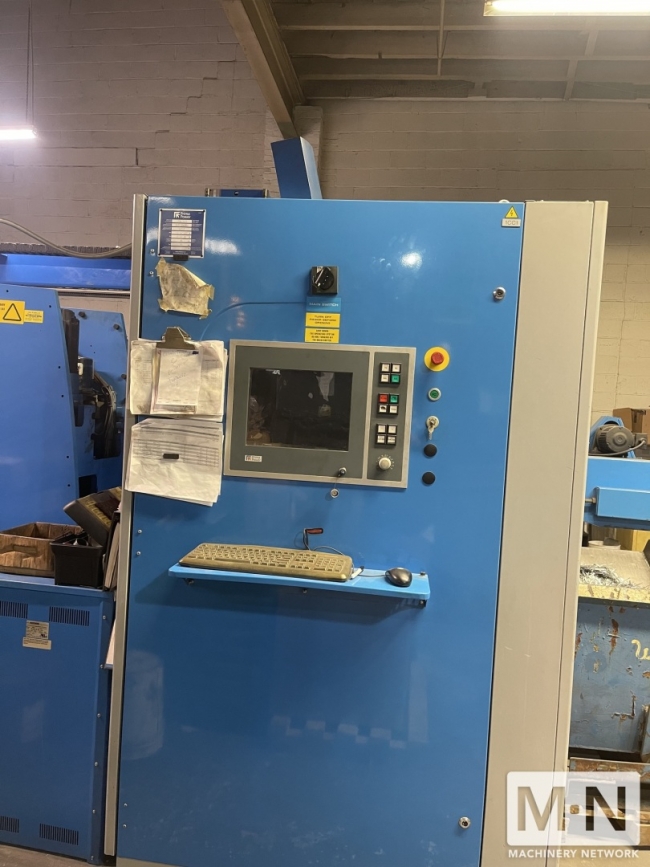

SIEMENS SINUMERIK 840D CONTROLS

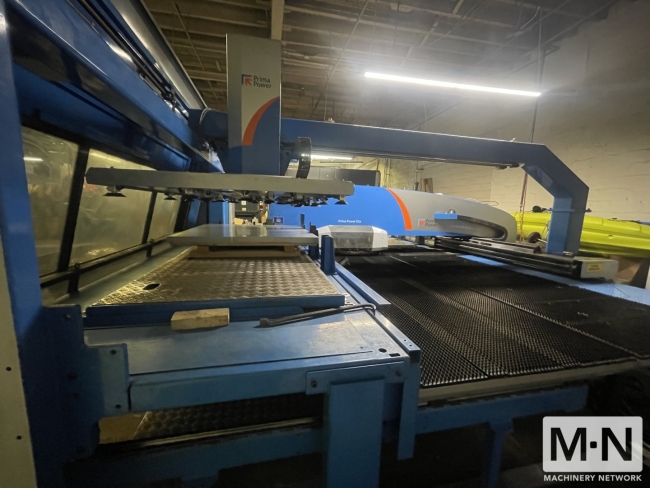

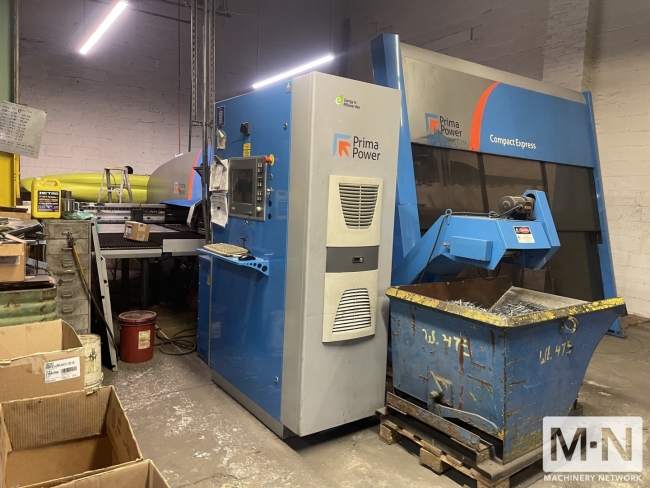

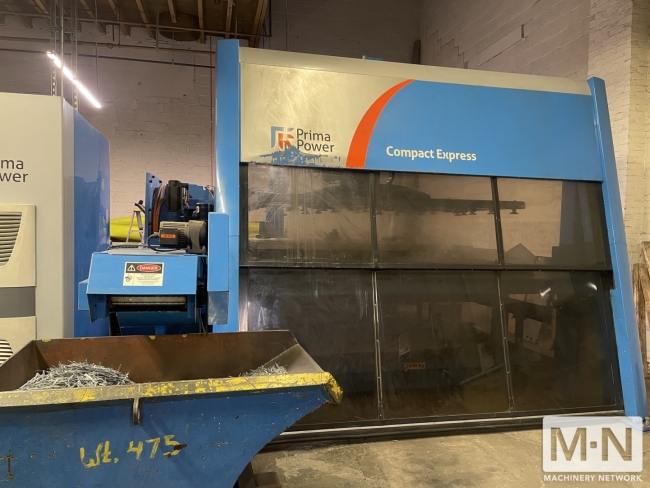

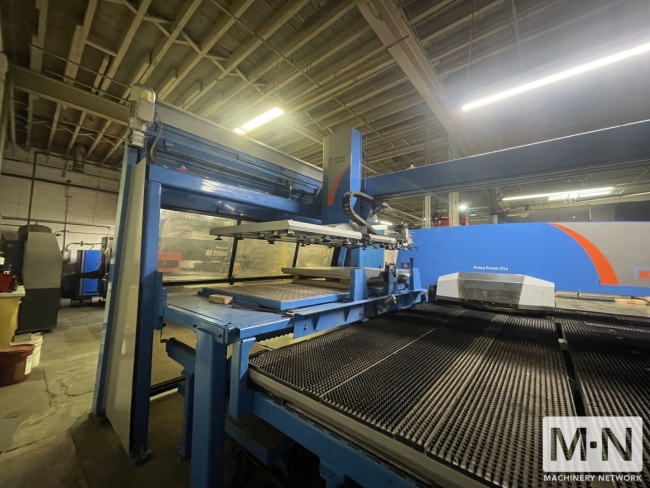

COMPACT LOADER

TULUS CELL SOFTWARE
