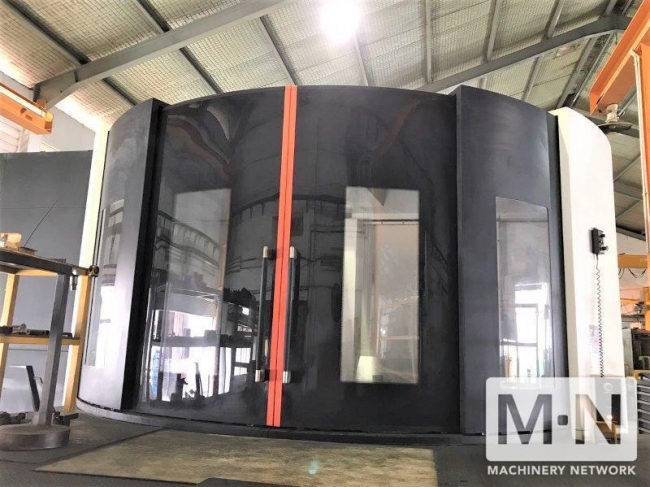

Mazak Integrex E-Ramtec V/10 CNC 5-Axis Vertical Machining Center

Type:

Vertical Machining Centers (5-Axis or More)

Manufacturer:

MAZAK

Model:

INTEGREX E-RAMTEC V/10

Condition:

Not Specified

Year:

2013

Stock #:

41353

Status:

For Sale

Description:

Mazatrol Matrix 2 5-Axis Control, ONLY 2500 Hours, CAT-50,

Videos:

Product Video #1

Attachments:

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

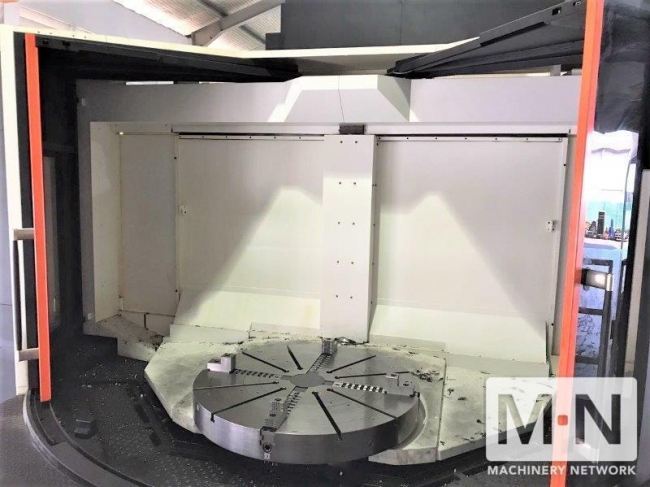

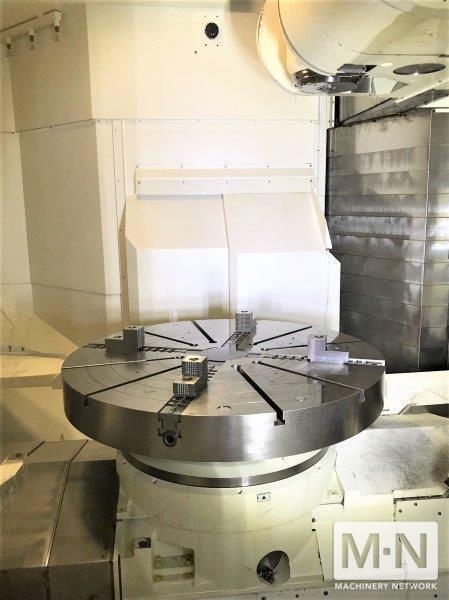

AUTOMATIC PALLET CHANGER (2) PALLETS 55"
PALLET CHANGER SYSTEM ROTARY TYPE
PALLET {TURNING SPINDLE 300 RPM
PALLET LOAD CAPACITY 11,023 LBS
PALLET CHANGER TIME 25 SEC.
MAX WORKPIECE DIAMETER 78.74"
MAX WORKPIECE HEIGHT 56.69"
X-AXIS STROKE (LONGITUDINAL TABLE MOVEMENT) 73.82"
LESS THAN WORKPIECE DIAMETER 66.93"
67.91" WORKPIECE DIAMETER 66.93" OR LARGER
Y-AXIS STROKE ( CROSSWISE SPINDLE MOVEMENT 41.73"
Z-AXIS STROKE ( VERTICAL SPINDLE MOVEMENT) 57.09"
W-AXIS STROKE (RAM SPINDLE MOVEMENT) 35.43"
RAPID TRAVERSE X/Y/Z 1654/1181 IPM
B/C TRAVEL 150/360 DEG.
DISTANCE FROM THE CENTER OF B-AXIS ROTATION TO THE CENTER OF PALLET
X-AXIS ZERO POINT 64.96"
X-AXIS MINUS STROKE END 8.86"
LESS THAN WORKPIECE DIAMETER 66.93"
2.95" WORKPIECE DIAMETER 66.93" OR LARGER
DISTANCE FROM THE SPINDLE NOSE TO THE CENTER OF PALLET B-AXIS = +90 DEG.
X-AXIS ZERO POINT 53.15"
DISTANCE DROM THE CENTER OF B-AXIS ROTATION TO THE TOP SURFACE OF PALLET
3.94" TO 61.02"
DISTANCE FROM THE SPINDLE NOSE TO THE TOP SURFACE OF PALLET B-AXIS=0 DEG.
-7.87 TP 49.21"
MILL SPINDLE NOSE TYPE 7/24 TAPER, NO. 50
MILL SPINDLE SPEED 25 TO 10,000 RPM
NUMBER OF MILL SPINDLE SPEED CHANGE RANGES 2 STEPS (ELECTRIC)
I.D. OF MILL SPINDLE BEARING 3.94"
MILL SPINDLE DRIVE MOTOR AC INVERTER MOTOR 50 HP
RAM SPINDLE NOSE TYPE HSK-63
RAM TOOL STORAGE CAPACITY {RAM SPINDLE 40
RAM SPINDLE SPEED 3,000 RPM
RAM SPINDLE DRIVE MOTOR (AC INVERTER MOTOR) 10 HP
MACHINE DIMENSIONS 260" X 385" X 205" TALL
MACHINE WEIGHT 127,000 LBS

General Specifications:

Number of Pallets

Working Surface

X-Axis

Y-Axis

Z-Axis

W-Axis

# Axis

Spindle Motor

Spindle Speed

ATC Capacity

Taper

Table Load Capacity

Equipped With

ONLY 2500 Hours

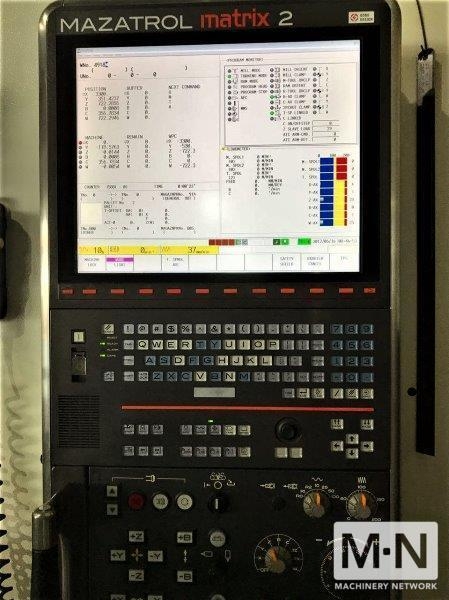

Mazatrol Matrix 2 5-Axis Control

EIA

High Smoothing Control

Spiral

EIA 3D Comp.

Rotation, Geometric

Scaling

EXT-Data I/O

High-Speed

Shape Comp.

Thread, Dynamic Comp.

3D

Co-or Rot.

Auto TLM

Polar Coordinates

Comparison Stop

Sync. Cont.

Spline

G65.1

Spline

Sync. Mill Tapping

Inch/mm Convert. Cylinder

Simultaneous 5-Axis

EIA-Helical Tap Cycle

EIA-Pattern Cycle

Tilted Working

Table Unbalance Detect

5-Axis Tool Comp.

Auto Pecking

Tool Center-Point

Thread Start Point Comp.

Re-Thread

Program memory Expansion

Mill-Turning Mazatrol,Thread Cut-Speed Override

5-Axis Spline

120 Position Automatic Tool Changer

Chip Conveyor

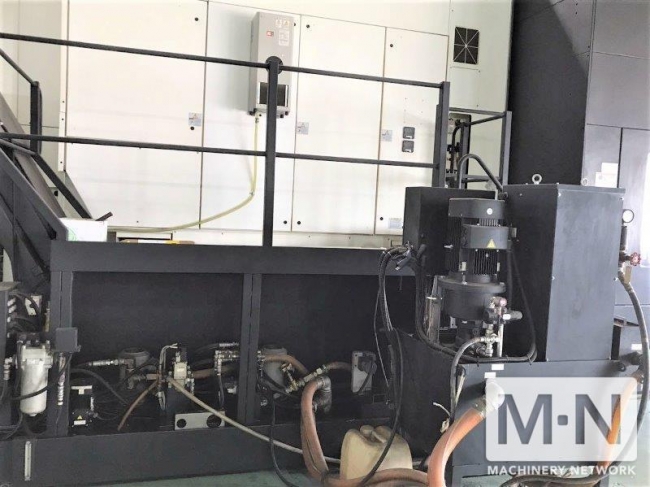

Coolant System. Laser Part Probing System
