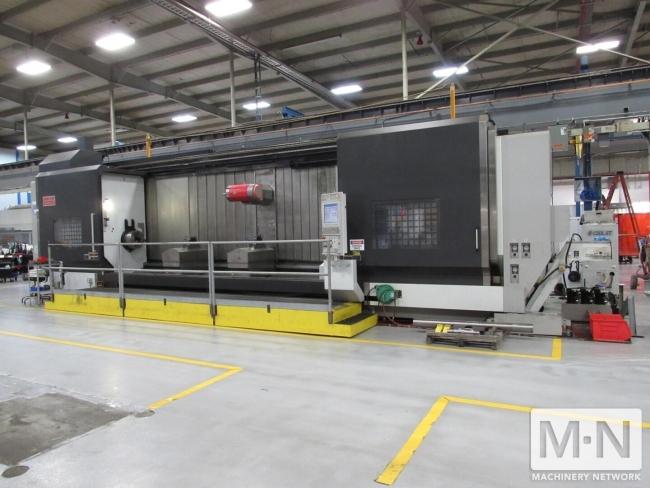

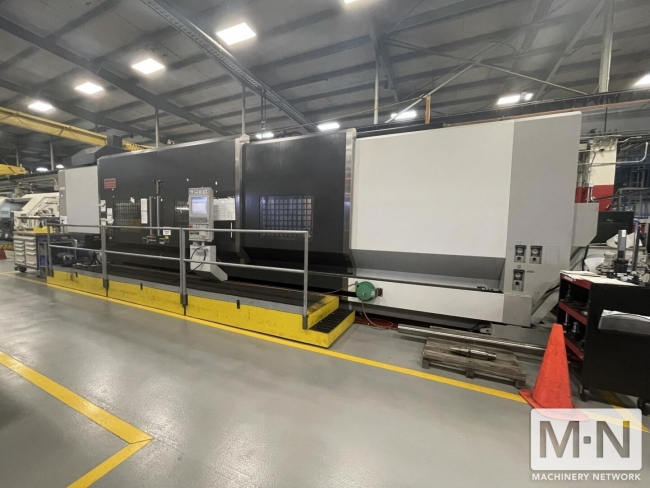

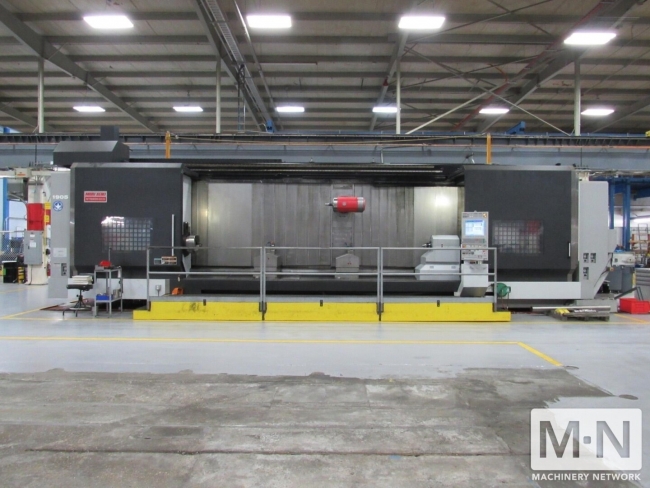

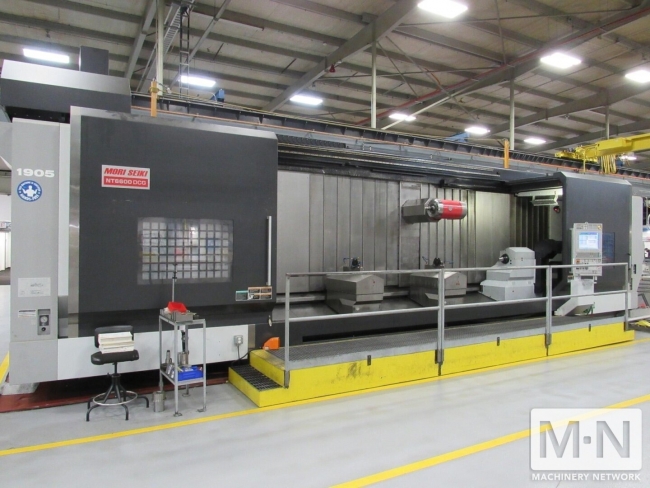

Mori Seiki NT6600 DCG/600B CNC Integrated Mill Turn Center, New 2012
Type:
LATHES, TURNING, N/C & CNC
Manufacturer:
MORI SEIKI
Model:
NT 6600 DCG/6000B
Condition:
Used - Excellent
Year:
2012
Stock #:
41128
Status:
For Sale
Description:
NT6600 DCG with FS-31iA5 CNC CONTROL, LIVE MILLING, 140 ATC
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP

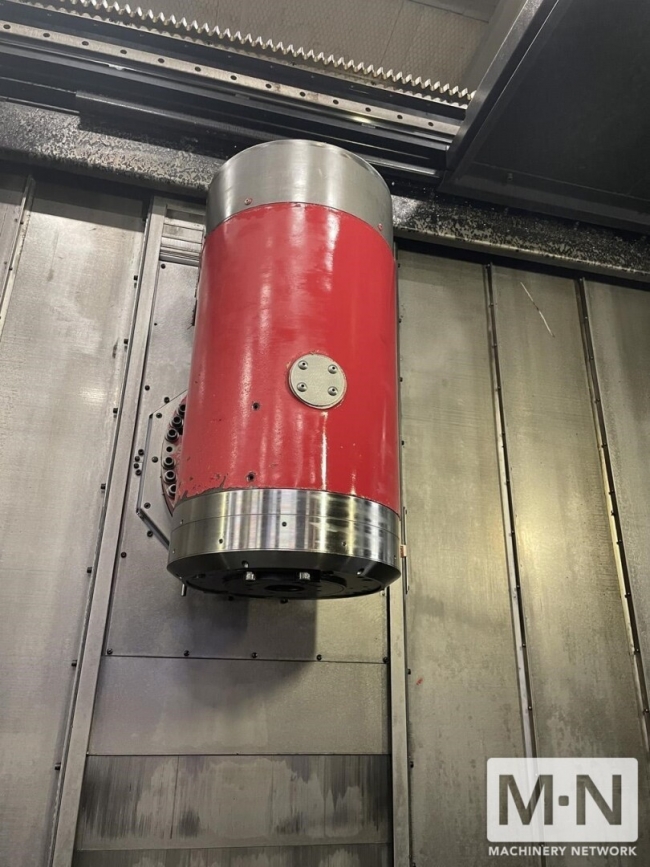

MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING

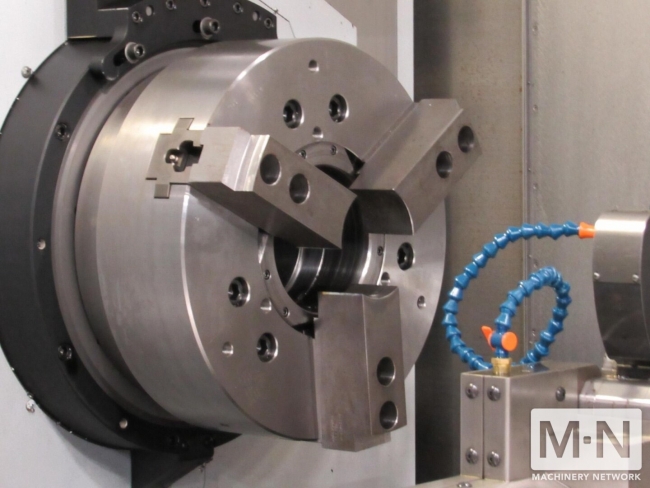

20" CHUCK

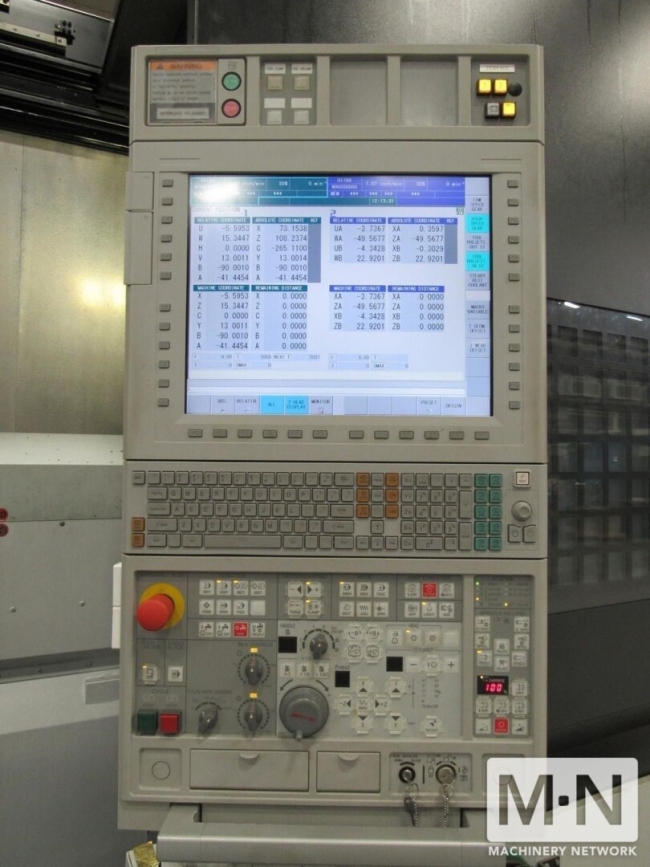

FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER

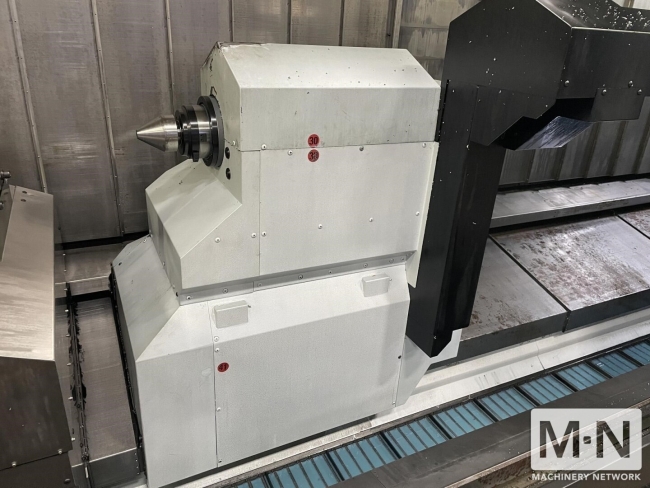

PROGRAMMABLE TAILSTOCK

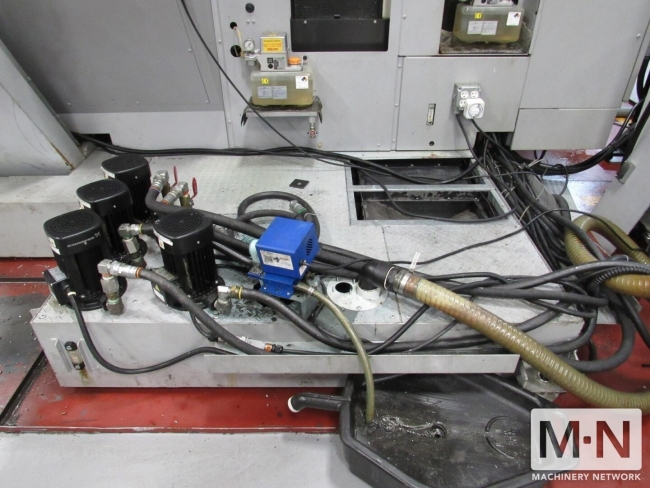

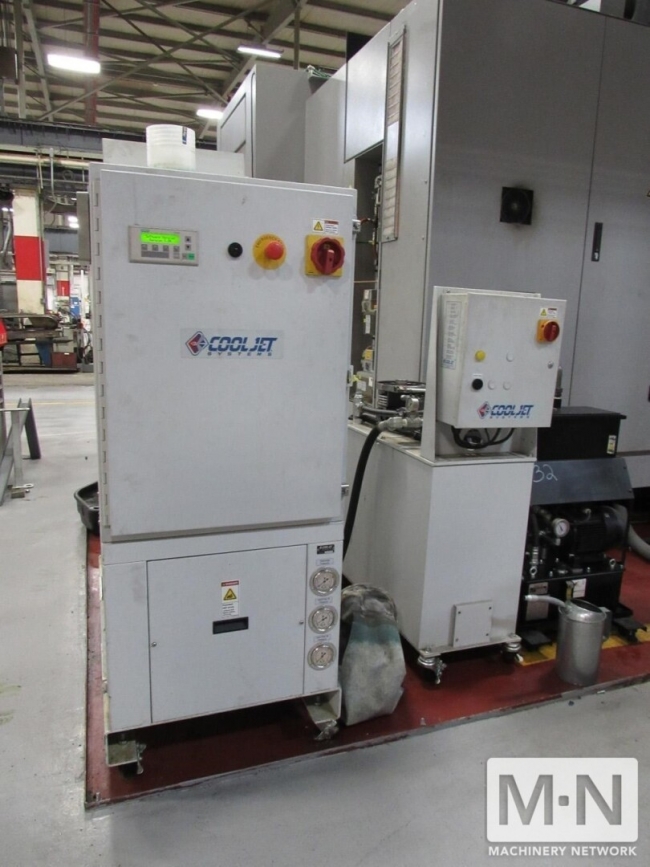

COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
MAXIMUM WORK PIECE DIAMETER: 42"
MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"
X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM
MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP
ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS
YAXIS
B AXIS
LIVE TOOLING/MILLING
20" CHUCK
FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK
COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR
Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control
Machine Options:
Tool Presetter
Automatic Tool Length Measurement System
Additional Machine Specs:
Capto C8 Spindle
Full B-Axis
Right Hinge-Type Chip Conveyor

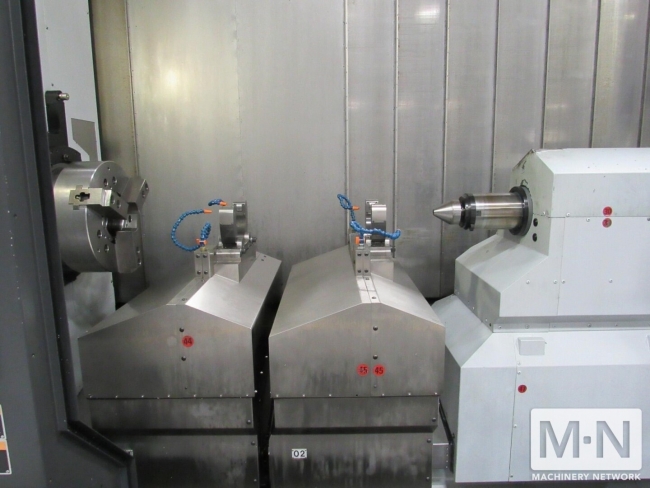

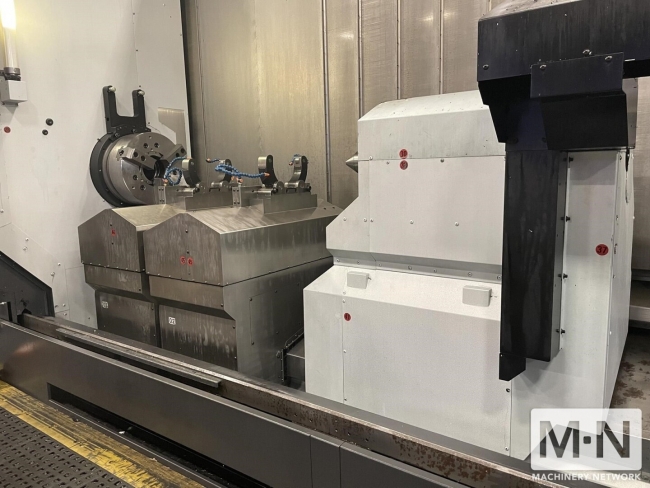

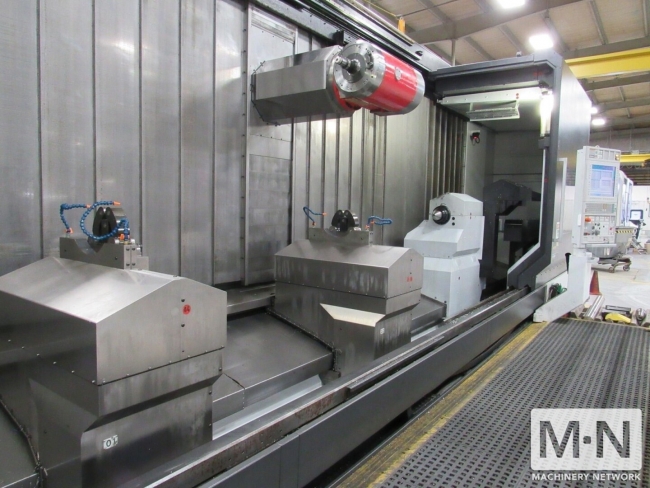

(2) Programmable Automatic Steady Rests
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor
